20

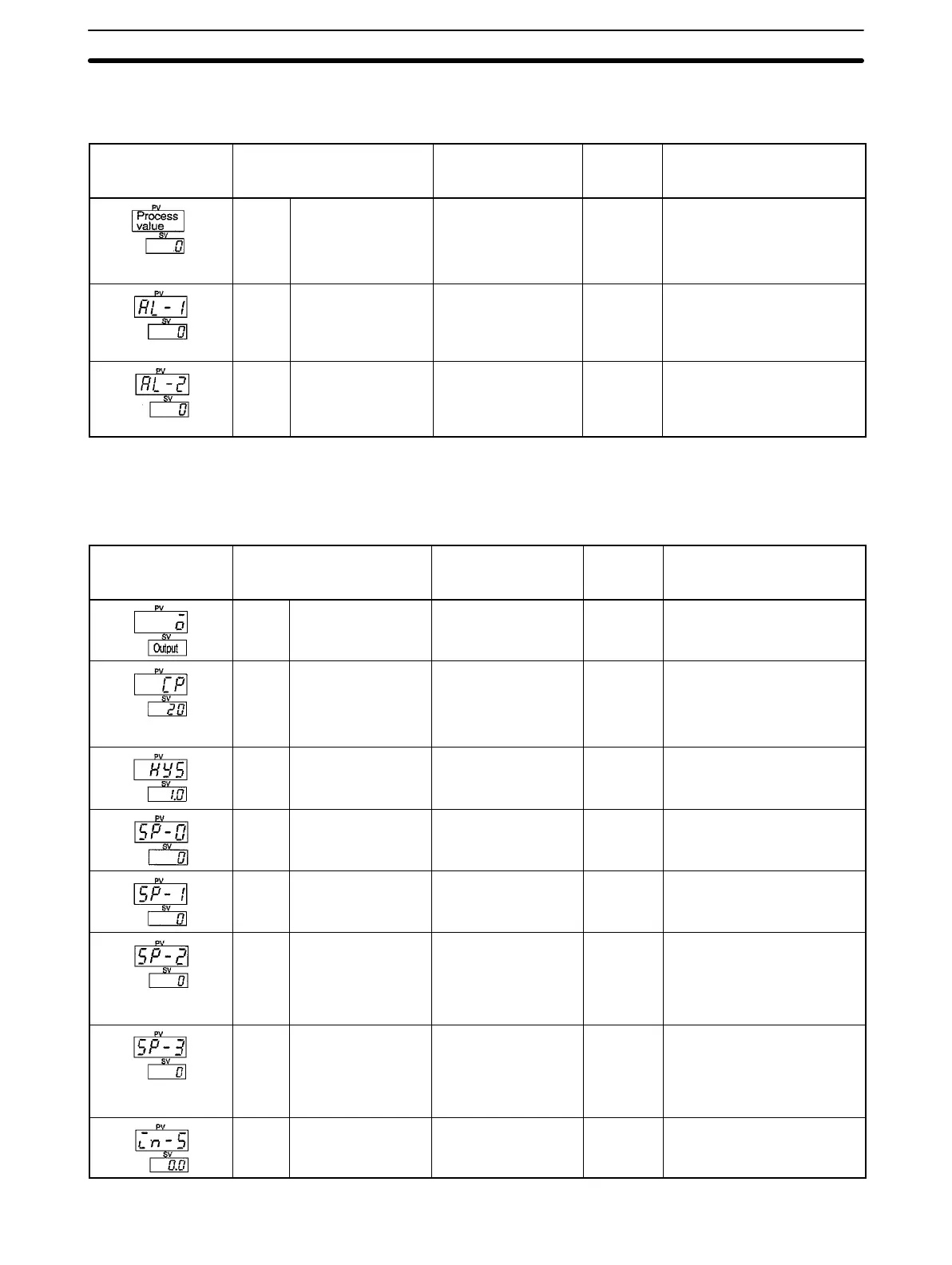

3-3 List of Parameters
Display Level 0
Display Name Setting range Setting
before
shipping
Remarks
--- Process value
display and set
point setting
Set point lower limit
to set point upper
limit (°C/°F)
0 The present set point is
displayed and can be
changed if the E5J
incorporates an event input
function
AL-1 Alarm set value 1 –1999 to 9999 °C/°F
The decimal position
varies with the kind
of input.
0 Not displayed if alarm mode
switch 1 is set to 0.
AL-2 Alarm set value 2 –1999 to 9999 °C/°F
The decimal position
varies with the kind
of input.
0 Not displayed if alarm mode
switch 2 is set to 0.
To go to the next level, press the Level Key for 1 s min.
Note The values shown in Fahrenheit are applicable only for E5J--F Mod-
els.
Display Level 1
Display Name Setting/Display
Range
Setting
before
shipping
Remarks
0 Output value
display
0.0 to 100.0 %
CP Control period 1 to 99 s 20 Displayed and can be set if
the E5J in PID control
operation has relay control
output or voltage control
output.
HYS Hysteresis 0.1 to 999.9 °C/°F 1.0 (1.8) Displayed and can be set
when the E5J is in ON/OFF
control operation.
SP-0 Set point 0 Set point lower limit
to set point upper
limit (°C/°F)
0 For models incorporating an
event input function.
SP-1 Set point 1 Set point lower limit
to set point upper
limit (°C/°F)
0 For models incorporating an
event input function.
SP-2 Set point 2 Set point lower limit
to set point upper
limit (°C/°F)
0 For models incorporating an
event input 2 function.
Displayed and can be set if
the default value is changed
on the engineering level.
SP-3 Set point 3 Set point lower limit
to set point upper
limit (°C/°F)
0 For models incorporating an
event input 2 function.
Displayed and can be set if
the default value is changed
on the engineering level.
in-S Input shift value –199.9 to 999.9 °C/°F 0.0 Displayed and can be set if
the default value is changed
on the engineering level.
List of Parameters
Section 3-3
