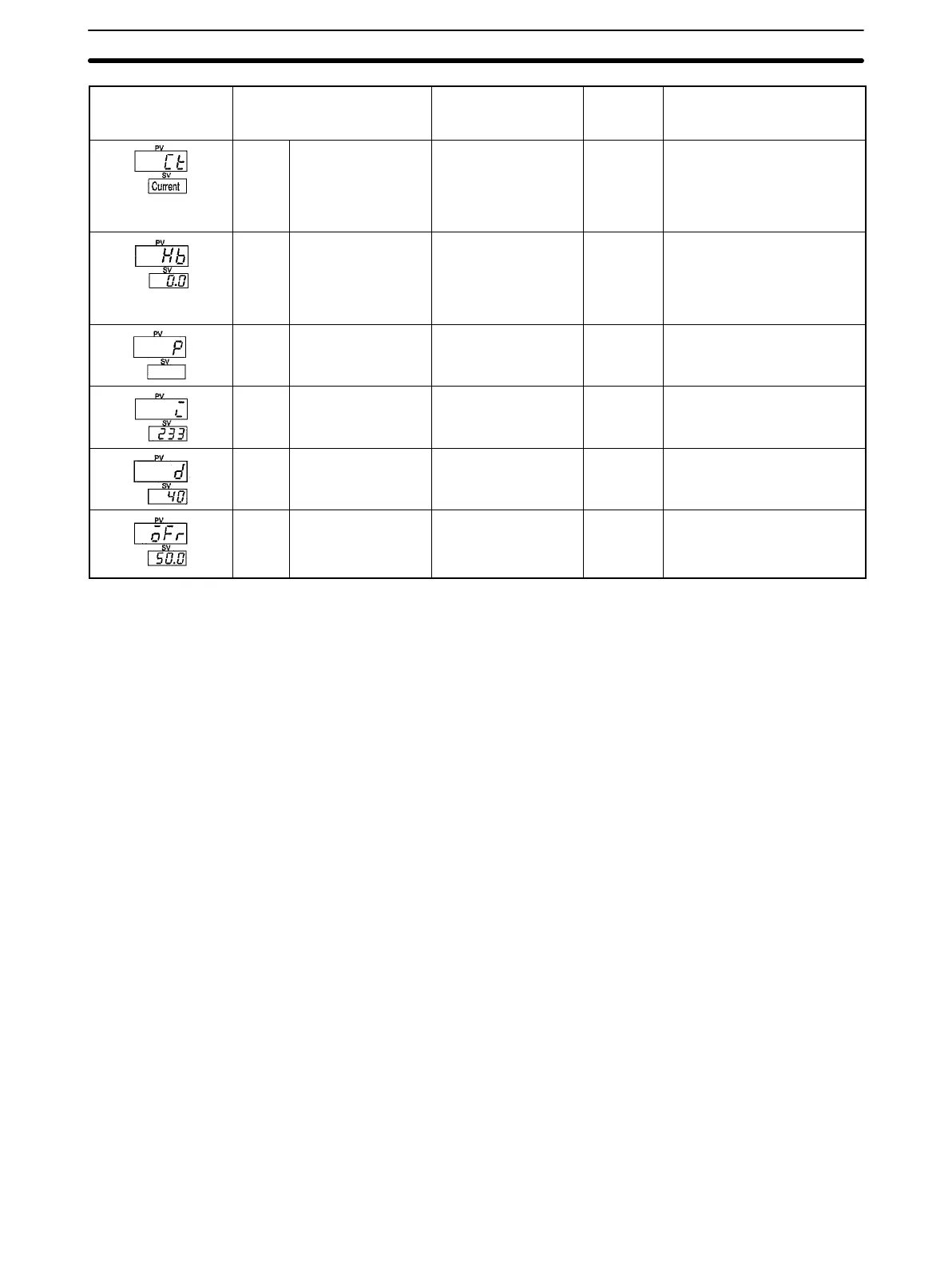

Display RemarksSetting
before
shipping
Setting/Display
Range
Name
Ct Heater current
value display
0.0 to 55.0 A
If the current exceeds
55.0 A, ffff will be
displayed on the set
value display.
For models incorporating a
heater burnout alarm.
Nothing is displayed if the
E5J has current control
output.
Hb Heater burnout
alarm value
0.0 to 50.0 A
0.0: Always OFF
50.0: Always ON
0.0 For models incorporating a
heater burnout alarm.
Nothing is displayed if the
E5J has current control
output.
8.0
P Proportional band 0.1 to 999.9 °C/°F 8.0 (14.4) Displayed and can be set
when the E5J is in
advanced PID operation.
i Integral time 0 to 3999 s
0: No integral
operation
233 Displayed and can be set
when the E5J is in
advanced PID operation.
d Derivative time 0 to 3999 s
0: No derivative
operation
40 Displayed and can be set
when the E5J is in
advanced PID operation.
oFr Manual reset value 0.0 to 100.0 % 50.0 Displayed and can be set if
the integral time is set to 0
when the E5J is in
advanced PID operation.
Note The value in the parentheses is the E5J--F setting before shipping.
List of Parameters
Section 3-3
