5-1 Installation
Install the E5J in the following places.
1, 2, 3...
1. Where there is little mechanical vibration or shock.
2. Where there is no corrosive gas such as sulfide gas.
3. Where the ambient temperature is within –10° to 55°C.
4. Where there is no high heat radiation.
5. Where there is no high tension lines, welding machines or other devices
generating electrical noise.
6. Where the E5J is not influenced by any electromagnetic field.
7. Where there is little dust or oily smoke.
8. Where the E5J is not sprayed with water.
5-1-1 Dimensions and Mounting Holes
Refer to the
Appendix Dimensions and Mounting Holes
.
5-1-2 Mounting Method

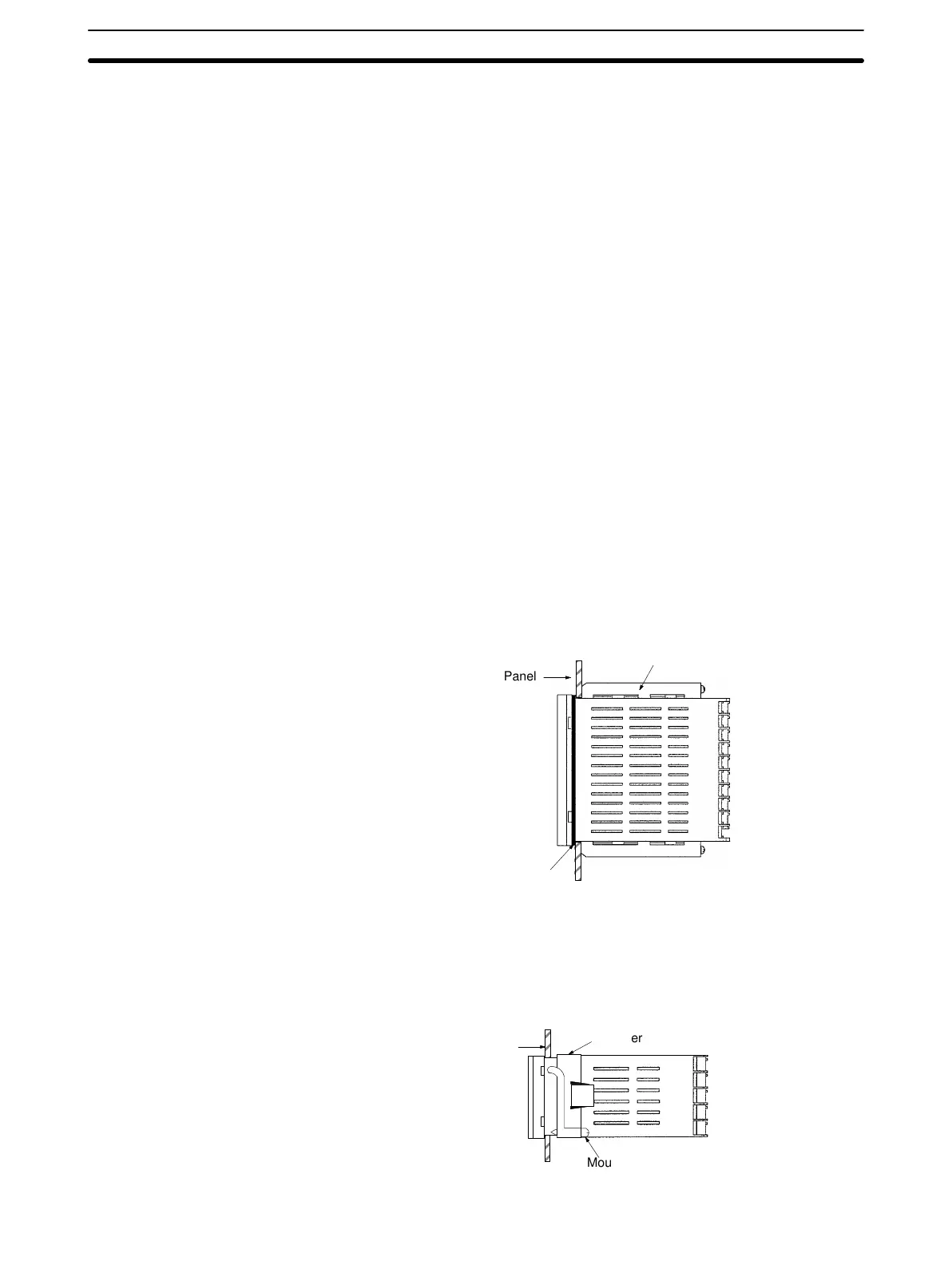

E5AJ and E5EJ Open a square hole in the panel to which the E5J is to be mounted, mount the
E5J, attach the two mounting brackets provided with the E5J to the upper
and lower sides of the E5J, and secure them with a Phillips screwdriver by
turning the Phillips screwdriver clockwise until the ratchets of the mounting
brackets click.
Panel
Mounting bracket
Watertight packing
E5CJ Open a square hole in the panel to which the E5CJ is to be mounted, mount the
E5CJ, attach the adapter provided with the E5CJ as shown in the following il-
lustration to reduce the space between the E5CJ and panel, and secure the
adapter with the tightening screw.
Adapter
Mounting screw
Panel
Installation Section 5-1
