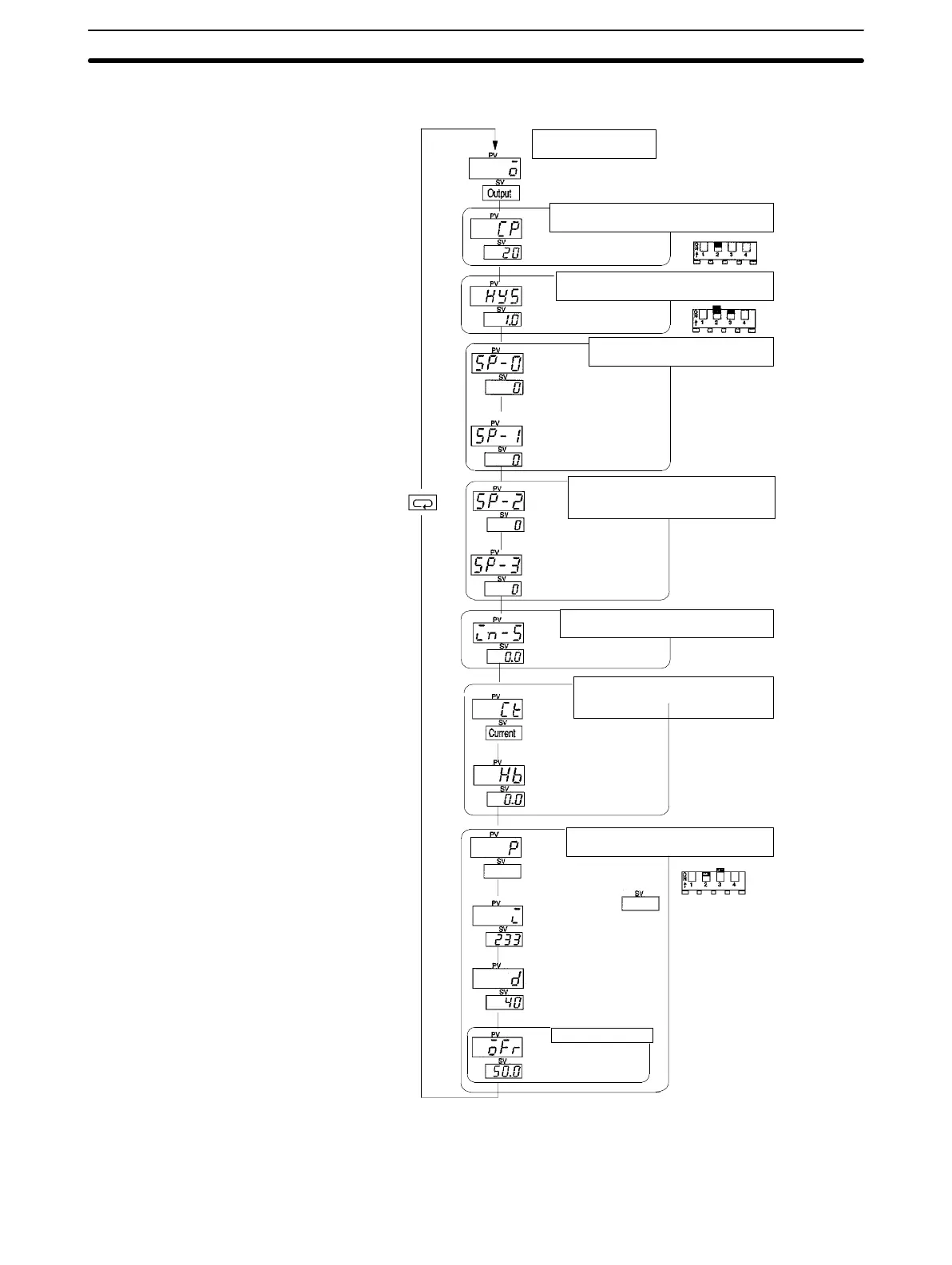

3-5 Parameters on Display Level 1
The value set before
shipping appears
(Output value display)
(Control period setting)
(Hysteresis setting)
Displays if the E5J has an
event input.
Displays when the E5J in PID control
operation has a relay or voltage output.
Displays when the E5J is in ON/
OFF control operation.
(Set point 0 setting)
(Set point 1 setting)
Displays only if the event input 2
function is used for set point selec-
tion (see note 1).
(Set point 2 setting)
(Set point 3 setting)
Displays if the input shift value dis-
play is selected (see note 1).
(Input shift value setting)
Displays if the heater burnout
alarm function is selected. (see
note 2).
(Heater current value
display)
(Heater burnout alarm
value setting)
Displays when the E5J in ad-
vanced PID operation.
(Proportional
band setting)*
(Integral time setting)
(Derivative time setting)
Displays if I is 0.
(Manual reset value
setting)
8.0
*In case of °F:
14.4
Note 1. Displayed if the initial value is changed on the engineering level.
2. Not displayed if current output is used as control output or a model with no
heater burnout alarm function is used.
Parameters on Display Level 1
Section 3-5
