2
1-1 Features
The basic features of the Thermac E5J Temperature Controller are outlined
below.
Fuzzy Self-tuning When using a conventional temperature controller for ideal temperature control,
it is necessary to adjust the PID constants of the temperature controller accord-
ing to the controlled device. The Thermac E5J Temperature Controller incor-
porates a fuzzy self-tuning function, thus allowing ideal temperature control
without any adjustment of the PID constants. The user needs only to set the
E5J to the desired temperature for ideal temperature control.
Auto-tuning Auto-tuning is also available. It is useful when appropriate results are not
obtained through fuzzy self-tuning. (Refer to
Section 10 Auto-tuning .)
Event Input Function It is possible to select a set point out of a maximum of two set values on the
E5CJ-B and four set values on the E5AJ-B via their event input terminals
from the PCs connected to these Temperature Controllers. The control opera-
tion of the E5AJ-B via can be stopped with an event input signal.
Watertight Construction The E5J can be used in places where water is sprayed onto the E5J, be-
cause the front panel of the E5J assures IP54 when the E5J is panel-
mounted (except for front panel of the E5CJ, which assures IP50). If greater wa-
tertightness is required, use the Y92A-N, a dedicated watertight cover (sold
separately).
The E5J incorporates an advanced PID function, which is also incorporated by
the Thermac X Temperature Controller. The advanced PID function prevents
temperature overshooting the moment the Temperature Controller starts oper-
ating, assures a short startup time, and performs ideal temperature control by
quickly responding to external disturbances.
Output Units The E53-R Relay Unit, E53-Q, E53-Q3, and E53-Q4 Voltage Output Units for
driving SSRs, and E53-C3, E53-C3D, E53-V34, and E53-V35 Linear Output
Unit can be connected to any E5J Temperature Controller (except the E5CJ)
with ease according to the desired output configuration and application.

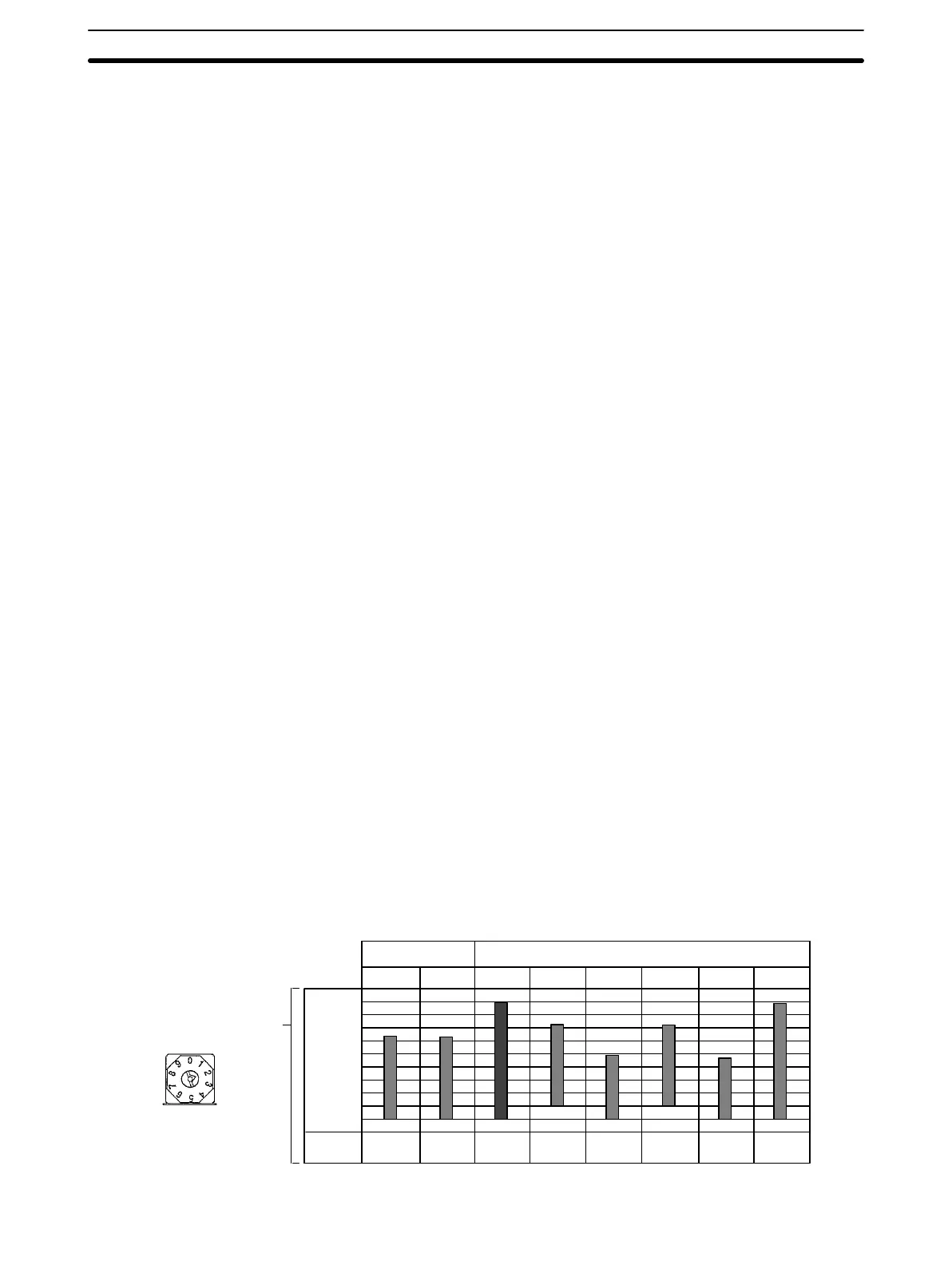

1-2 Models
The thermocouples and platinum resistance thermometers listed in the follow-
ing table can be connected to any Thermac E5J Temperature Controller.
Input
Selectable
internally.
Platinum resistance
thermometer
Thermocouple
1300
1000
800
600
400
200
100
0
–100
–200
JPt100
KJ T L U N
Pt100
650.0
1300
400.0
–100
–199.9 –200
650.0
1300
400.0
850
850
–200–199.9 –199.9 –199.9
–100
Factory-set to 2 (K)
Temperature
range (°C)
INPUT
Setting
no.
0.8 1.9 2 3 4 5 6 7
Advanced PID
Models
Section 1-2
