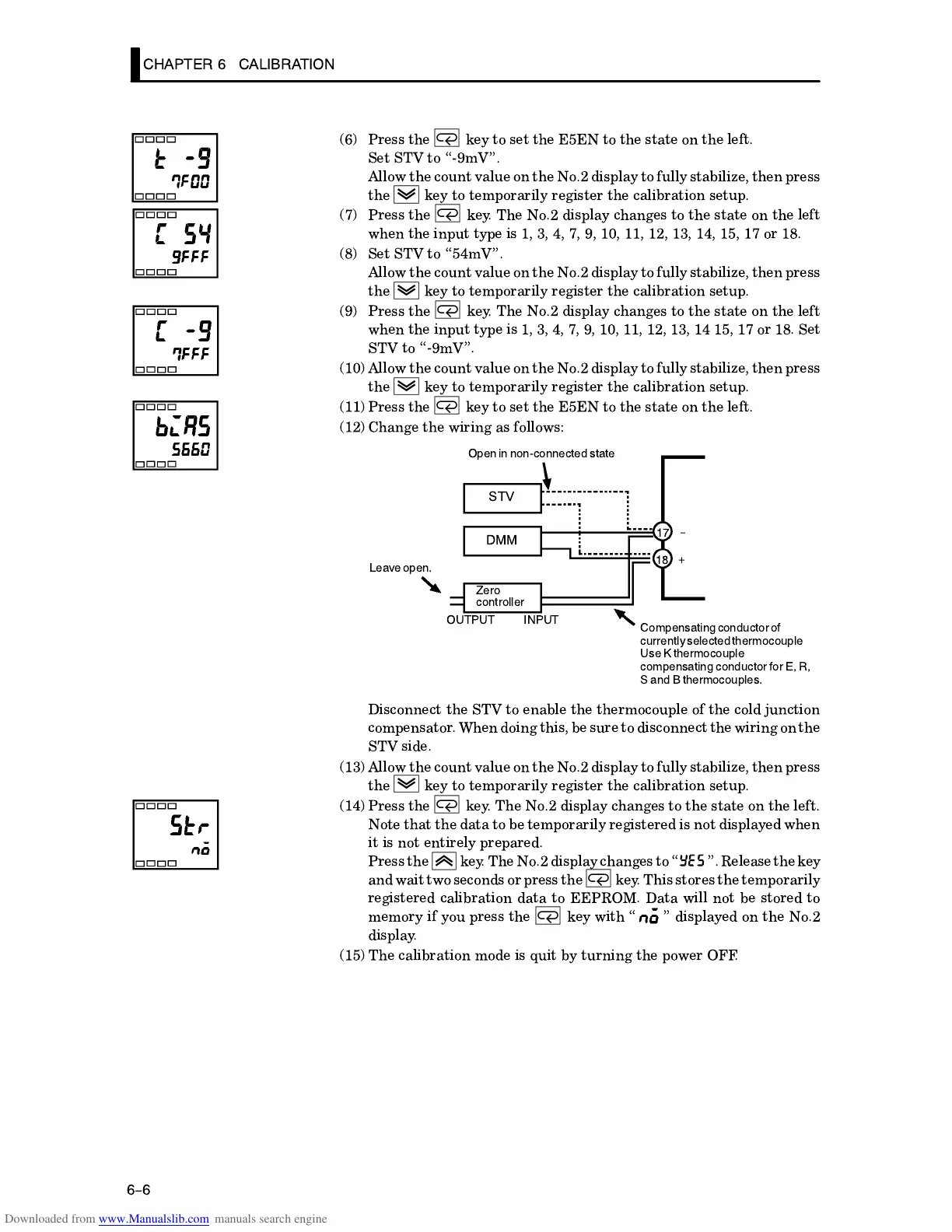

CHAPTER 6 CALIBRATION
6-6
(6) Press the key to set the E5EN to the state on the left.
Set STV to Ć9mV".
Allow the count value on the No.2 display to fully stabilize, then press
the key to temporarily register the calibration setup.
(7) Press the
key. The No.2 display changes to the state on the left
when the input type is 1, 3, 4, 7, 9, 10, 11, 12, 13, 14, 15, 17 or 18.
(8) Set STV to 54mV".
Allow the count value on the No.2 display to fully stabilize, then press
the
key to temporarily register the calibration setup.
(9) Press the key. The No.2 display changes to the state on the left
when the input type is 1, 3, 4, 7, 9, 10, 11, 12, 13, 14 15, 17 or 18. Set
STV to Ć9mV".
(10) Allow the count value on the No.2 display to fully stabilize, then press
the key to temporarily register the calibration setup.
(11) Press the key to set the E5EN to the state on the left.
(12) Change the wiring as follows:
Openin nonĆconnected state
Leaveopen.
Compensatingconductor of
currentlyselectedthermocouple
Use K thermocouple
compensating conductor for E, R,
S and B thermocouples.
Zero
controller
STV
DMM
OUTPUT INPUT
17
18
-
+
Disconnect the STV to enable the thermocouple of the cold junction
compensator. When doing this, be sure to disconnect the wiring onthe
STV side.
(13) Allow the count value on the No.2 display to fully stabilize, then press
the key to temporarily register the calibration setup.
(14) Press the key. The No.2 display changes to the state on the left.
Note that the data to be temporarily registered is not displayed when
it is not entirely prepared.
Pressthe key. The No.2 display changes to ".Releasethekey
and wait two seconds or press the key. This stores the temporarily
registered calibration data to EEPROM. Data will not be stored to
memory if you press the key with " displayed on the No.2
display.
(15) The calibration mode is quit by turning the power OFF.
