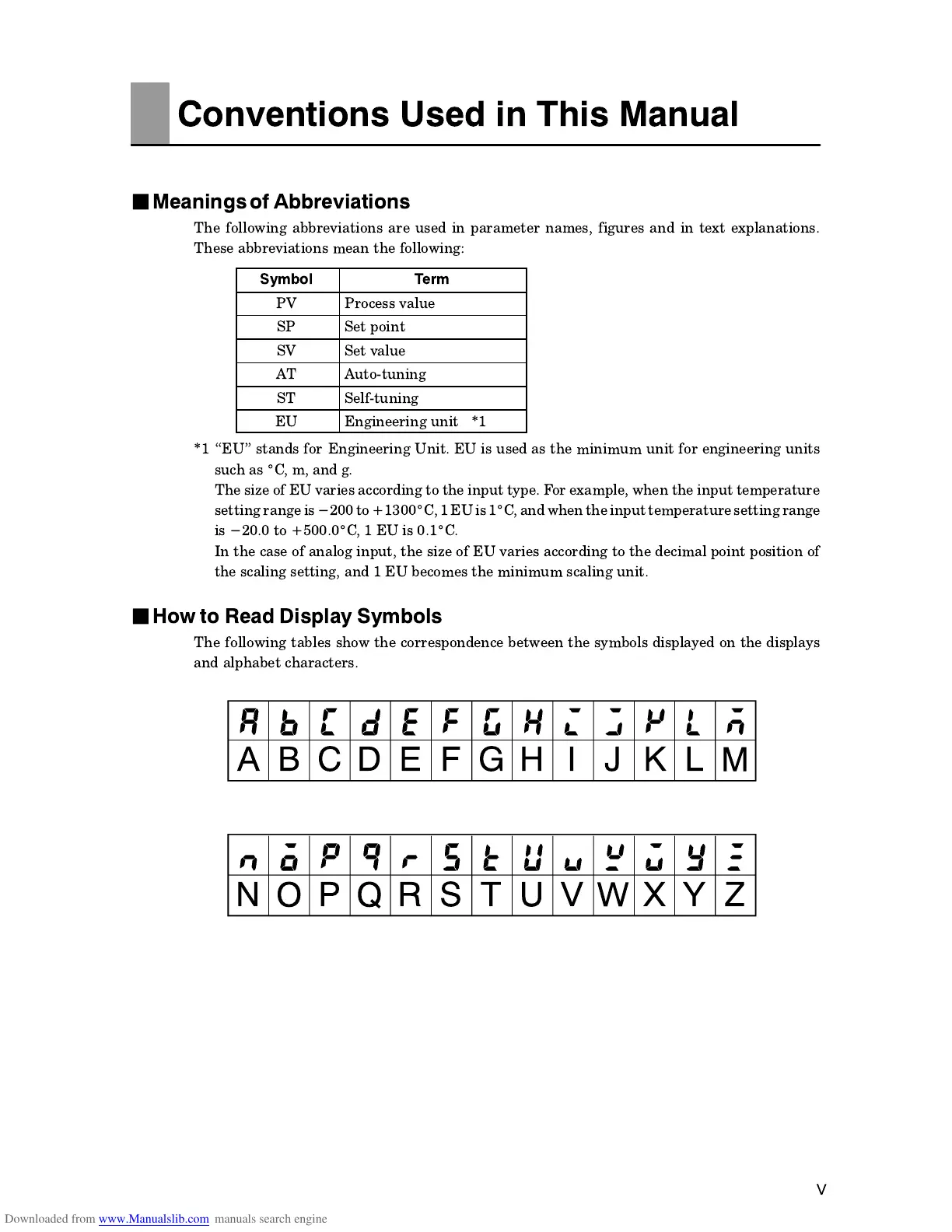

Omron E5EN - Manual Conventions and Symbols; Meanings of Abbreviations; How to Read Display Symbols

V
J Meaningsof Abbreviations
The following abbreviations are used in parameter names, figures and in text explanations.
These abbreviations mean the following:
Symbol Term
PV Process value
SP Set point
SV Set value
AT AutoĆtuning
ST SelfĆtuning
EU Engineering unit *1
*1 EU" stands for Engineering Unit. EU is used as the minimum unit for engineering units
such as _ C, m, and g.
The size of EU varies according to the input type. For example, when the input temperature
setting range is -200 to +1300 _ C,1EUis1 _ C, and when the input temperature setting range
is -20.0 to +500.0 _ C,1EUis0.1 _ C.
In the case of analog input, the size of EU varies according to the decimal point position of
the scaling setting, and 1 EU becomes the minimum scaling unit.
J How to Read Display Symbols
The following tables show the correspondence between the symbols displayed on the displays
and alphabet characters.
ABCDEFGHI JKLM
NOPQRSTUVWXYZ
Conventions Used in This Manual
