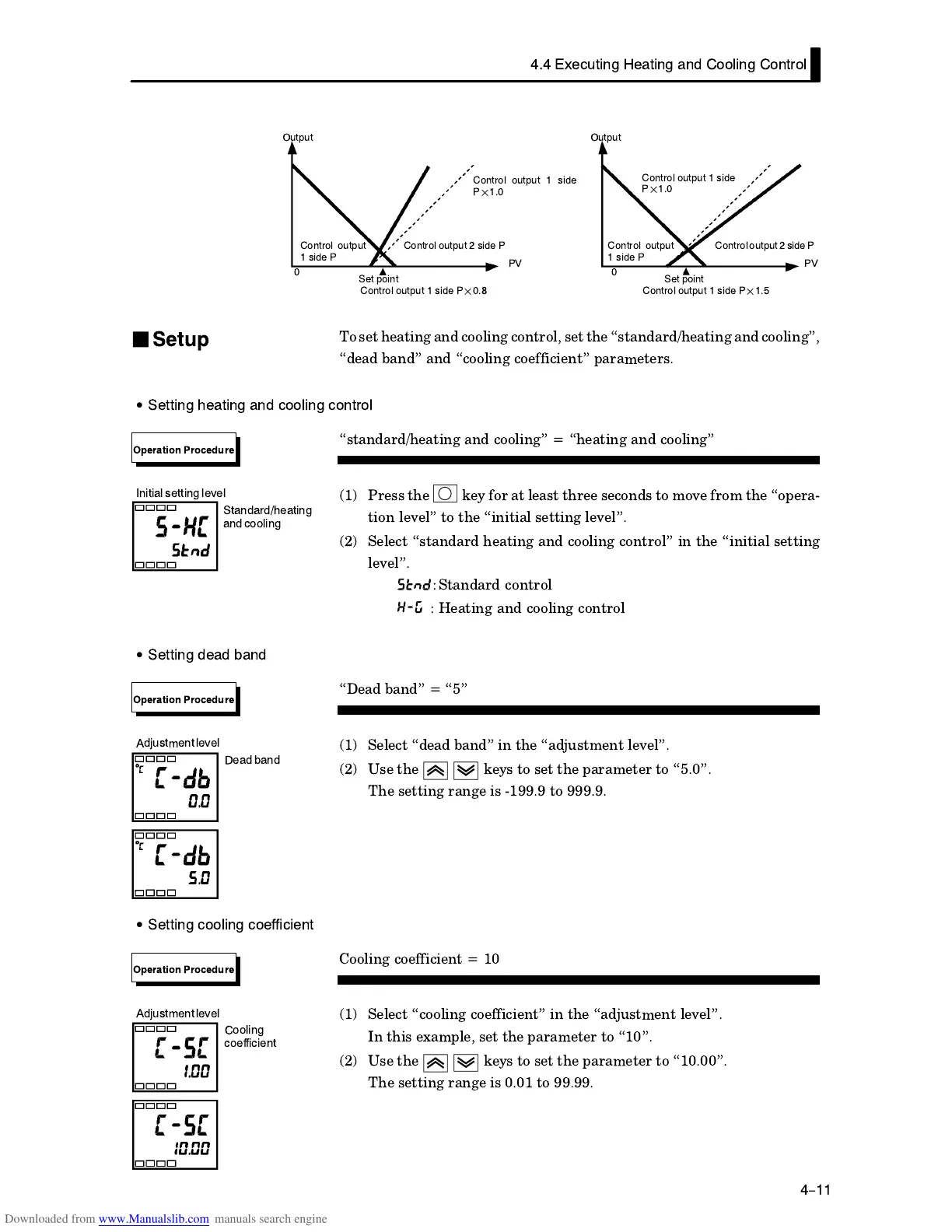

4.4 Executing Heating and Cooling Control
4-11
Output
Control output
1 side P
Set point
Control output 1 side P  0.8
Control output 1 side
P  1.0
Control output 2 side P
Output
Control output 1 side
P  1.0
Controloutput 2side P
Set point
Control output 1 side P  1.5
00
PV PV
Control output
1 side P
Toset heating and cooling control, set the standard/heating and cooling",
dead band" and cooling coefficient" parameters.
• Setting heating and cooling control
standard/heating and cooling" = heating and cooling"
(1) Press the key for at least three seconds to move from the operaĆ
tion level" to the initial setting level".
(2) Select standard heating and cooling control" in the initial setting
level".
:Standard control
: Heating and cooling control
• Setting dead band
Dead band" = 5"
(1) Select dead band" in the adjustment level".
(2) Use the keys to set the parameter to 5.0".
The setting range is Ć199.9 to 999.9.
• Setting cooling coefficient
Cooling coefficient = 10
(1) Select cooling coefficient" in the adjustment level".
In this example, set the parameter to 10".
(2) Use the keys to set the parameter to 10.00".
The setting range is 0.01 to 99.99.
J Setup
Operation Procedure
Standard/heating
andcooling
Initial settinglevel
Operation Procedure
Deadband
Adjustmentlevel
Operation Procedure
Cooling
coefficient
Adjustmentlevel

Omron E5EN Specifications

General

Size	48 x 96 mm
Weight	Approx. 300 g
Input Type	Thermocouple, RTD, Analog
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Display Type	Digital
Number of Control Outputs	1
Communication	RS-485
Ambient Operating Temperature	-10 to 55 °C
Ambient Operating Humidity	25 to 85% RH
