SENSORINPUTSETTINGANDINDICATIONRANGES
A-11

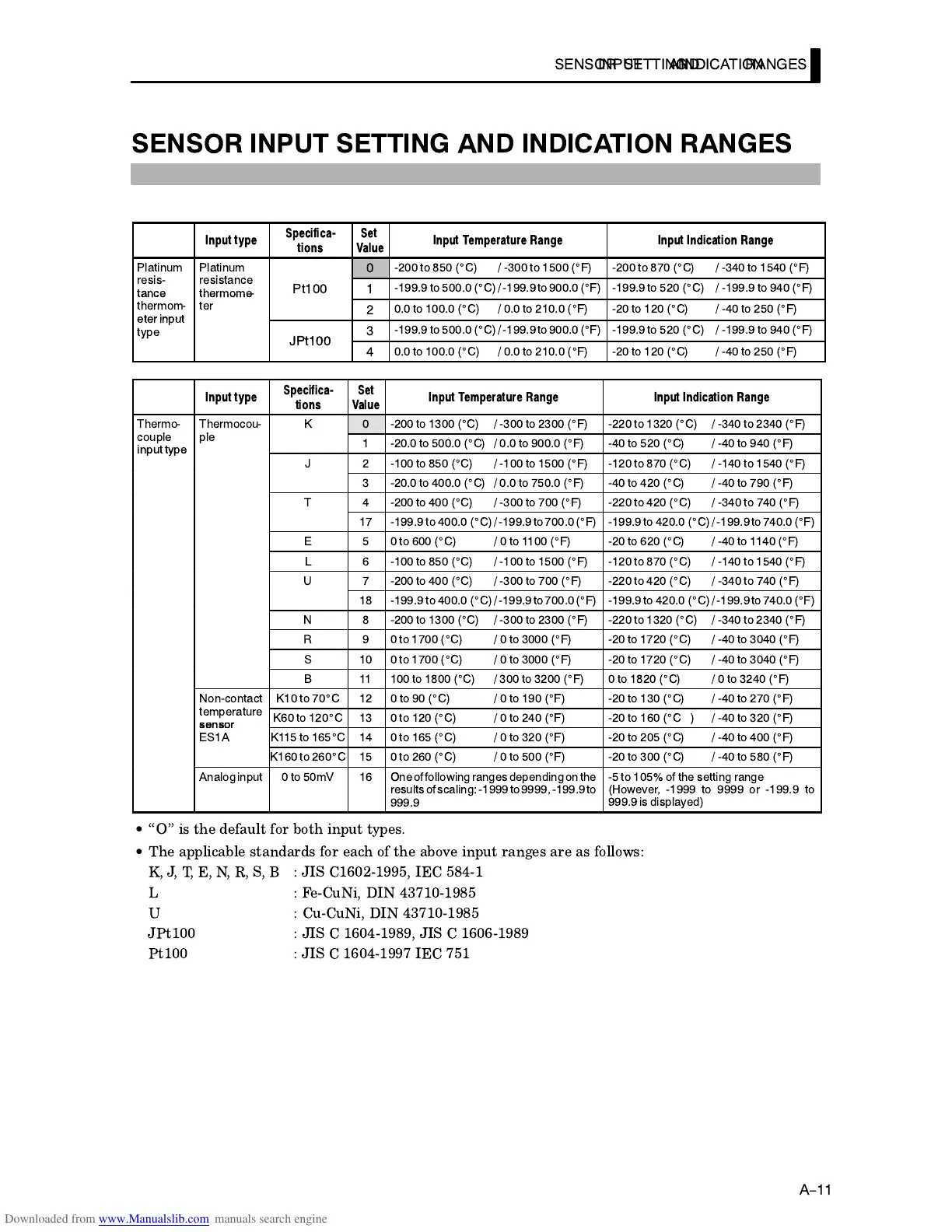

SENSOR INPUT SETTING AND INDICATION RANGES
Input type
SpecificaĆ
tions
Set
Value
Input Temperature Range Input Indication Range
Platinum
i
Platinum
it
0
Ć200 to 850 ( _ C) / Ć300 to 1500 ( _ F) Ć200 to 870 ( _ C) / Ć340 to 1540 ( _ F)
resisĆ
tance
resistance
thermomeĆ
Pt100 1
Ć199.9 to 500.0 ( _ C)/Ć199.9 to 900.0( _ F) Ć199.9 to 520 ( _ C) / Ć199.9 to 940 ( _ F)
tance
thermomĆ
eterinput
thermome
ter
2
0.0 to 100.0 ( _ C) / 0.0 to 210.0 ( _ F) Ć20 to 120 ( _ C) / Ć40 to 250 ( _ F)
e
t
er
i
npu
t
type
JPt100
3
Ć199.9 to 500.0 ( _ C)/Ć199.9 to 900.0( _ F) Ć199.9 to 520 ( _ C) / Ć199.9 to 940 ( _ F)
yp
JP
t
100
4
0.0 to 100.0 ( _ C) / 0.0 to 210.0 ( _ F) Ć20 to 120 ( _ C) / Ć40 to 250 ( _ F)
Input type
SpecificaĆ
tions
Set
Value
Input Temperature Range Input Indication Range
ThermoĆ
l
ThermocouĆ
l
K 0 Ć200 to 1300 ( _ C) / Ć300 to 2300 ( _ F) Ć220 to 1320 ( _ C) / Ć340 to 2340 ( _ F)
couple
input type
ple
1 Ć20.0 to 500.0 ( _ C) / 0.0 to 900.0 ( _ F) Ć40 to 520 ( _ C) / Ć40 to 940 ( _ F)
input type
J 2 Ć100 to 850 ( _ C) / Ć100 to 1500 ( _ F) Ć120 to 870 ( _ C) / Ć140 to 1540 ( _ F)
3 Ć20.0 to 400.0 ( _ C) / 0.0 to 750.0 ( _ F) Ć40 to 420 ( _ C) / Ć40 to 790 ( _ F)
T 4 Ć200 to 400 ( _ C) / Ć300 to 700 ( _ F) Ć220 to 420 ( _ C) / Ć340 to 740 ( _ F)
17 Ć199.9 to 400.0 ( _ C)/Ć199.9 to 700.0( _ F) Ć199.9 to 420.0 ( _ C)/Ć199.9 to 740.0( _ F)
E 5 0 to 600 ( _ C) / 0 to 1100 ( _ F) Ć20 to 620 ( _ C) / Ć40 to 1140 ( _ F)
L 6 Ć100 to 850 ( _ C) / Ć100 to 1500 ( _ F) Ć120 to 870 ( _ C) / Ć140 to 1540 ( _ F)
U 7 Ć200 to 400 ( _ C) / Ć300 to 700 ( _ F) Ć220 to 420 ( _ C) / Ć340 to 740 ( _ F)
18 Ć199.9 to 400.0 ( _ C)/Ć199.9 to 700.0( _ F) Ć199.9 to 420.0 ( _ C)/Ć199.9 to 740.0( _ F)
N 8 Ć200 to 1300 ( _ C) / Ć300 to 2300 ( _ F) Ć220 to 1320 ( _ C) / Ć340 to 2340 ( _ F)
R 9 0 to 1700 ( _ C) / 0 to 3000 ( _ F) Ć20 to 1720 ( _ C) / Ć40 to 3040 ( _ F)
S 10 0 to 1700 ( _ C) / 0 to 3000 ( _ F) Ć20 to 1720 ( _ C) / Ć40 to 3040 ( _ F)
B 11 100 to 1800 ( _ C) / 300 to 3200 ( _ F) 0 to 1820 ( _ C) / 0 to 3240 ( _ F)
NonĆcontact
tt
K10 to 70 _ C 12 0to90( _ C) / 0 to 190 ( _ F) Ć20 to 130 ( _ C) / Ć40 to 270 ( _ F)
temperature
sensor
K60 to 120 _ C 13 0 to 120 ( _ C) / 0 to 240 ( _ F) Ć20 to 160 ( _ C ) / Ć40 to 320 ( _ F)
sensor
ES1A
K115 to 165 _ C 14 0 to 165 ( _ C) / 0 to 320 ( _ F) Ć20 to 205 ( _ C) / Ć40 to 400 ( _ F)
K160 to 260 _ C 15 0 to 260 ( _ C) / 0 to 500 ( _ F) Ć20 to 300 ( _ C) / Ć40 to 580 ( _ F)
Analoginput 0 to 50mV 16 Oneoffollowingrangesdepending on the
resultsofscaling:Ć1999 to9999,Ć199.9to
999.9
Ć5 to 105% of the setting range
(However, Ć1999 to 9999 or Ć199.9 to
999.9is displayed)
• 4 (. /'$ #$% 0)/ %+- !+/' (*,0/ /3,$.
• '$ ,,)(" !)$ ./ *# -#. %+- $ "' +% /'$ !+1$ (*,0/ - *&$. -$ . %+))+2.
          6  6
  $60(  6
  060(  6
/    6   6
/    6  

Omron E5EN Specifications

General

Size	48 x 96 mm
Weight	Approx. 300 g
Input Type	Thermocouple, RTD, Analog
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Display Type	Digital
Number of Control Outputs	1
Communication	RS-485
Ambient Operating Temperature	-10 to 55 °C
Ambient Operating Humidity	25 to 85% RH
