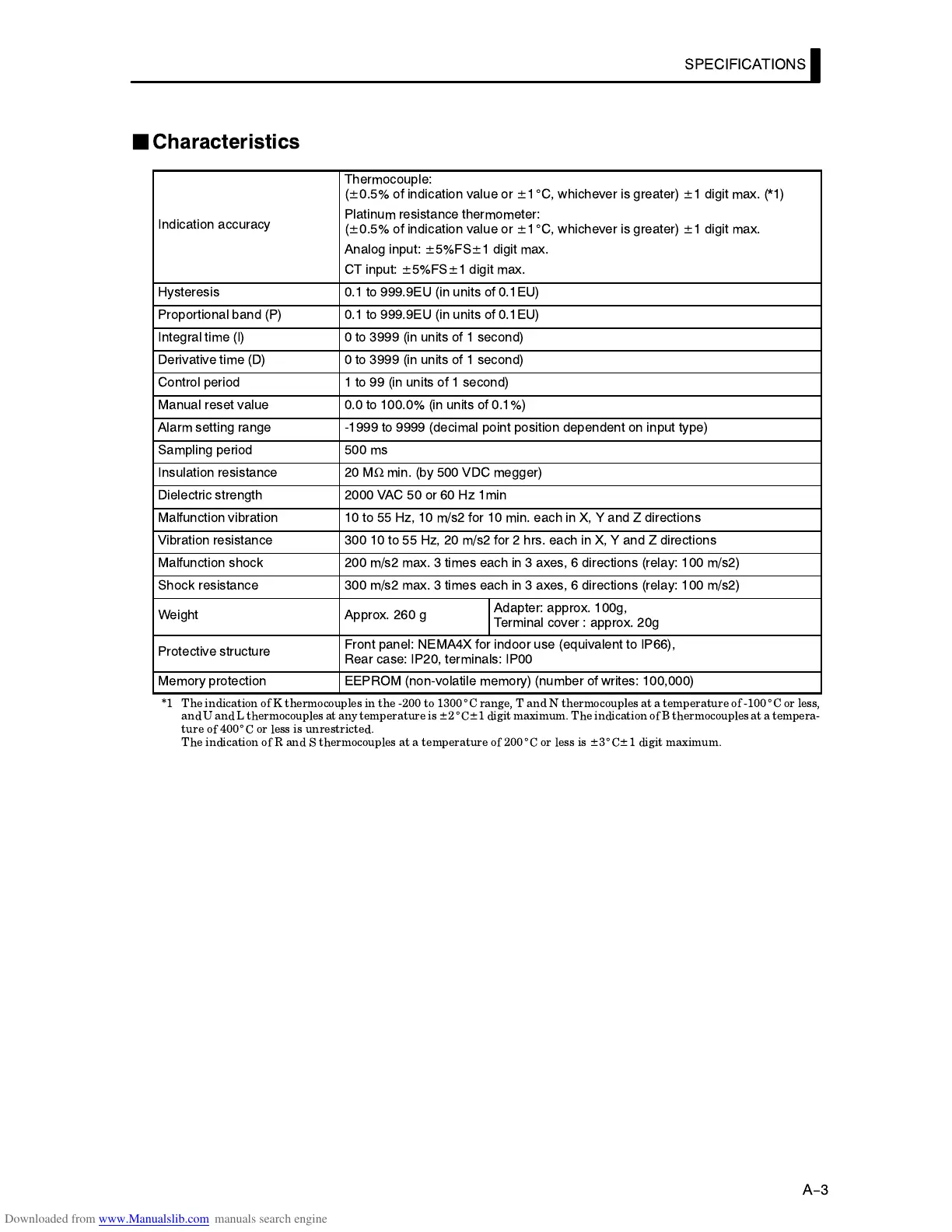

SPECIFICATIONS
A-3
J
Characteristics
Indication accuracy
Thermocouple:
(
±
0.5% of indication value or
±
1
_
C, whichever is greater)
±
1 digit max. (*1)
Platinum resistance thermometer:
(
±
0.5% of indication value or
±
1
_
C, whichever is greater)
±
1 digit max.
Analog input:
±
5%FS
±
1 digit max.
CT input:
±
5%FS
±
1 digit max.
Hysteresis 0.1 to 999.9EU (in units of 0.1EU)
Proportional band (P) 0.1 to 999.9EU (in units of 0.1EU)
Integral time (I) 0 to 3999 (in units of 1 second)
Derivative time (D) 0 to 3999 (in units of 1 second)
Control period 1 to 99 (in units of 1 second)
Manual reset value 0.0 to 100.0% (in units of 0.1%)
Alarm setting range Ć1999 to 9999 (decimal point position dependent on input type)
Sampling period 500 ms
Insulation resistance 20 M
Ω
min. (by 500 VDC megger)
Dielectric strength 2000 VAC 50 or 60 Hz 1min
Malfunction vibration 10 to 55 Hz, 10 m/s2 for 10 min. each in X, Y and Z directions
Vibration resistance 300 10 to 55 Hz, 20 m/s2 for 2 hrs. each in X, Y and Z directions
Malfunction shock 200 m/s2 max. 3 times each in 3 axes, 6 directions (relay: 100 m/s2)
Shock resistance 300 m/s2 max. 3 times each in 3 axes, 6 directions (relay: 100 m/s2)
Weight Approx. 260 g
Adapter: approx. 100g,
T erminal cover : approx. 20g
Protective structure
Front panel: NEMA4X for indoor use (equivalent to IP66),
Rear case: IP20, terminals: IP00
Memory protection EEPROM (nonĆvolatile memory) (number of writes: 100,000)
*1 The indication of K thermocouples in the Ć200 to 1300
_
C range, T and N thermocouples at a temperature of Ć100
_
C or less,
andU and L thermocouples at any temperatureis ±2
_
C±1 digit maximum. The indication of B thermocouples at a temperaĆ
ture of 400
_
C or less is unrestricted.
The indication of R and S thermocouples at a temperature of 200
_
C or less is ±3
_
C±1 digit maximum.
