Omron E5EN User Manual

CHAPTER 2 PREPARATIONS
2-2

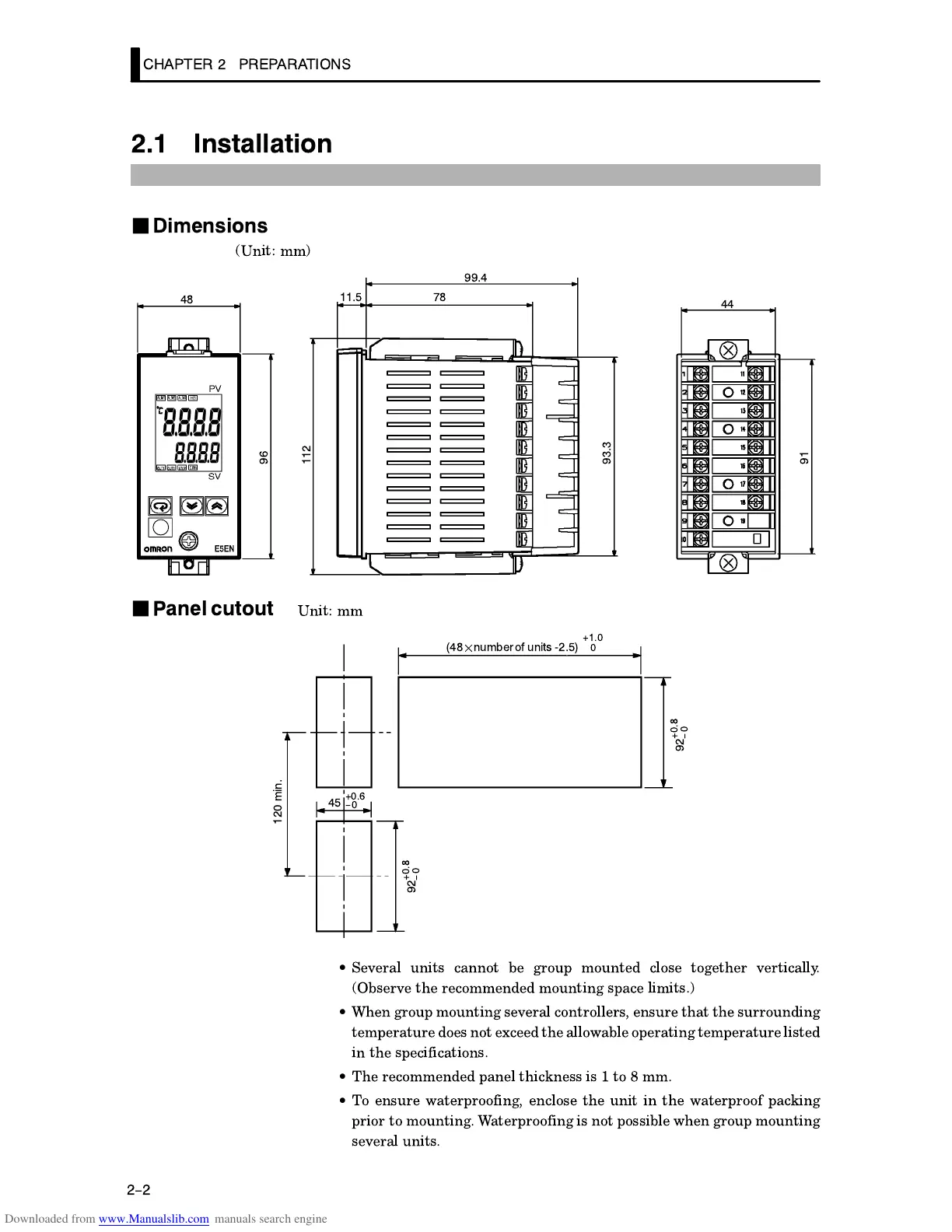

2.1 Installation
J Dimensions
(Unit: mm)
48
44
96 112 93.3 91
11.5 78
99.4
Unit: mm
(48  numberof units Ć2.5)
+1.0
0
45
+0.6
0
-
92
+0.8
0-
92
+0.8
0-
120 min.
• Several units cannot be group mounted close together vertically.
(Observe the recommended mounting space limits.)
• When group mounting several controllers, ensure that the surrounding
temperature does not exceed the allowable operating temperature listed
in the specifications.
• The recommended panel thickness is 1 to 8 mm.
• To ensure waterproofing, enclose the unit in the waterproof packing
prior to mounting. Waterproofing is not possible when group mounting
several units.
J Panel cutout

Omron E5EN Specifications

General

Size	48 x 96 mm
Weight	Approx. 300 g
Input Type	Thermocouple, RTD, Analog
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Display Type	Digital
Number of Control Outputs	1
Communication	RS-485
Ambient Operating Temperature	-10 to 55 °C
Ambient Operating Humidity	25 to 85% RH
