Chapter6 Optional Accessories (Sold Separately)
F3SJ-B
User’s Manual
Appendix

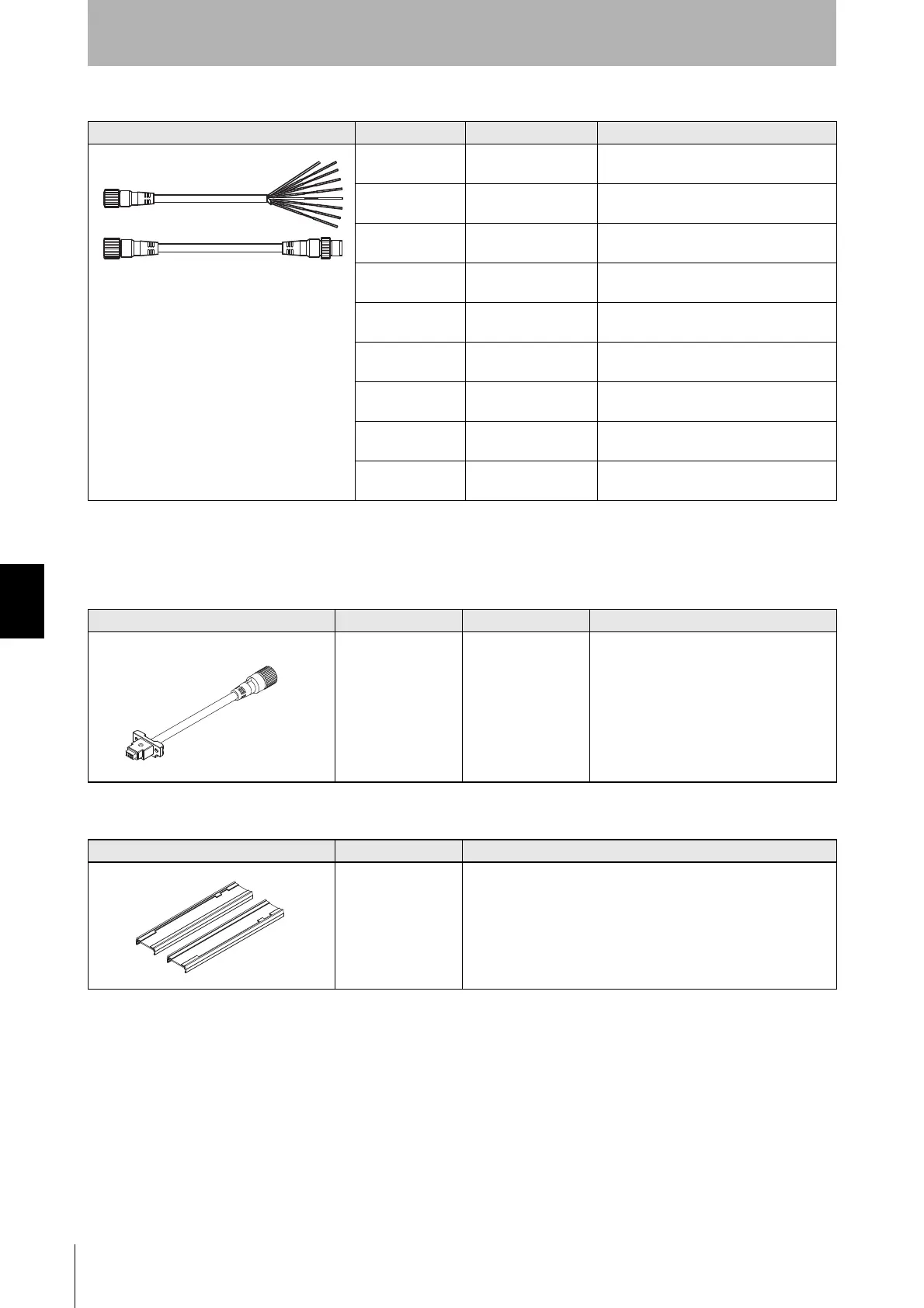

Cable for simple wiring (2 cables per set, for emitter and receiver)
Note: Also available is a combination of cables for an emitter and a receiver with other lengths than the above.
For details, contact Omron.
* 1. Double-ended cable for an emitter and single-end cable for a receiver.
Series connection cable for extension (two cables per set, for emitter and receiver)
Spatter Protection Cover (two pieces per set, for emitter and receiver)
Appearance Model name Cable length Note
F39-JD0303BA Emission: 3m
Light Reception: 3m
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD3A-D
F39-JD0307BA Emission: 3m
Light Reception: 7m
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD7A-D
F39-JD0310BA Emission: 3m
Light Reception: 10m
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD10A-D
F39-JD0503BA Emission: 5m
Light Reception: 3m
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD3A-D
F39-JD0507BA Emission: 5m
Light Reception: 7m
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD7A-D
F39-JD0510BA Emission: 5m
Light Reception: 10m
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD10A-D
F39-JD1003BA Emission: 10m
Light Reception: 3m
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD3A-D
F39-JD1007BA Emission: 10m
Light Reception: 7m
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD7A-D
F39-JD1010BA Emission: 10m
Light Reception: 10m
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD10A-D
Appearance Model Cable length Specifications
F39-JBR2W 0.2 m Cap (8-pin)
- M12 connector (8-pin)
Appearance Model Remarks
F39-HB The suffix  in the model name indicates the same 4-digit
number as the protective height (the suffix  in the model
name) of the F3SJ-B.
When a spatter protection cover is attached, operating range of
F3SJ-B is reduced by about 10%.
Spatter protection cover with 1985 or higher of the  in the
model is divided into two in combination to use.
