Omron F3SJ-B Series User Manual

42
Chapter3 Dimensions
F3SJ-B
User’s Manual
Wiring/Installation

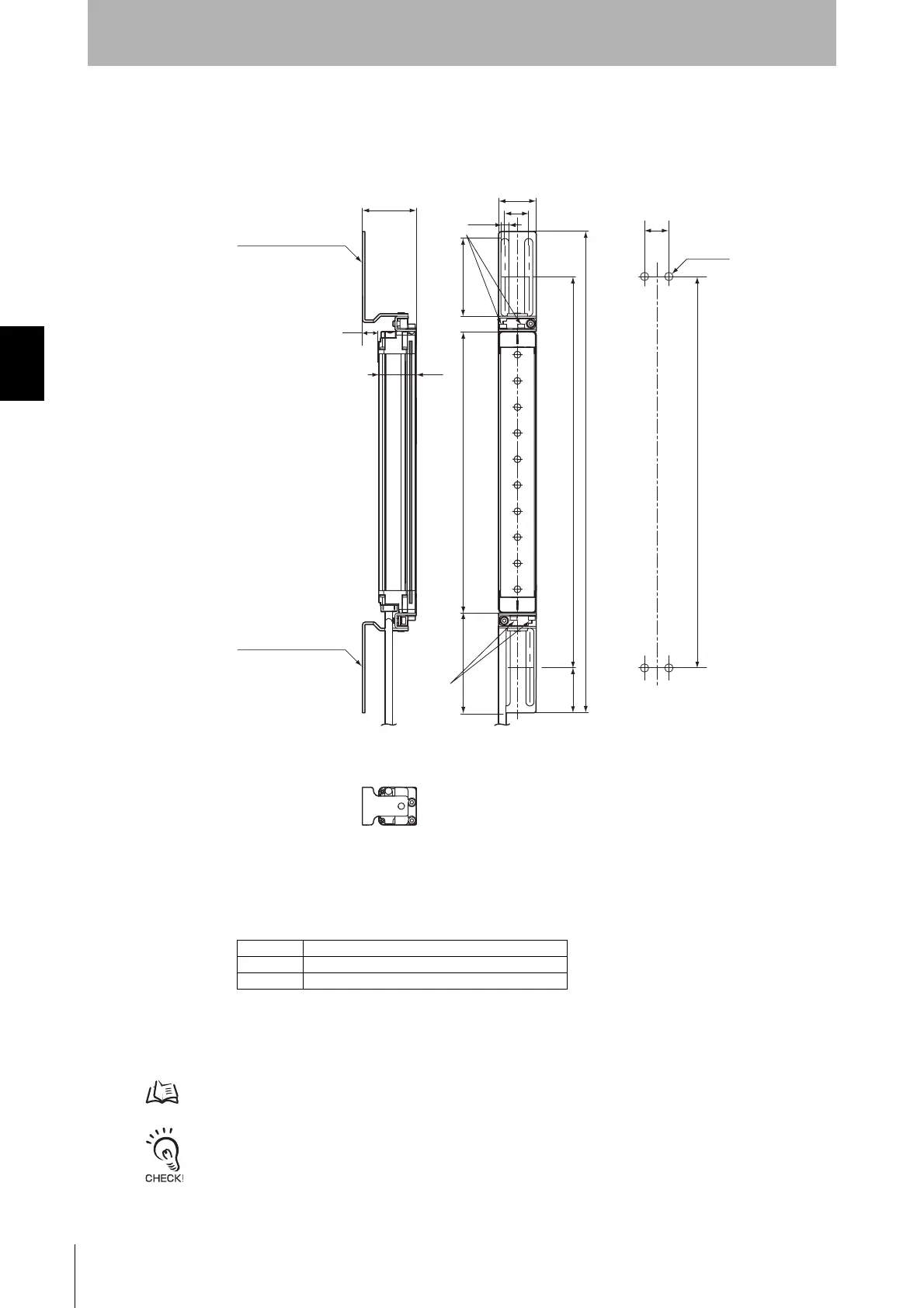

 When Using Replacement Brackets
 Backside mounting
Bracket mounting procedure (Mounting) p.49
If the protective height is more than 1105 mm, use Intermediate Brackets of the quantities and locations according to
the dimensions described on page 29 "When Using Top/Bottom and Intermediate Brackets". If the brackets described
above are not used, ratings and performance cannot be met.
19
4-M5
B
Replacement Bracket
(F39-LJB4)
Replacement Bracket
(F39-LJB4)
43
13
30
19
6.5
62
30
B C (Protective height)
A
79.5
36.5
[ Unit : mm ]
M3 x 6 screw
M3 x 6 screw
Dimensions A to C
A C+159
BC+86
C 4-digit number of the type name (protective height)
