Optional Accessories (Sold Separately)
Single-ended Connector Cable (Two cables per set, for emitter and receiver)
Note 1. The Single-ended Connection Cable can also be ordered just for the emitter or receiver. The suffix "-
L" for emitter or "-D" for receiver at the end of the model name must be added when placing an order.
Single-ended Connector Cable for emitter: F39-JDA-L,
Single-ended Connector Cable for receiver: F39-JDA-D
Note 2. To extend the cable length to 20 m or more, add the Double-ended Connector Cable (F39-JDB).
Example: When using a cable of 30 m, connect the F39-JD10A Single-ended Connector Cable with
the F39-JD20B Double-ended Connector Cable.
Double-ended Connector Cable :For connection with F3SP-B1P or cable extension (two cables per set, for
emitter and receiver)
Note 1. The Single-ended Connection Cable can also be ordered just for the emitter or receiver. The suffix "-
L" for emitter or "-D" for receiver at the end of the model name must be added when placing an order.
Double-ended Connector Cable for emitter: F39-JD(R)B-L,
Double-ended Connector Cable for receiver: F39-JD(R)B-D
Note 2. To extend the cable length to 20 m or more, add the Double-ended Connector Cable (F39-JDB).
Example: When using a cable of 30 m, connect the F39-JD10B Single-ended Connector Cable with
the F39-JD20B Double-ended Connector Cable.
Simple Wiring Connector

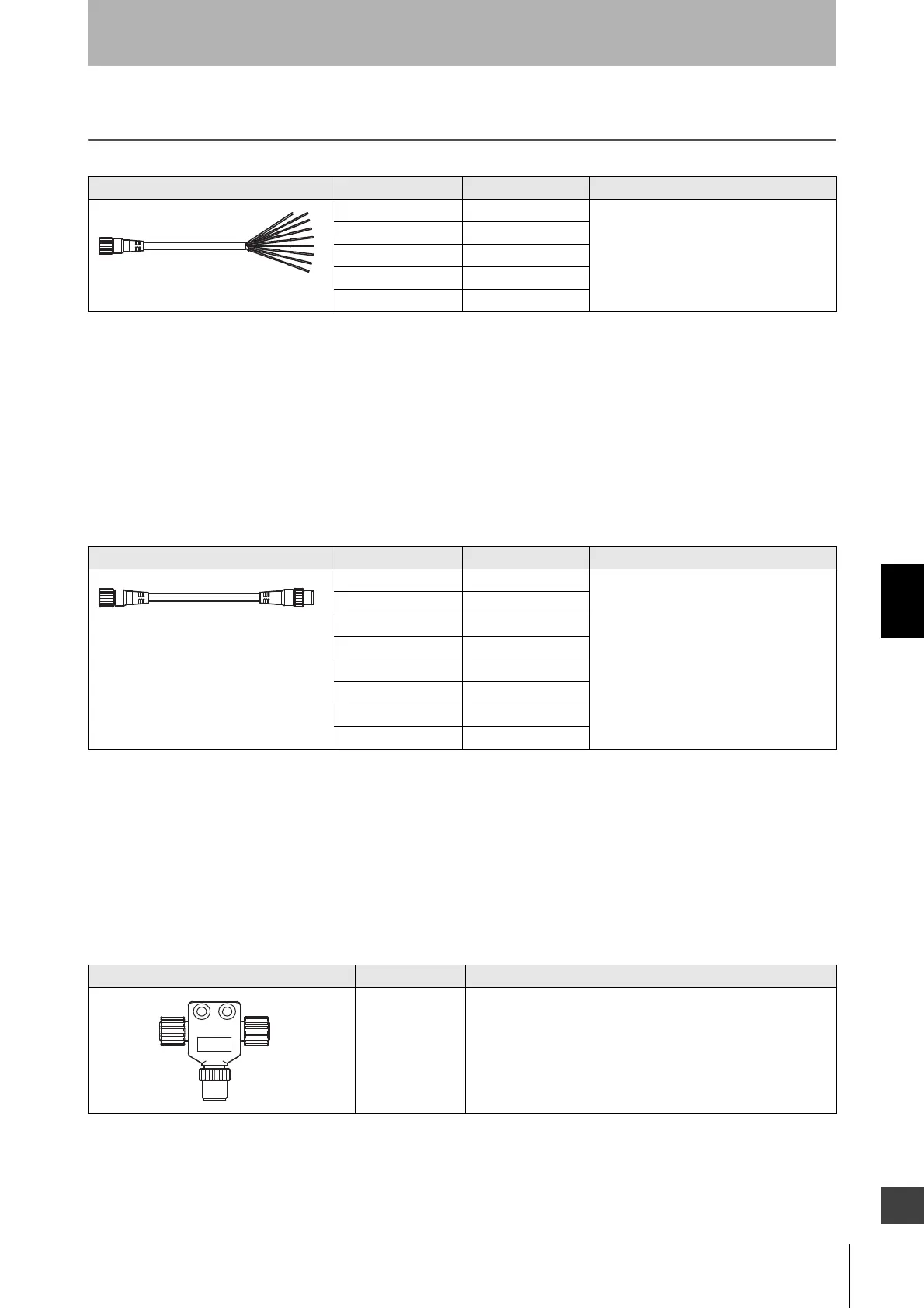

Appearance Model Cable length Specifications
F39-JD3A 3 m M12 connector (8-pin) - 8 wires + Shield
F39-JD7A 7 m
F39-JD10A 10 m
F39-JD15A 15 m
F39-JD20A 20 m
Appearance Model Cable length Specifications
F39-JDR5B 0.5 m M12 connector (8-pin)
- M12 connector (8-pin)
F39-JD1B 1 m
F39-JD3B 3 m
F39-JD5B 5 m
F39-JD7B 7 m
F39-JD10B 10 m
F39-JD15B 15 m
F39-JD20B 20 m
Appearance Model name Note
F39-CN5 This connector is used for a simple wiring system, in combination
with the following cables for simple wiring system.
