48
Chapter3 Dimensions
F3SJ-B
User’s Manual
Wiring/Installation
When Using Spatter Protection Cover

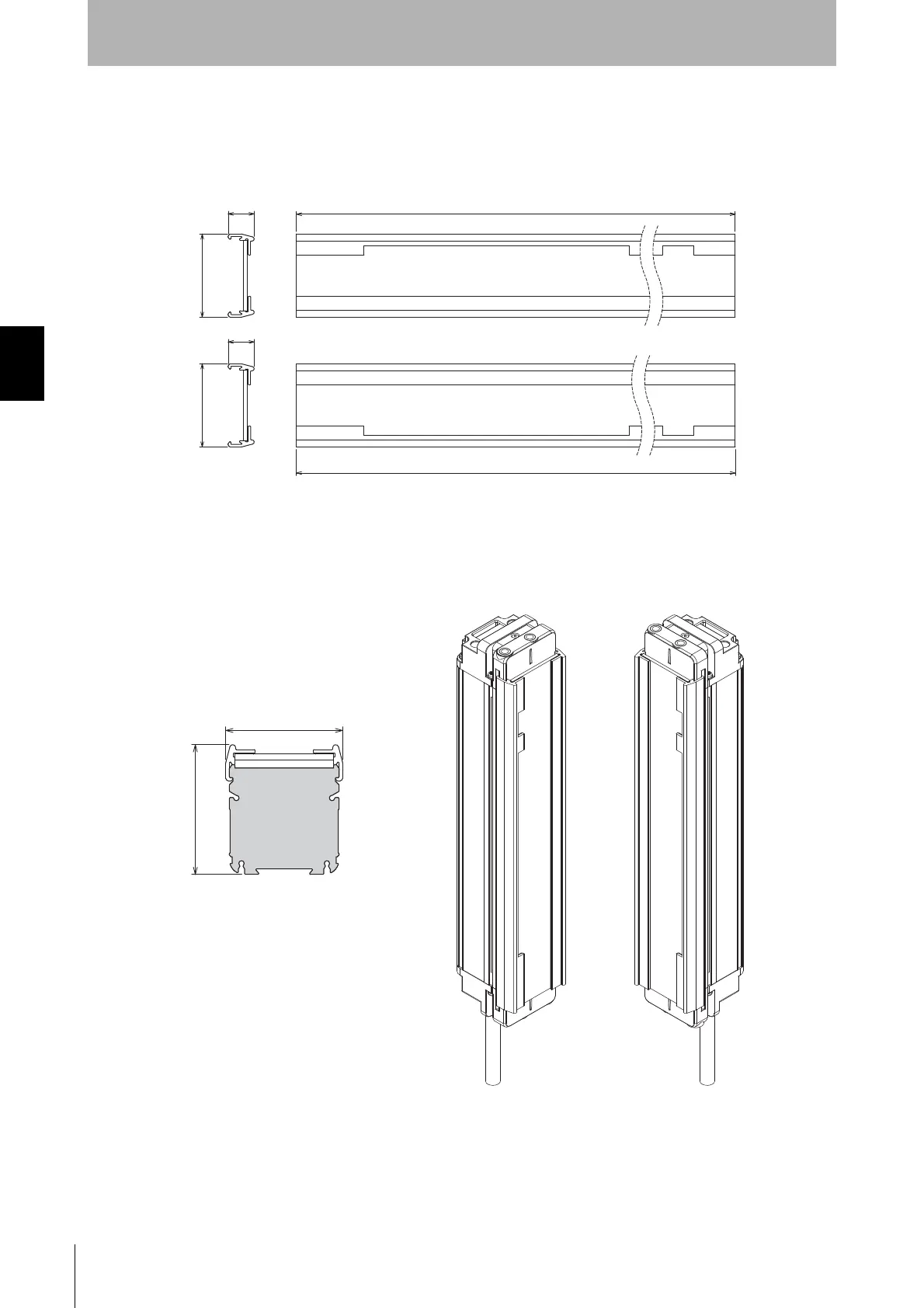

Dimensions of Spatter Protection Cover F39-HB
Assembly Dimensions
L = □□□□ - 21mm
Material: PC (Protection cover)
L
L
10
3232
10
[ Unit : mm ]
35.5
32
[ Unit : mm ]
