Chapter1 Basic Configuration and Names
F3SJ-B
User’s Manual
Overview and Specifications
Basic Configuration and Names

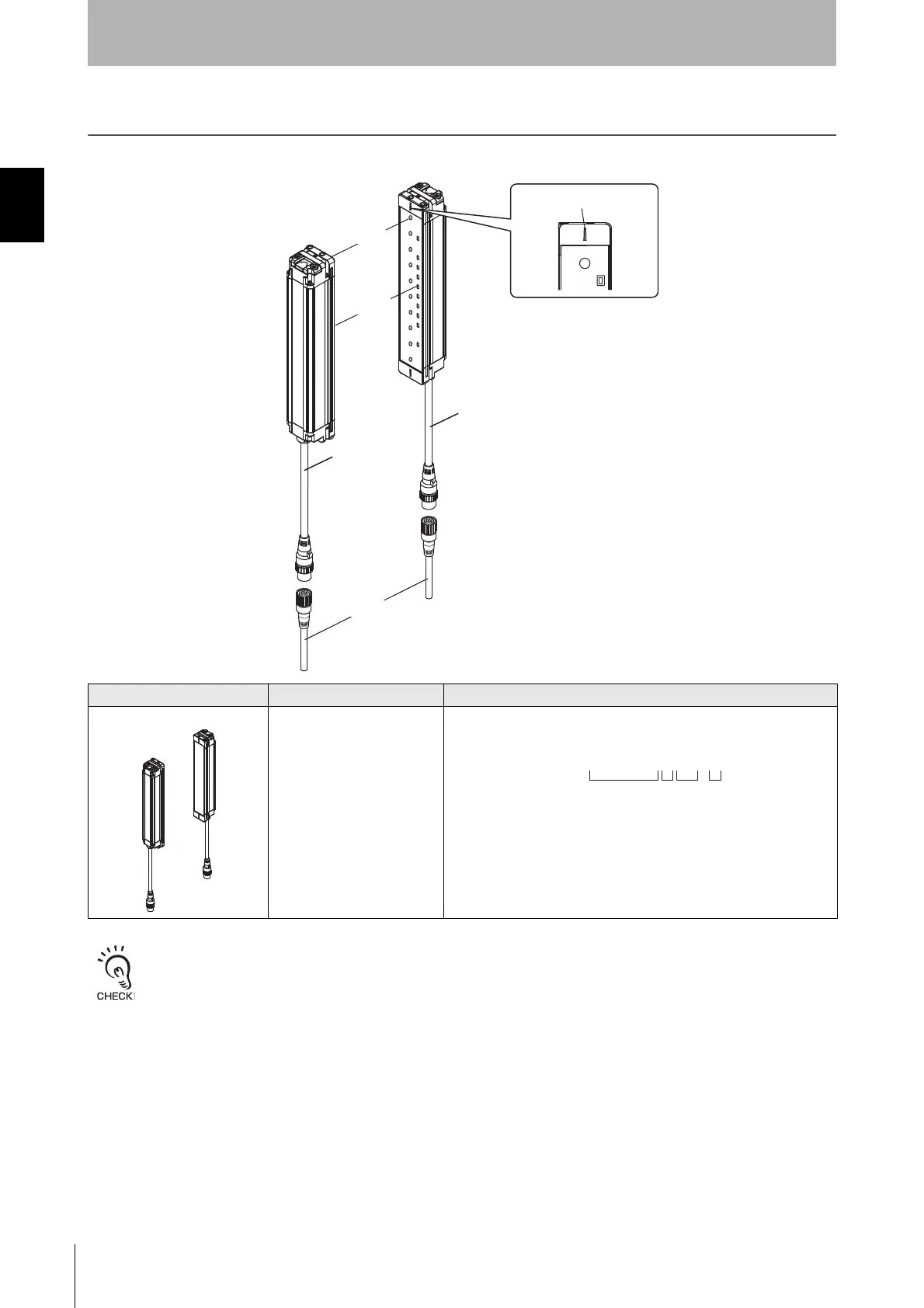

This section describes the system configuration and part names of the F3SJ-B.
To distinguish between the emitter and receiver, find the labels attached to the front of the F3SJ-B. The label on the emitter
reads "EMITTER" and the label on the receiver reads "RECEIVER".
Component Model Description
Emitter, receiver F3SJ-BN25--01T Select a type name based on the required protective height.
The model name can be understood as follows:
1: Protective height (mm)
2: Output type (N for NPN output type *1)
3. Detection capability (mm)
4: L for emitter, D for receiver, blank for a set of emitter and receiver.
*1. A hyphen "-" is added instead of "N" for emitter.
Emitter
Receiver
Connection cable
(Black)
Indicator
Beam
Extension cable
Connection
cable (Gray)
Beam center-line mark
F3SJ-B □□□□ N25 - □ -01T
1 4 3 2
