Chapter3 Series Connection
F3SJ-B
User’s Manual
Wiring/Installation

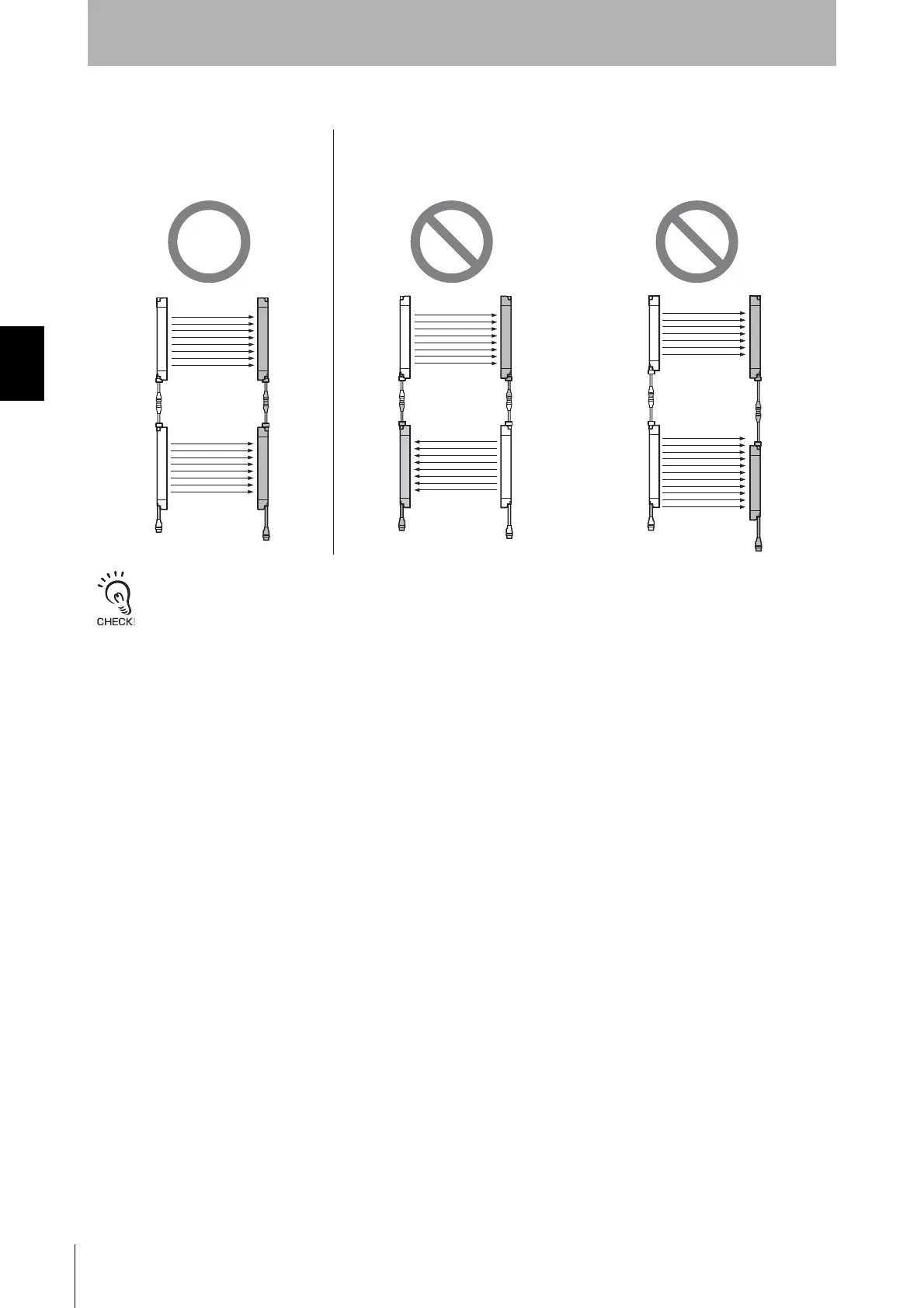

Properly connect an emitter to another emitter, and a receiver to another receiver, as shown below.
If caps and series connection cables for extension are not connected properly, the F3SJ-B enters lockout (when power is
turned ON).
Secondary
sensor 1
(Emitter)
Secondary
sensor 1
(Receiver)
Primary
sensor
(Emitter)
Primary
sensor
(Receiver)
Secondary
sensor 1
(Emitter )
Secondary
sensor 1
(Receiver)
Primary
sensor
(Receiver)
Primary
sensor
(Emitter)
Do not series-connect an emitter and
receiver. They will enter lockout state.
Do not face different models of emitters
and receivers toward each other. They
will enter lockout state or will be unable
to detect objects.
Primary
sensor 1
(Emitter)
Secondary
sensor 1
(Receiver)
Secondary
sensor
(Emitter)
Primary
sensor
(Receiver)
