Chapter3 Dimensions
F3SJ-B
User’s Manual
Wiring/Installation

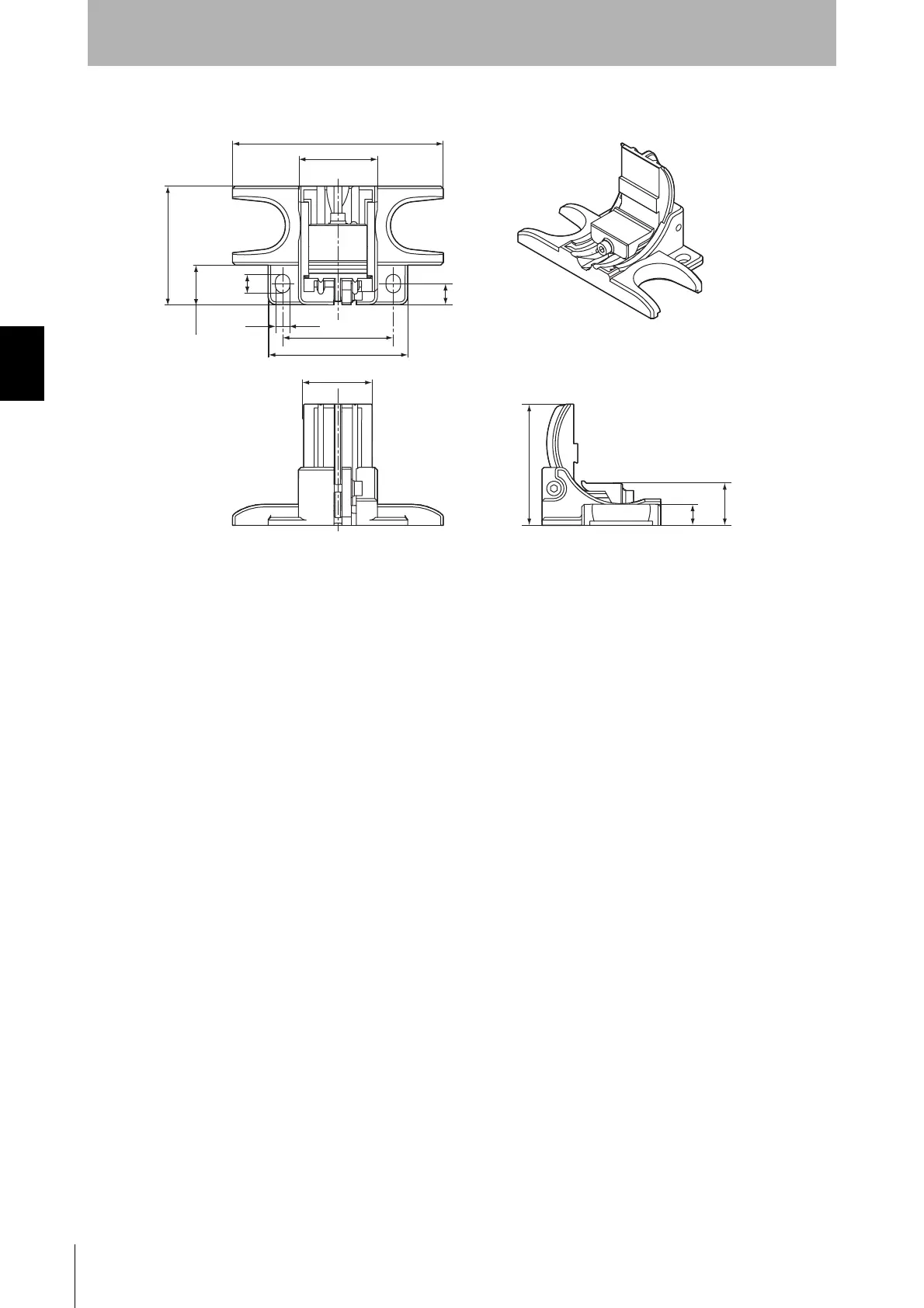

 Dimensions of Intermediate Brackets (side mounting)
8
(46)
(16)
8
53
42
5.5
26
80
30
15
7
45
[ Unit : mm ]
Material : Zinc die-cast
