Omron F3SJ-B Series - Mounting

35
F3SJ-B
User’s Manual
Chapter3 Dimensions
Wiring/Installation
E

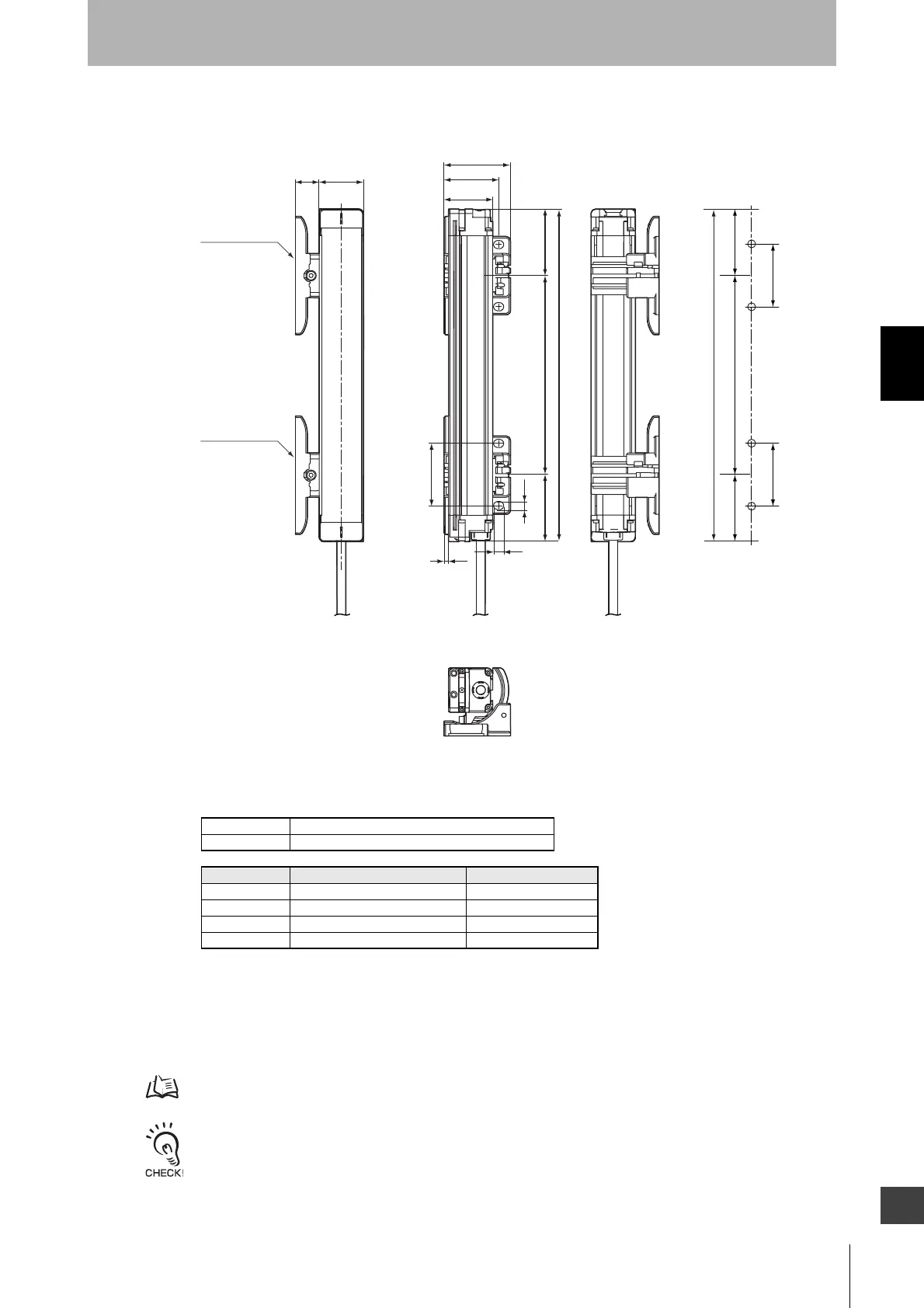

 Side mounting
Bracket mounting procedure (Mounting) p.49
The alignment range of the Intermediate Bracket must be ±30°.
[ Unit : mm ]
42
275 max 275 max 275 max 275 max
5.5
7
3
F C (Protective height)
C (Protective height)
45
37
33
16
30
42 42
F
Intermediate Bracket
(F39-LJB2)
Intermediate Bracket
(F39-LJB2)
Dimensions C and F
Dimensions F
C 4-digit number of the type name (protective height)
F Depends on the protective height. See the table below.
Protective height Number of Intermediate Brackets Dimensions F
0185 to 0225 1 -
0305 to 1105 2 555 mm max.
1185 to 1585 3 555 mm max.
1665 to 2065 4 555 mm max.
