Omron F3SJ-B Series User Manual

39
F3SJ-B
User’s Manual
Chapter3 Dimensions
Wiring/Installation
E

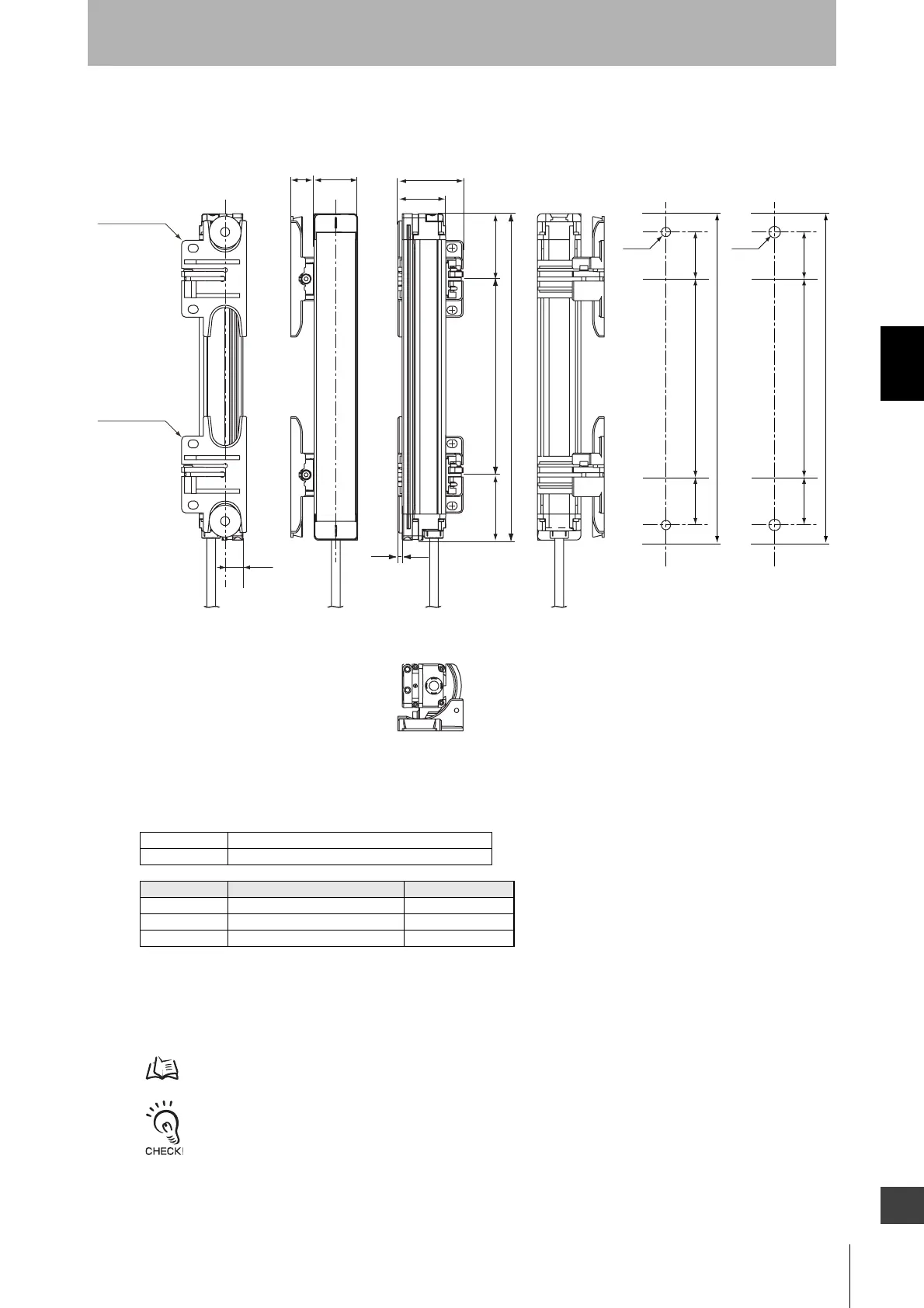

 Side mounting
Bracket mounting procedure (Mounting) p.49
The alignment range of the One-touch Bracket must be ±30°.
[ Unit : mm ]
16
30
45
33
3
275 max 275 max
F
C (Protective height)
12
<M6 screw fixed> <M8 screw fixed>
C C
32.1 32.1
2-M6
F
32.1 32.1
2-M8
F
One-touch Bracket
(F39-LJB3-M6 or
F39-LJB3-M8)
One-touch Bracket
(F39-LJB3-M6 or
F39-LJB3-M8)
Dimensions C and F
Dimensions F
C 4-digit number of the type name (protective height)
F Depends on the protective height. See the table below.
Protective height Number of Intermediate Brackets Dimensions F
0185 to 1105 2 555 mm max.
1185 to 1585 3 555 mm max.
1665 to 2065 4 555 mm max.
