Omron fh series Hardware Setup Manual

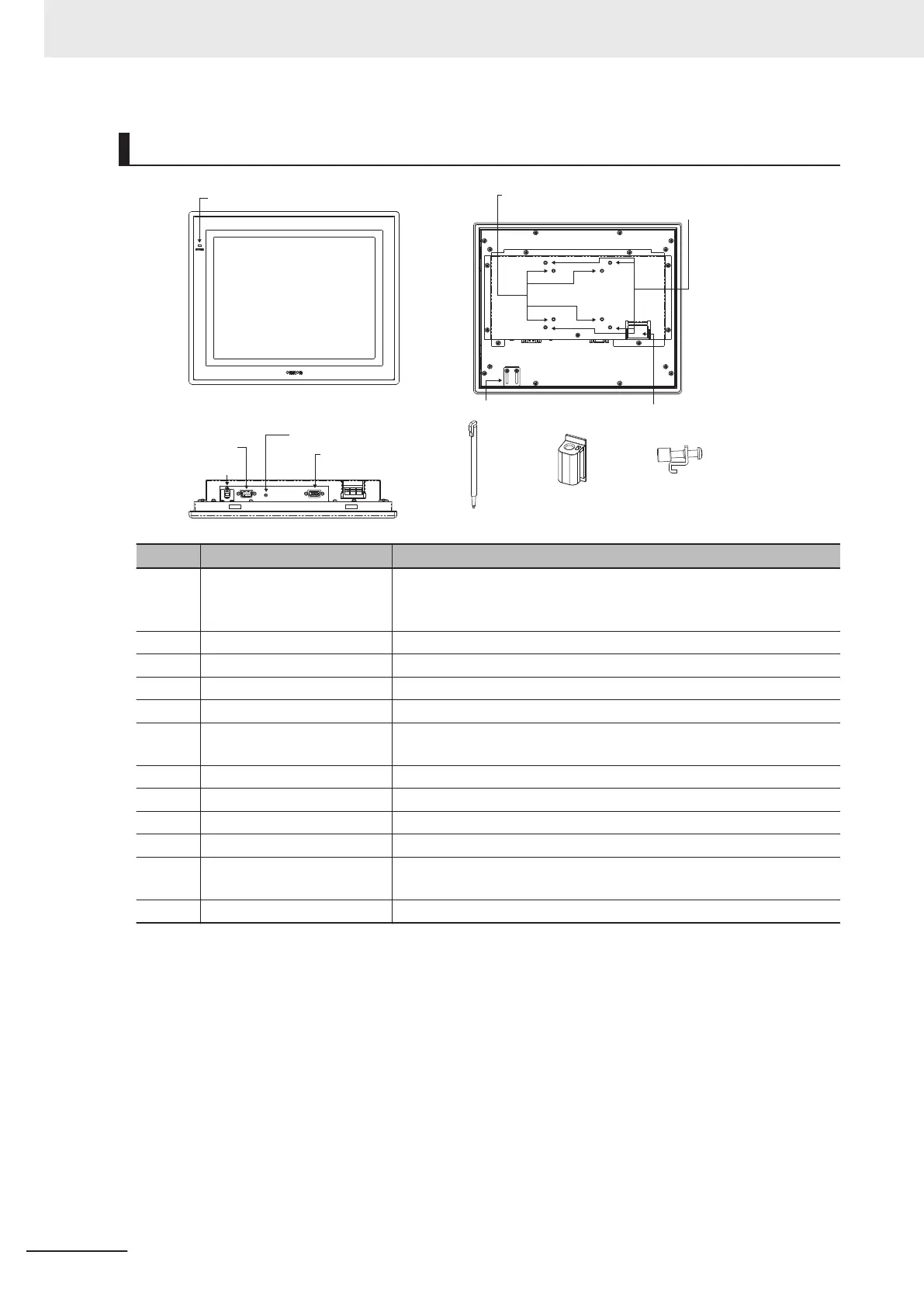

Component Names and Functions
●Front view
(1) LED indicator lamp
●Rear view
(2) VESA mounting hole pitch 75 mm (M4)
(3) VESA mounting hole pitch 100 mm (M4)
(5) Power supply terminal
(4) USB retaining bracket
●Connection terminal
(6) Monitor connector
(analog RGB)
(9) USB (TypeB)
(8) RS-232C
(7) OSD Menu button
(10) Touch pen
(11) Touch pen holder
(12) Mounting Brackets
Name Description
(1) LED indicator lamp Lit up green when power is ON.
Lit up orange when video signal is no input.
Unlit when power is OFF
.
(2) VESA mounting hole (M4) Mounting hole for VESA 75 mm x 75 mm.
(3) VESA mounting hole (M4) Mounting hole for VESA 100 mm x 100 mm.
(4) USB retaining bracket Retaining bracket for USB cable.
(5) Power supply terminal Connect a 24 VDC power supply.
(6) Monitor connector (analog
RGB)
Connect a monitor cable for analog RGB.
(7) OSD Menu button The button to activate the OSD menu.
(8) RS-232C Connect a serial communication port for touch panel communication.
(9) USB (TypeB) Connect a USB port (Type B) for touch panel communication.
(10) Touch pen Use for operation of touch panel.
(11) Touch pen holder Put touch pen in it when not using.
Paste it on the monitor by double-sided tape.
(12) Mounting Brackets Use them to mount the panel.
For operation at launch OSD, refer to the Model FH-MT12 INSTRUCTION SHEET.
3 Configuration
3-20
FH Series Vision System Hardware Setup Manual for 3D Robot Vision (Z436-E1)

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
