Precautions for Correct Use
Installation and Storage Sites
Install and store the product in a location that meets the following conditions:
Surrounding temperature of 0 to +45°C (-20 to +65°C in storage)
Do not let the ambient temperature exceed 45°C (117°F).
Provide a forced-air fan cooling or air conditioning if the ambient temperature is near 45°C
(117°F) so that the ambient temperature never exceeds 45°C (117° F).
Relative humidity of between 35 to 85%
No rapid changes in temperature (place where dew does not form)
No presence of corrosive or flammable gases
Place free of dust, salts and iron particles
Place free of vibration and shock
Place out of direct sunlight
Place where it will not come into contact with water, oils or chemicals
Place not affected by strong electro-magnetic waves
Place not near to high-voltage, or high-power equipment
Do not install the product immediately above significant heat sources, such as heaters, trans-
formers, or large-capacity resistors.
Do not install the Sensor Controller in a cabinet with high-voltage equipment installed.
Mount the Sensor Controller at 200 [mm] or more from power cables apart.
Handling of Sensor Controller
Touching Signal Lines:
When touching a terminal part or a signal wire in a connector, take anti-static measures using
a wrist strap or another device to prevent damage from static electricity.
Handling a USB Memory:
Before removing a USB memory device, make sure that data is not being read or written to
them.
For a USB memory device, the memory device's LED flashes or lights while data is being
read or written, so make sure that it is turned OFF before removing the memory.
Maintenance
Lightly wipe off dirt with a soft cloth.
Do not use thinners or benzine.
Clean the lens with a lens-cleaning cloth or air brush.
Dirt on the image element must be removed using an air brush.

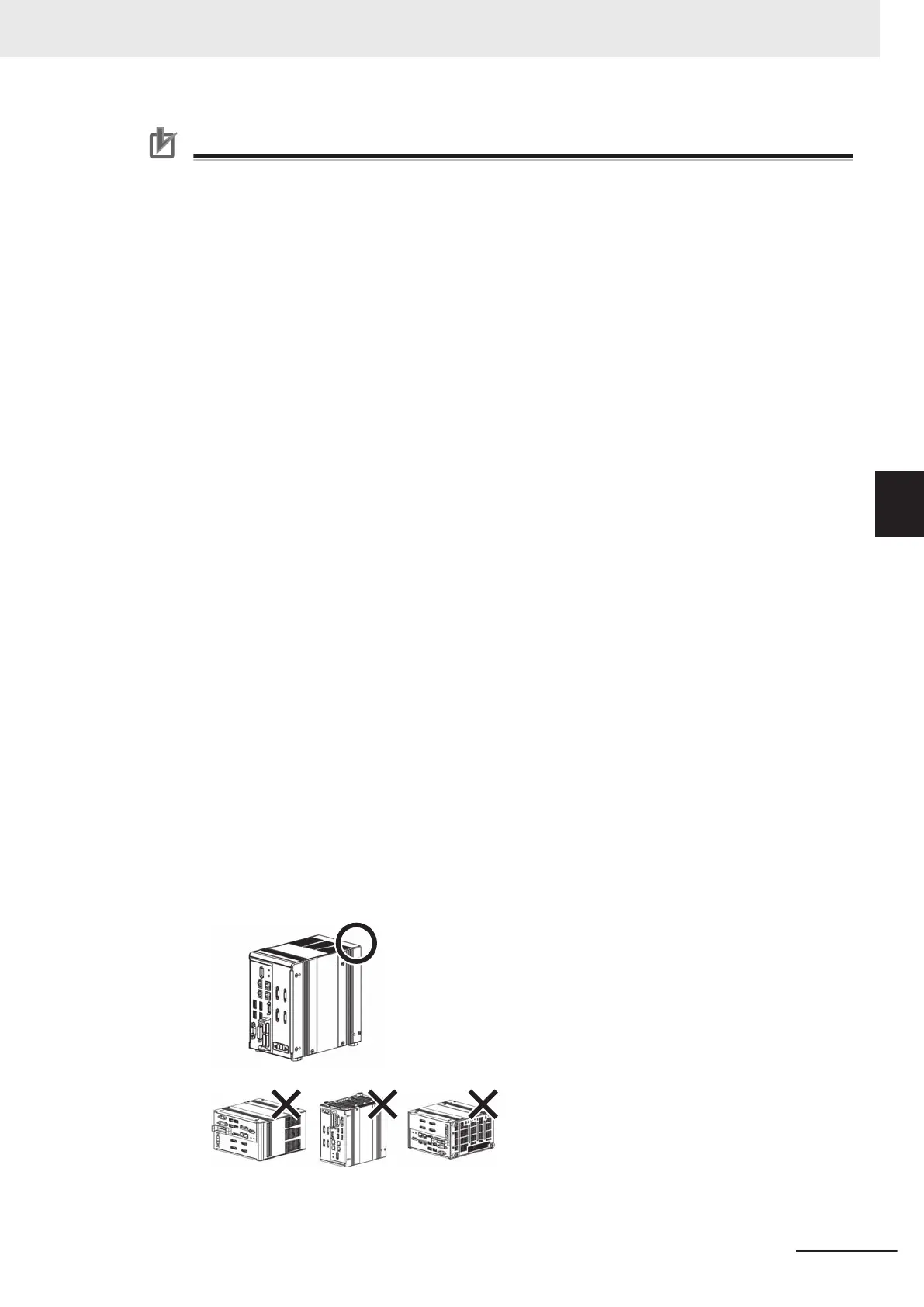

Orientation of Product
For good heat dissipation, install the product only in the position shown below so as not to
block the ventilation holes. Install the product so that the air can flow freely through its cooling
vents.
Do not install the product in the following positions.
For good ventilation, provide a clearance of 50 [mm] or more above the Sensor Controller
away from other devices in the normal floor mounting. For the right and left sides, provide a
clearance of 30 [mm] or more, and for the back side, 15 [mm] or more. These clearances are
4 Handling and Installation Environment
4-3
FH Series Vision System Hardware Setup Manual for 3D Robot Vision (Z436-E1)
4-1 FH-5050
