Selecting the Calibration Pattern to Use
In the Camera setup, select the calibration pattern to use.
[Image] − [Camera setup]

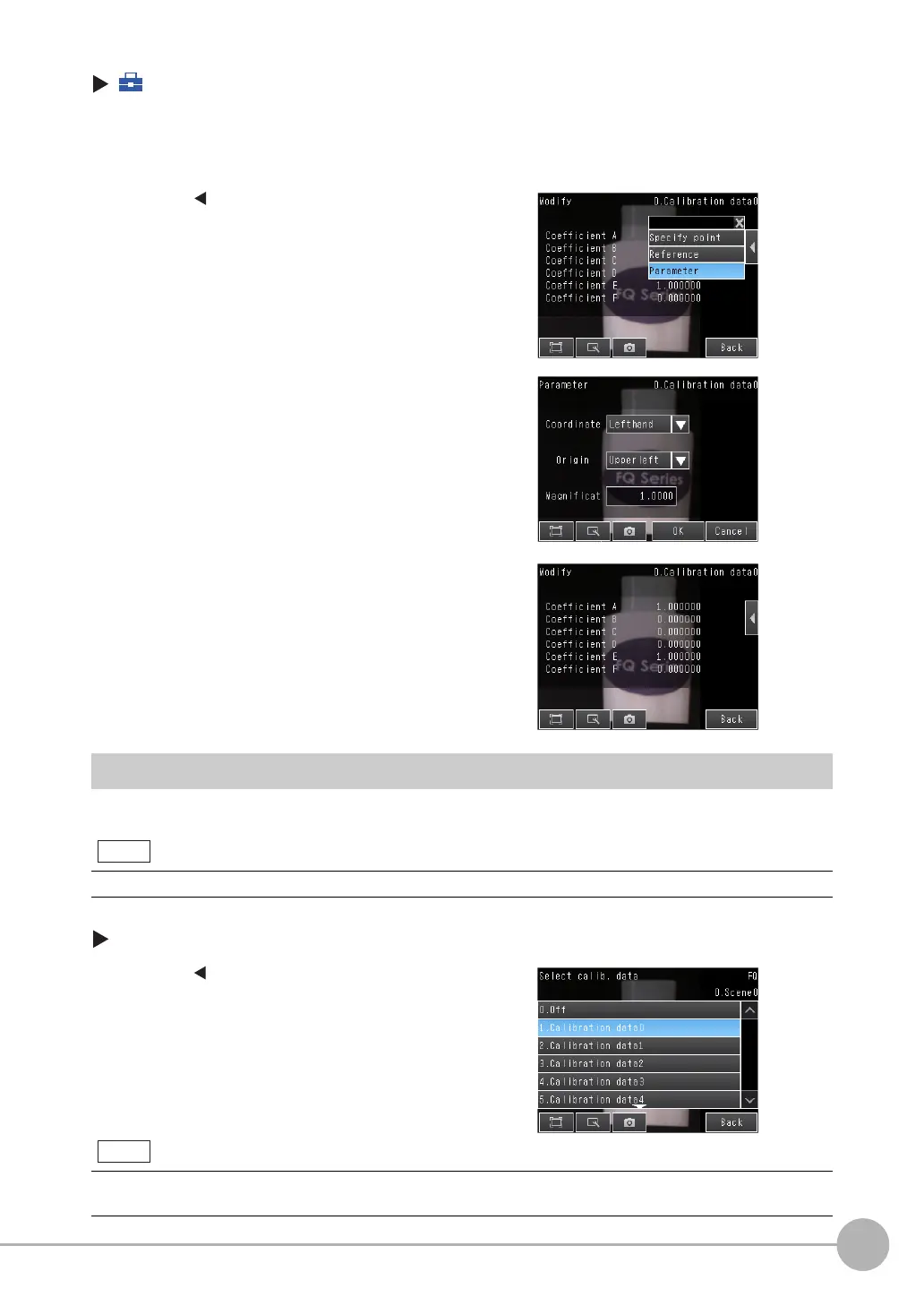

1 Select the data region to set from [Calibration data 0]
to [Calibration data 31].
2 Press [Modify].
3 Press [] − [Parameter] on the right of the display.
4 Set the following parameters: [Coordinate], [Origin],
and [Magnification].
5 Press [OK].
6 The calibration parameters will be displayed.
The items in the calibration parameters are the same as
those for point specification.
You can select the calibration pattern for each scene.
1 Press [] − [Select calib. data] on the right of the dis-
play.
2 Select the calibration pattern from [Calibration data 0]
to [Calibration data 31].
3 Press [Back].
If the selected calibration data has not been set yet, a message will be displayed asking if you want to go to the cali-
bration setting display.
