Specifications and Dimensions
FQ2-S4 User’s Manual
567
Appendices
12

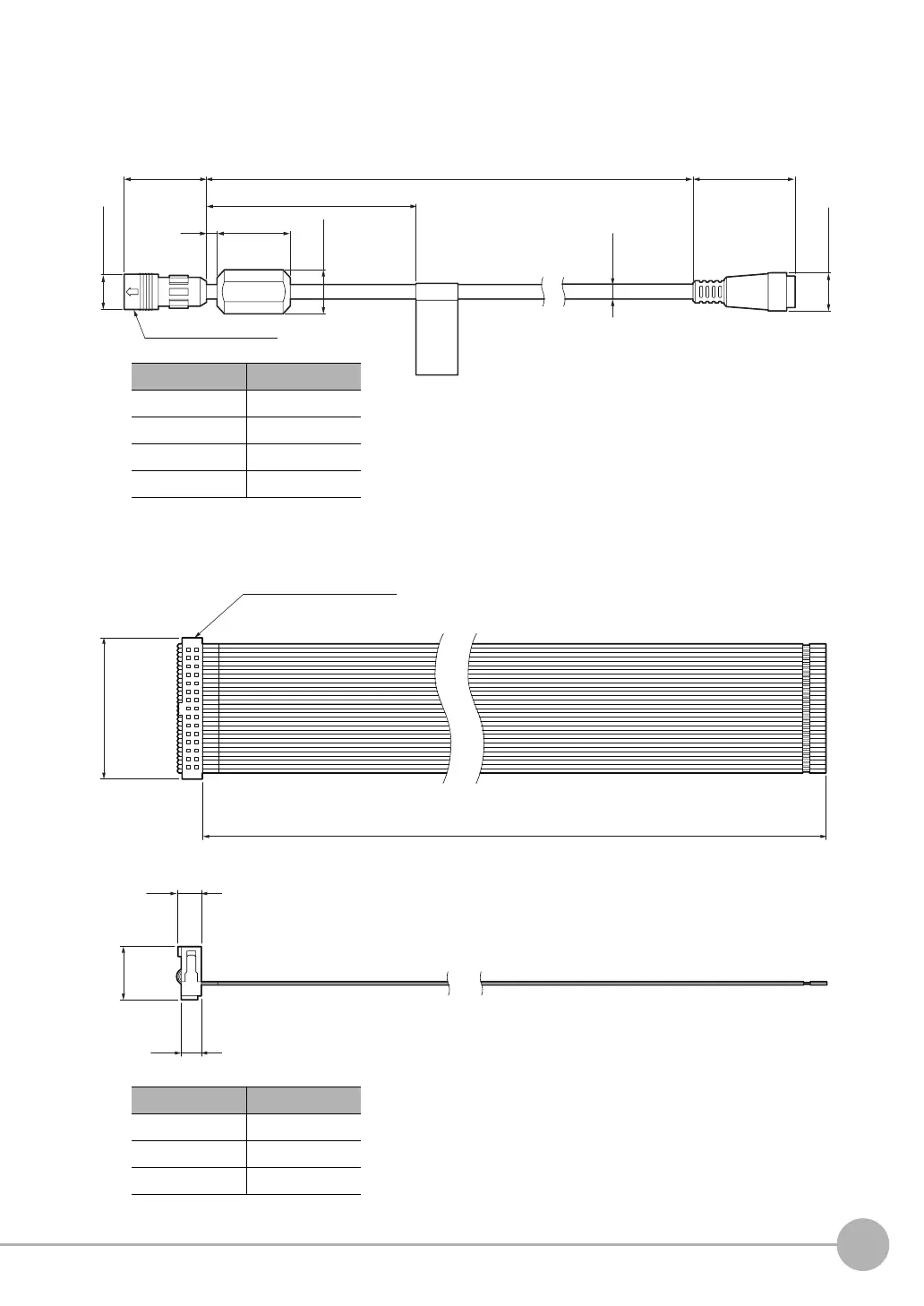

• Sensor Data Unit Cable
FQ-WU002/WU005/WU010/WU020
• Parallel Cable for FQ-SDU1
FQ-VP1002/VP1005/VP1010
(5)
19.5 dia.
(15.5 dia.)
6.8 dia.
35
39.3
(16.9 dia.)
52.2
12-pin round connector
(100)
L
*1
*1: The cable lengths are given in the following table.
Model L
FQ-WU002 2 m
FQ-WU005 5 m
FQ-WU010 10 m
FQ-WU020 20 m
(Unit: mm)
42.7
30-pin flat cable connector
(16.1)
6.1
7.1
L
*1
*1: The cable lengths are given in the following table.
Model L
FQ-VP1002 2 m
FQ-VP1005 5 m
FQ-VP1010 10 m
(Unit: mm)
