13

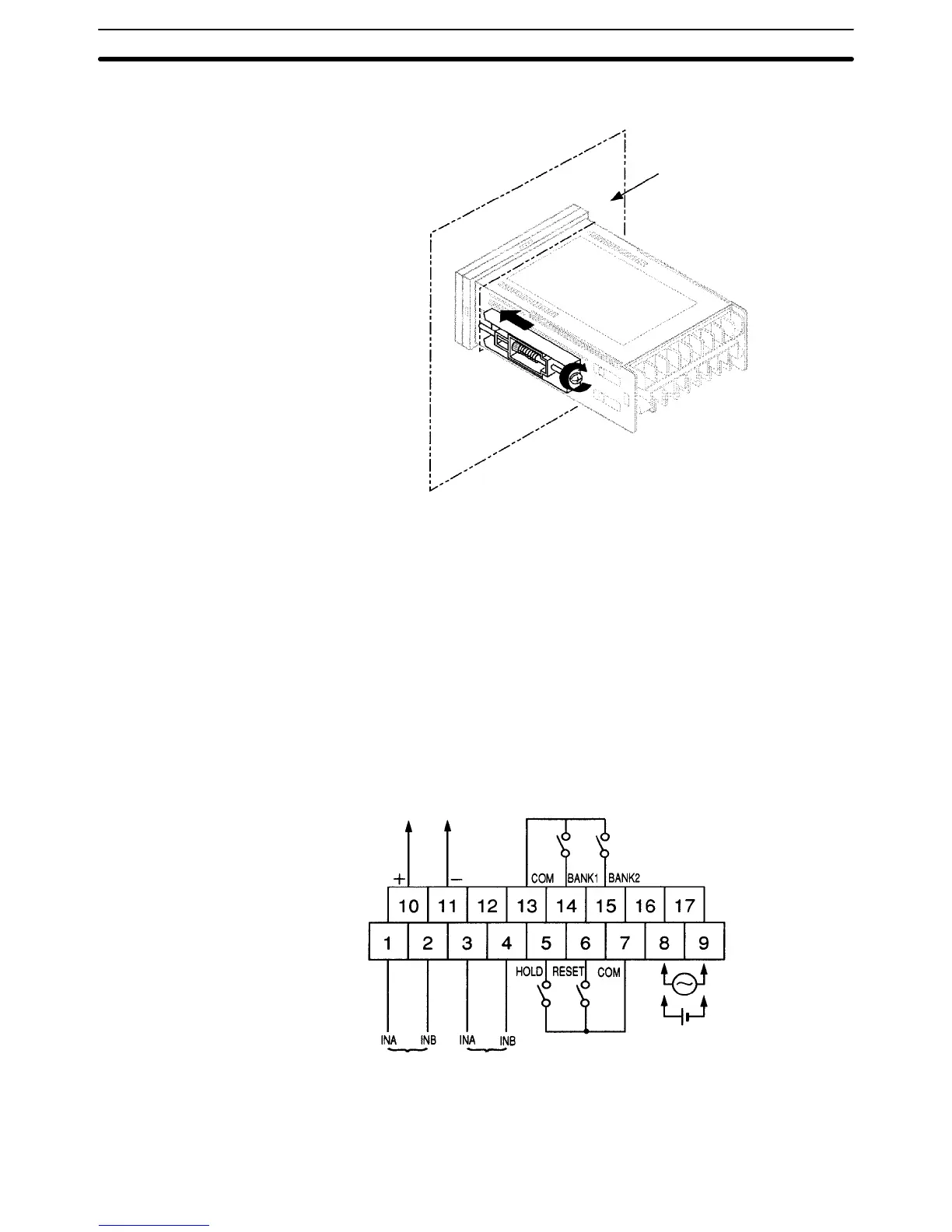

Mounting Method
Panel
1, 2, 3... 1. Insert the K3NR into the mounting hole on the panel.
2. Hook the fixture claws onto the side holes.
3. Mount a fixing metal to the right and left sides as shown above and while
keeping them in balance, alternately tighten each screw until the ratchet be-
comes idle.
2-2 Input Block
2-2-1 Terminal Arrangement
Sensor power supply
(80 mA max. at 12 VDC)
Open collector
input
Voltage pulse
input
100 to 240 to VAC
12 to 24 VDC
Note Voltage pulse input is available for the K3NR-NBjj-jj.
Input Block
Section 2-2
