6-1-3 Linear Output Range
The teaching function can be also used to set the linear output range of the
K3NR with the Linear Output Board.
• The H and L linear output ranges can be set using the actual measured value
instead of key input in the option menu.
• Follow the steps below to teach the setting value.
1, 2, 3... 1. Press the RESET/TEACH Key for more than one second while the parame-
ter is displayed. The process value will be displayed and the teaching indica-
tor will flash.
2. Press the RESET/TEACH Key again to retrieve the process value immedi-
ately before the key was pressed as a set value. The teaching indicator will
be lit and the parameter will be displayed. Press the Escape Key to interrupt
teaching.

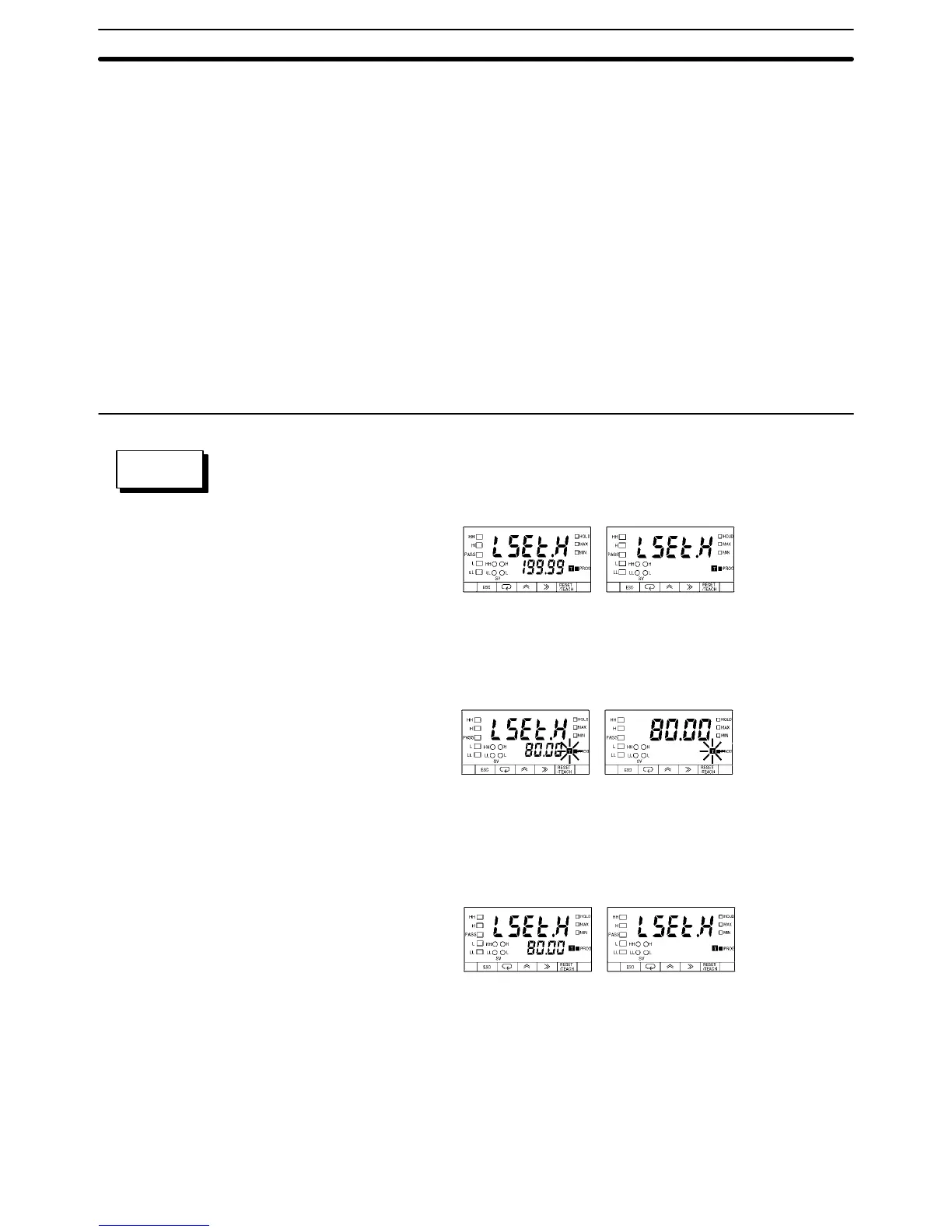

Follow the steps described below to set the H linear output range by using the teaching
function.
Set Value LED Display Model Basic Model
1, 2, 3... 1. Press the RESET/TEACH Key for more than one second while the parame-
ter is displayed. The process value will be displayed and the teaching indica-
tor will flash.
Set Value LED Display Model Basic Model
2. Press the RESET/TEACH Key again to retrieve the process value immedi-
ately before the key was pressed as a set value for changing. The teaching
indicator will be lit and the parameter will be displayed. Press the Escape
Key to interrupt teaching.
Set Value LED Display Model Basic Model
SETTING
EXAMPLE
Teaching Function Section 6-1
