98 LD Cart Transporter User's Manual 14766-000 Rev H
6.3 Standard Platform Connections
Each supply has an associated LED, which, when lit, indicates that the port is actively
powered. See LD Platform Core Indicators on page 128.
The Safe 22 - 30 VDC supply automatically gets disconnected when the E-Stop button is
pressed or an obstacle is detected.
Light Pole
Connector type Mini-Fit
®
3 x 2
Use Light tower (user-supplied)
Pin No. Designation Notes
1 GND Cable shield
2 LIGHT_P1 Red
3 LIGHT_P2 Yellow or orange
4 VBAT_IO_OUT4 VBAT @ 0.5A Max (shared with DIO)
5 LIGHT_P3 Green
6 LIGHT_P4 Buzzer

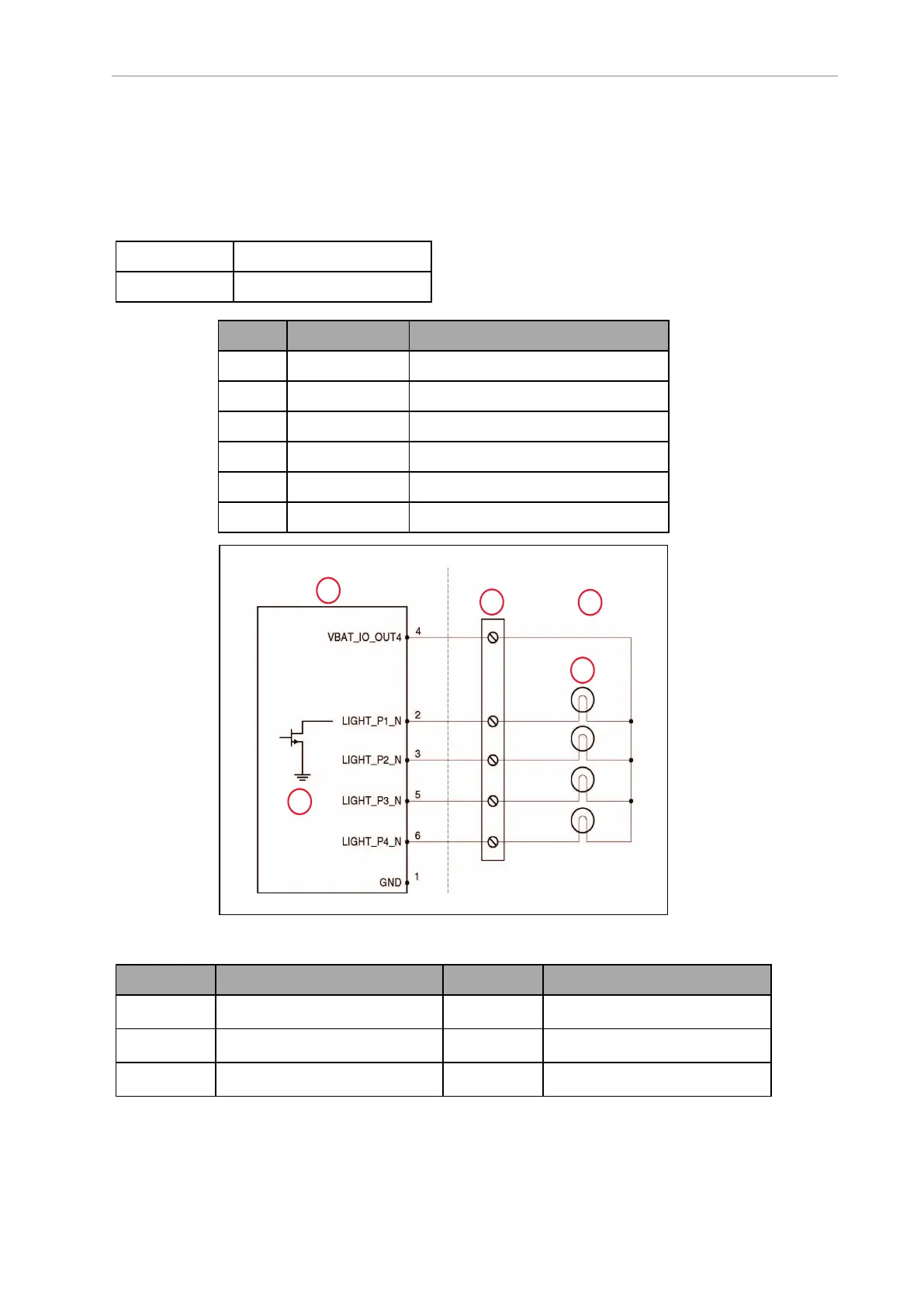

Figure 6-9. Sample Light Pole Diagram
Callout Description Callout Description
A Standard Equipment D Typical User Load
B Wiring Terminal Block E Equivalent Circuit
C User-Supplied Equipment
