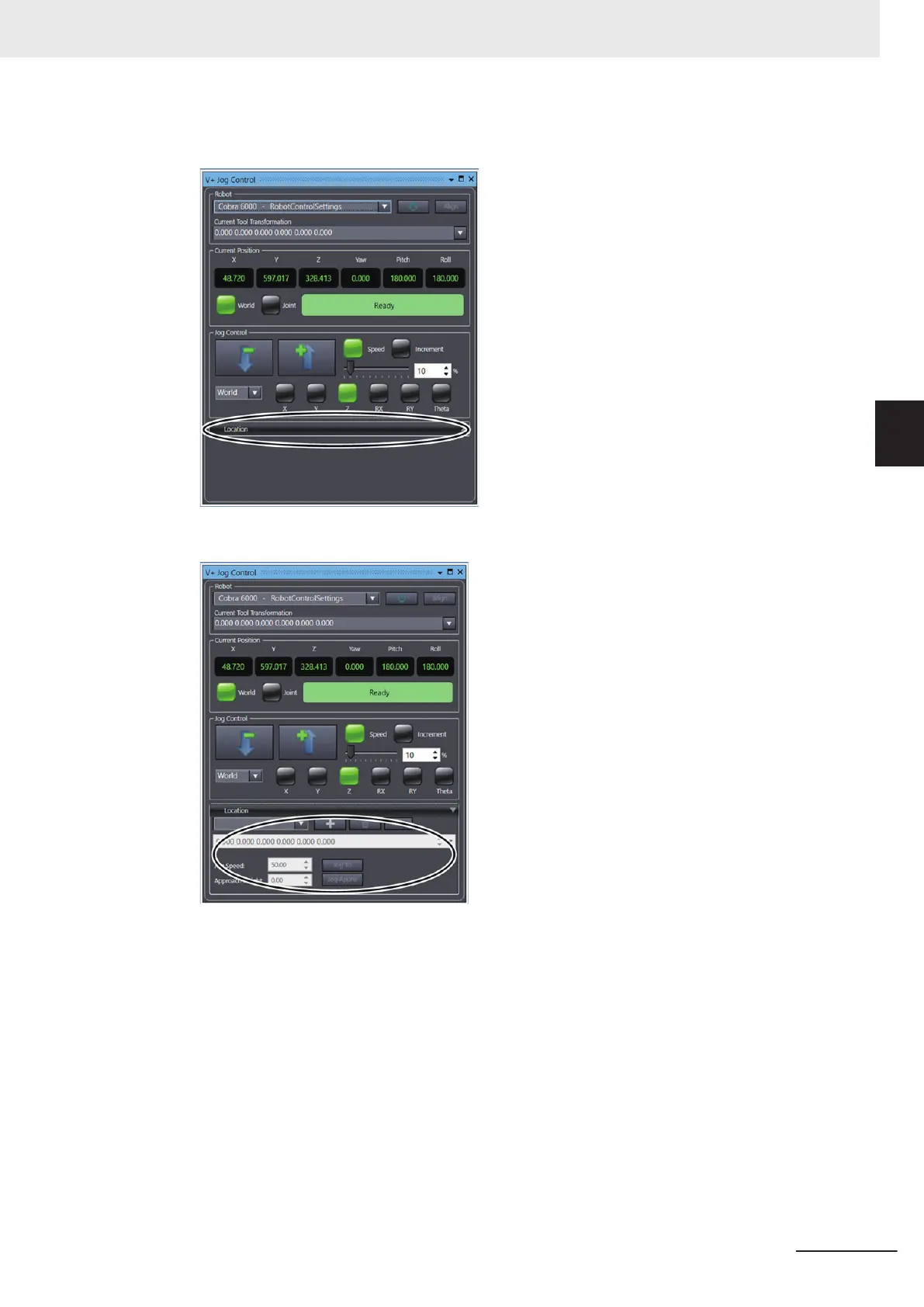

1 Click Location in the V+ Jog Control pane.
The field to set the position variable is displayed.
2 Selects a variable that you want to set the current position or an element of the array variable
from the drop-down list.
3 Implementation Example of Static Pick-and-place Equipment
3-65
NJ-series Robot Integrated System Startup Guide (O049)
3-3 Programming and Simulation Procedures
3
3-3-7 Teaching Positions

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
