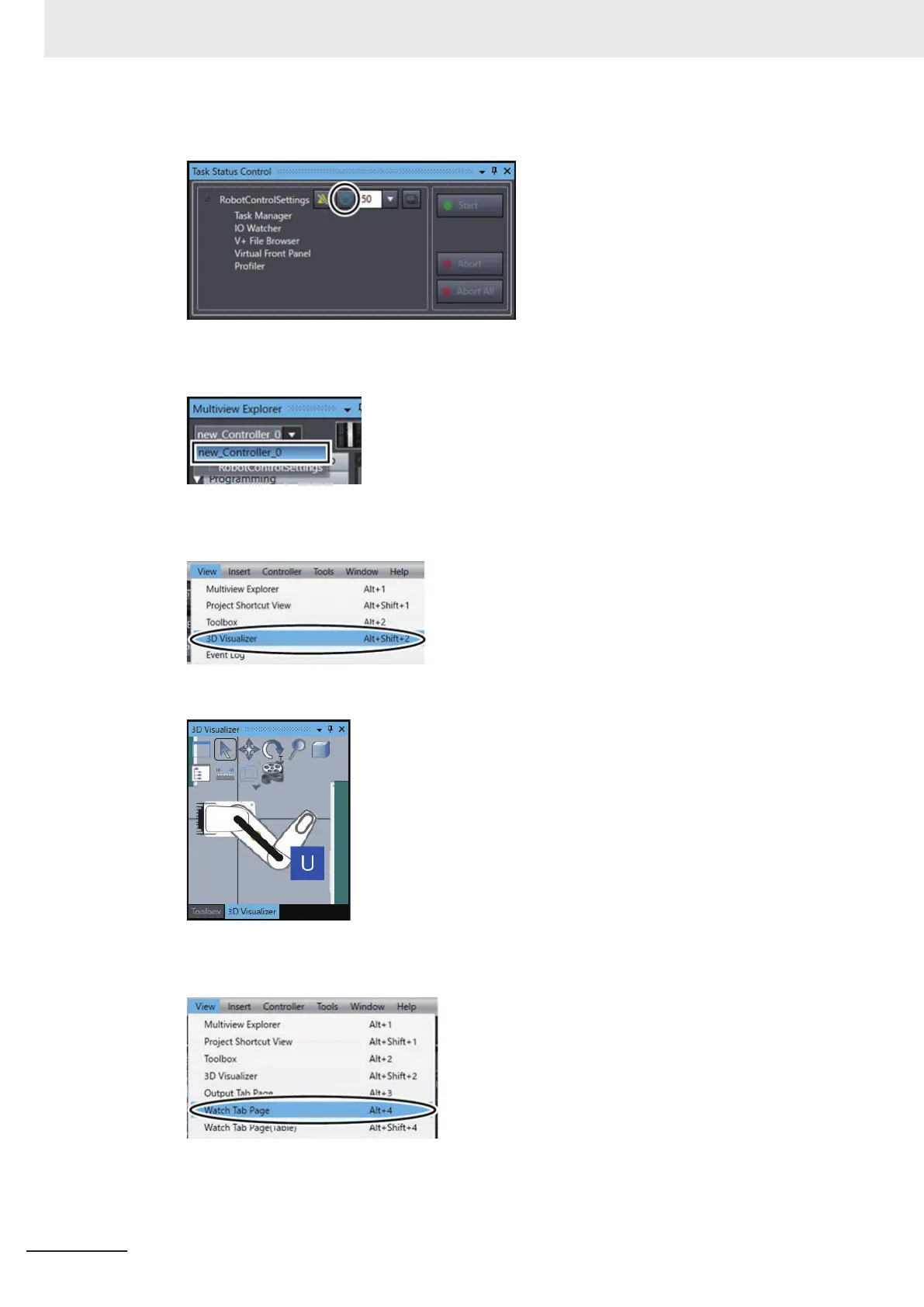

The power button turns from red to green.
5 In the Multiview Explorer, select new_Controller_0 from the device list.
6 Select 3D Visualizer
from the View menu on the main window of the Sysmac Studio.
The 3D Visualizer is displayed on the right side of the main window.
7 Select Watch Tab Page from the
View menu on the main window.
The Watch (Project)1 tab page appears at the bottom of the main window.
3 Implementation Example of Static Pick-and-place Equipment
3-72
NJ-series Robot Integrated System Startup Guide (O049)
