Application Manager added by this operation can only be used for simulation. Do not use it for
actual device

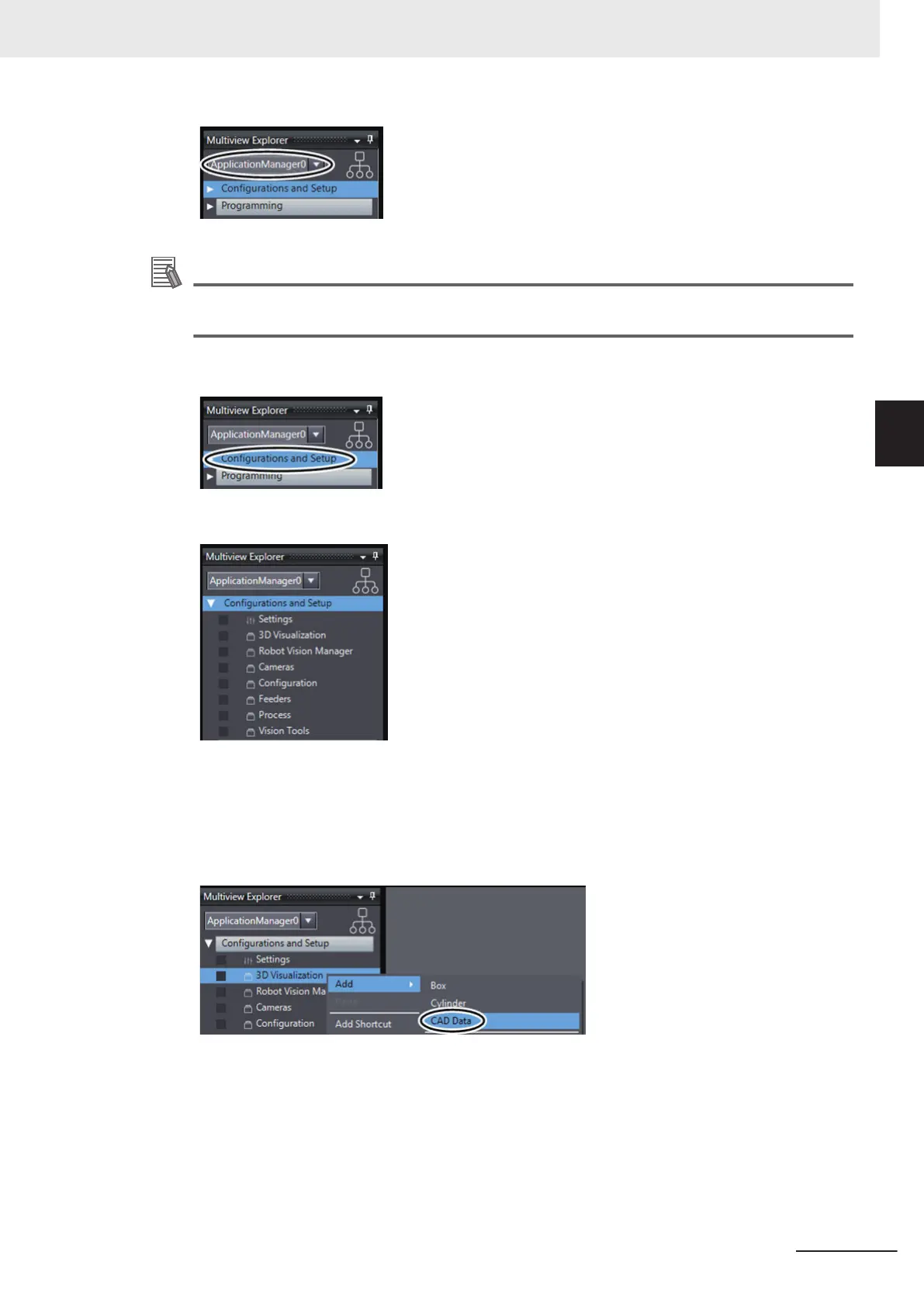

3 Click Configurations and Setup in the Multiview Explorer.
Setting items are displayed under Configurations and Setup in the tree.
4 Right-click 3D Visualization.
The menu commands are displayed.
5 From the menu, select Add - CAD Data.
The Import CAD File wizard starts.
3 Implementation Example of Static Pick-and-place Equipment
3-37
NJ-series Robot Integrated System Startup Guide (O049)
3-3 Programming and Simulation Procedures
3
3-3-5 Placing 3D Shape Data
