Importing 3D CAD Data
Import the 3D CAD data of the conveyors as 3D shape data to the Sysmac Studio.
This section describes the procedure to import the 3D CAD Data of Conveyor A and Conveyor B used
in the equipment model in 1-3 Operations of Static Pick-and-place Equipment
on page 1-5.

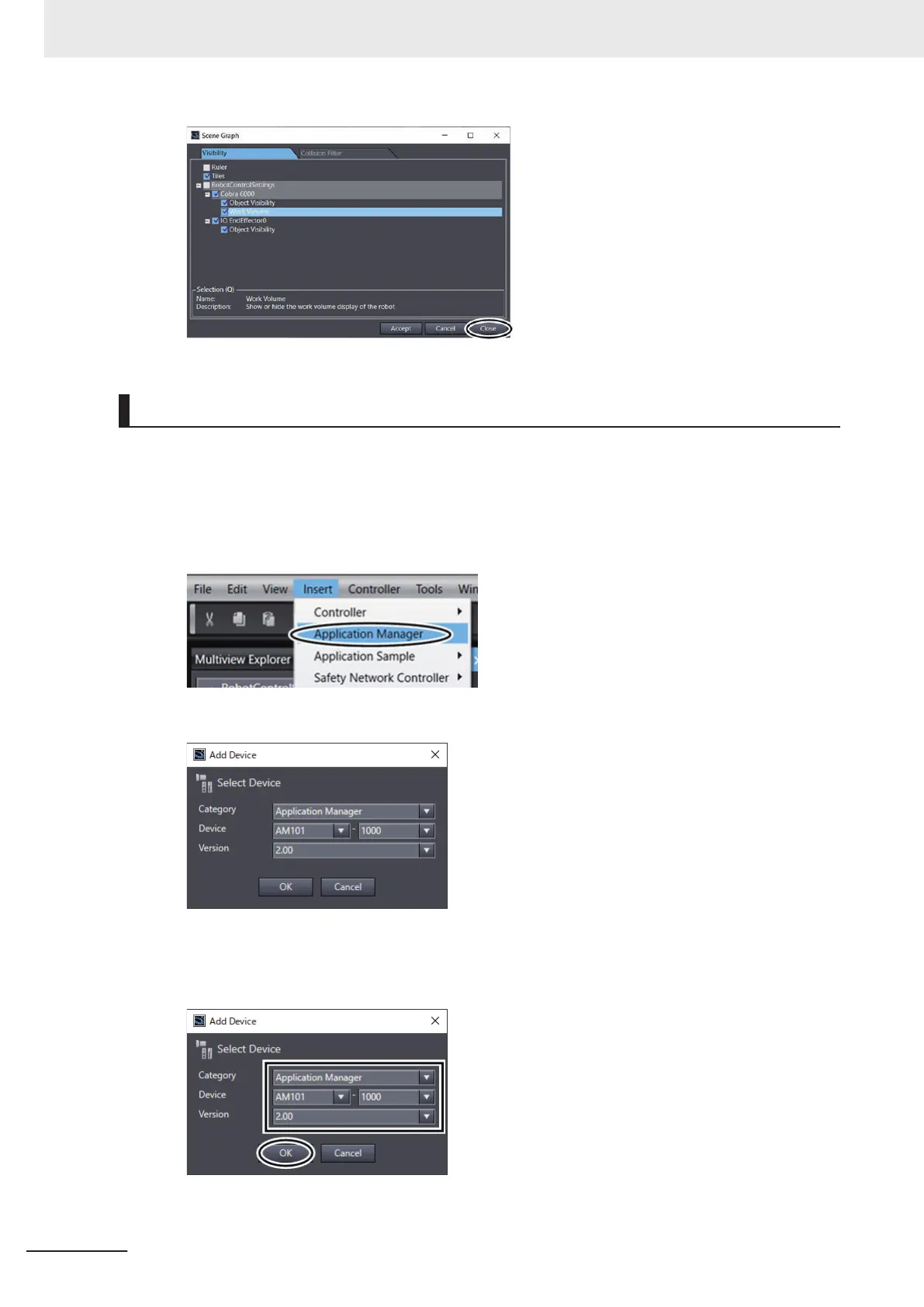

1 Select Application Manager from the Insert menu on the main window of the Sysmac Studio.
The Add Device dialog box is displayed.
2 Select Category, Device, and Version
as shown in the figure below, and then click the OK
button.
ApplicationManager0 is added to the drop-down list at the top of the Multiview Explorer
3 Implementation Example of Static Pick-and-place Equipment
3-36
NJ-series Robot Integrated System Startup Guide (O049)

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
