1-5 System Configuration
28
NSJ Controllers
For NSJ Controllers (except for the NSJ5) with NS system version 6.6 or higher, the
Ladder Monitor is built into the system program and thus a Memory Card is not required
except for the following operations.
Creating hard copies of screens (i.e., screen captures).
Displaying I/O comment files that were created using the I/O Comment Extracting Tool.
NSJ-series PT
SW1
SW2
SW3
LAMP01
0000.00
0000.01
ER 0002.00

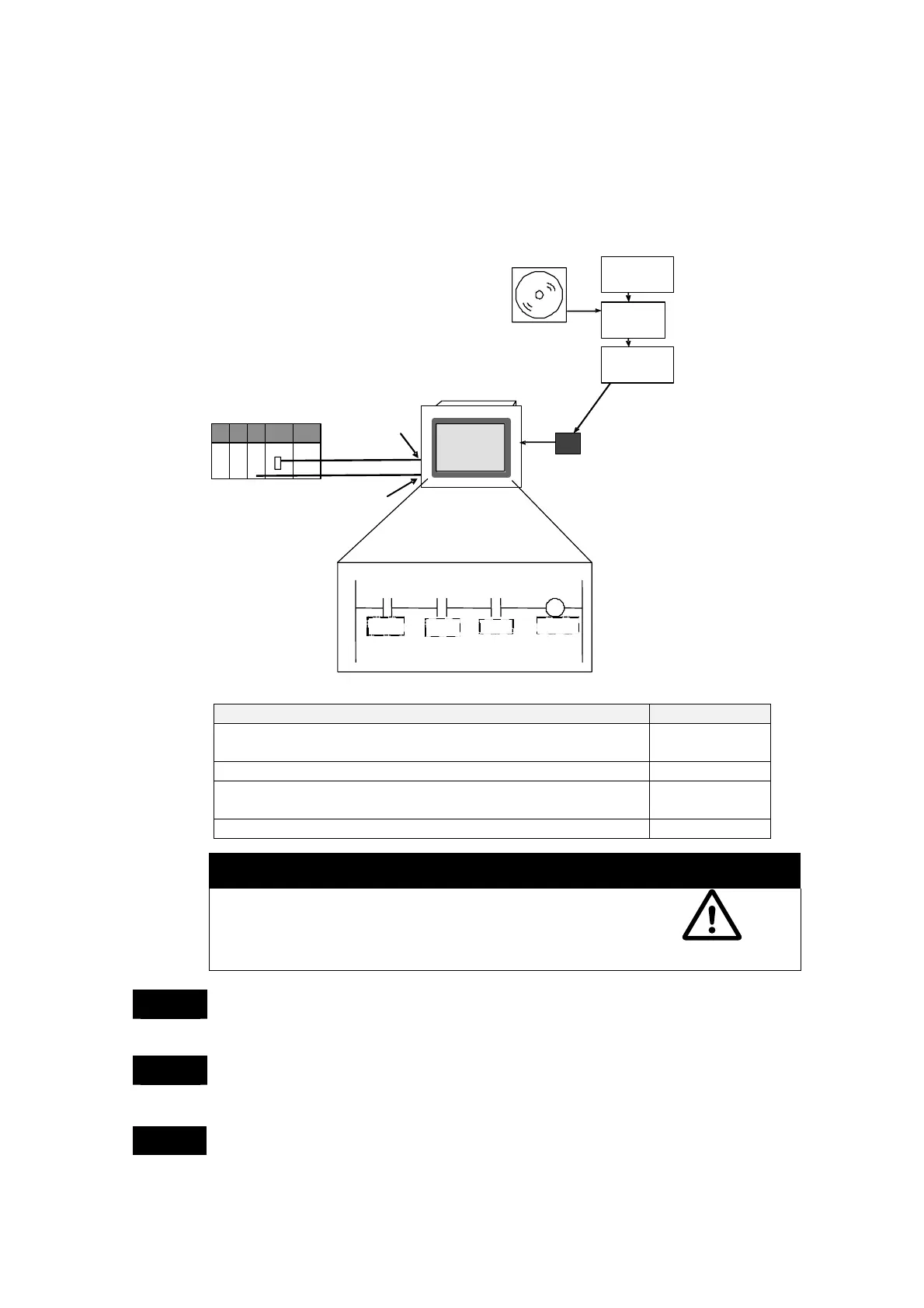

Ladder Monitor (Started form the System Menu.)
CS/CJ-series
PLC (host)
Ethernet Port
Serial Port A or B
Ethernet
RS-232C
1:N NT Link
Copy the file to the
ldrdata folder.
Install
I/O Comment File
for Ladder Monitor
CX-Programmer
CXT File
I/O Comment
Extracting Tool
CD-ROM
Memory Card
Screen capture data
Manuals
Name Cat. No.
Programmable Terminal NS Series (-V1/-V2)
Setup Manual/Programming Manual
V083-E1-01
V073-E1-01
SYSMAC One NSJ Series NSJ Controller Operation Manual W452-E1-01
SYSMAC CX-Programmer User Manual Ver. 7.2
CX-Server User Manual
W446
SYSMAC CS/CJ Series Programming Console Operation Manual W341
Caution
Turn OFF the +5 V power supply before connecting or
disconnecting the RS-232C cable.
The +5 V circuit in the RS-232C equipment may be destroyed by
the inrush current from the conversion unit.
Note
After connecting a communications cable, always secure it with the screws.
Otherwise, the cable may disconnect, causing operation to fail.
Note
A Memory Card containing the Ladder Monitor application is required for version-2
NS-series PTs and NSJ Controllers with system version 6.5 or lower.
Note
The entire system may stop depending on how the power is turned ON/OFF. Follow
the correct procedure when turning the power ON/OFF. Otherwise, the system may
operate unpredictably.
