3-4 Displaying I/O Comments
3-4-2 Switching the I/O Comment Display
65

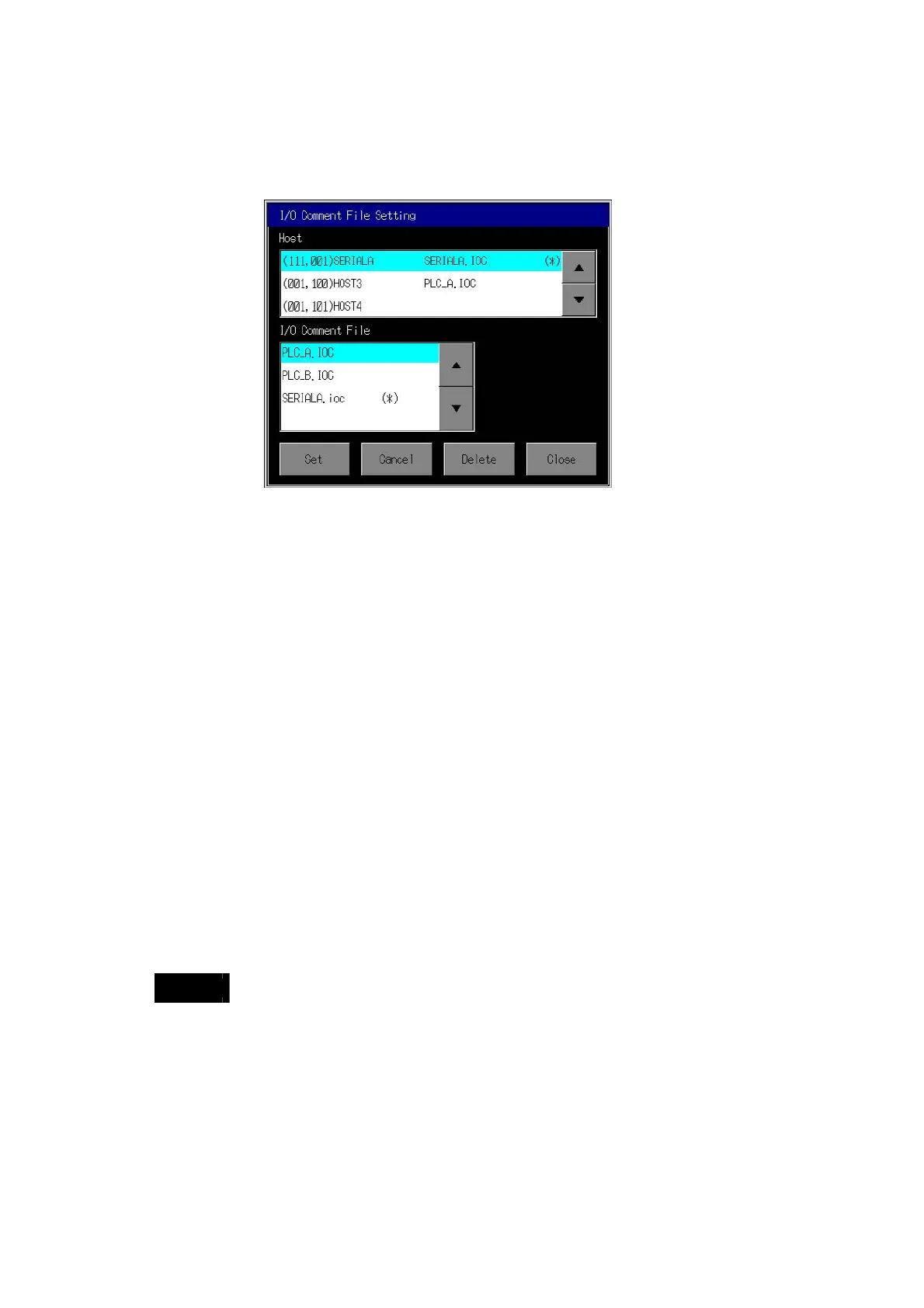

2. Select I/O Comment File Setting from the Various Settings Dialog Box.
3. Select the host where the I/O comment file is set.
4. Select from the list of I/O comment files the one that is to be displayed.
• For each currently registered host in the Host area, the name of the I/O comment file
that is set will be displayed.
• There are two types of I/O comment files: global (G-filename.IOC) and local
(L-filename.IOC). The file names are displayed in the I/O Comment File Setting Dialog
Box. Selecting a file name selects both the global and local I/O comment files.
• I/O comment files read from the PLC are displayed as hostname.IOC. In addition, an
asterisk is displayed after the name in the Host area in the dialog box.
• The names of I/O comment files saved on a Memory Card or in the PT are displayed in
the list appearing in the I/O Comment File area.
• If I/O comment files are saved under the same name both on the Memory Card and in
the PT, the file in the PT will be read.
• To delete an I/O comment file set for a host, select the file name in the Host area and
press the Cancel Button.
• To delete an I/O comment file, select from the I/O Comment File list the file that is to be
deleted and then press the Delete Button.
5. Press the Set Button.
6. Press the Close Button.
For details on using the I/O Comment Extracting Tool, refer to the I/O Comment
Extracting Tool Operation Manual.
Note
Up to 100 I/O comment files can be displayed in the I/O Comment File list in the I/O
Comment File Setting Dialog Box.
