194
Sys
tem Ma
in
tena
nce
Section 6-
11
Setting fr
om the System Menu

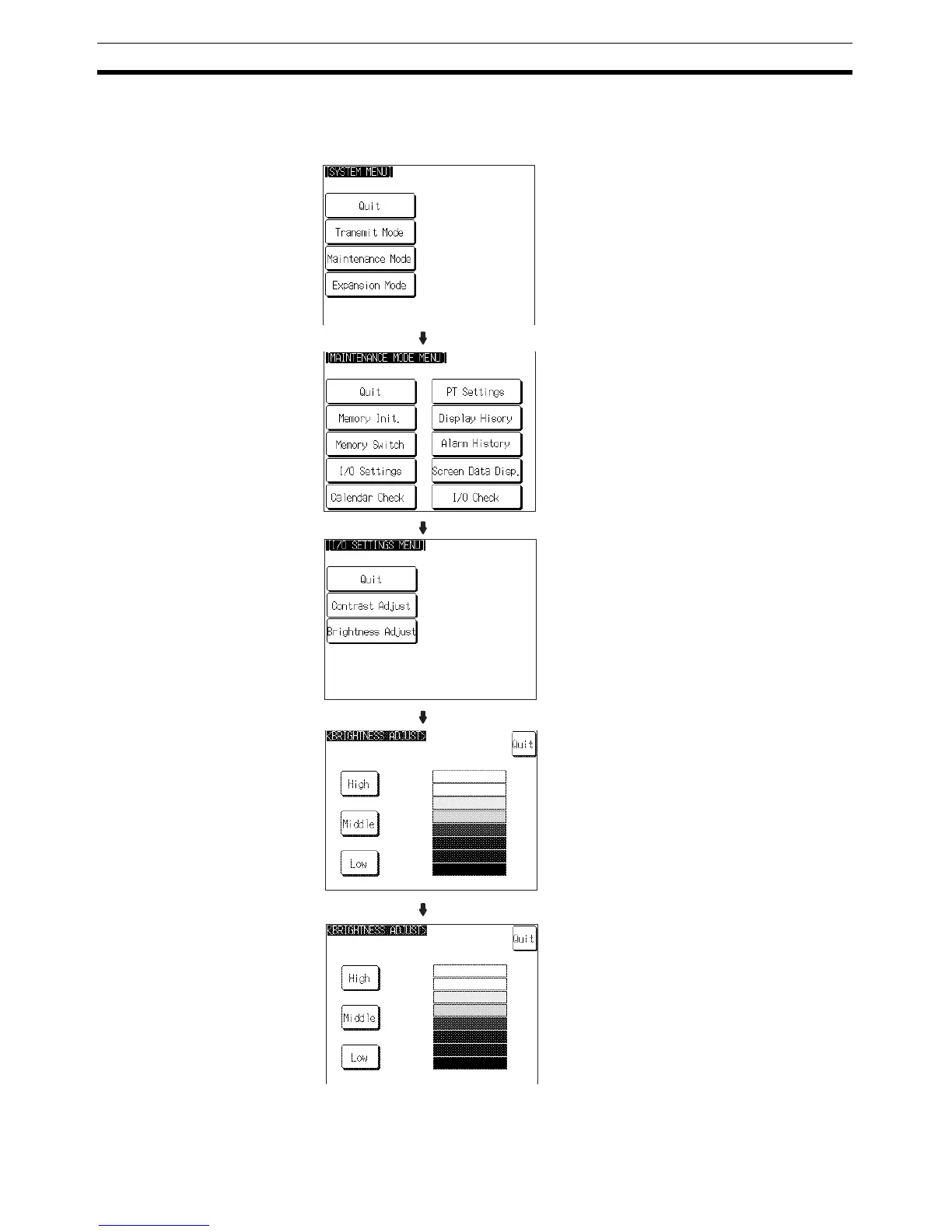

Adjust t
he backli
ght br
ightne
ss by follo
wing
the menu o
peration
from the S
ys-
tem
M
e
nu s
how
n
be
low.
Select Maintenance Mode.
Select I/O Settings.
Select Brightness Adjust.
Press Quit.
V
er 4.12
Adjust the contrast with the High, Middle
,
and Low touch s
witches in the left half of
the screen.
The contrast is set and the NT31/NT31C
retur
ns to the I/O SETTINGS MENU
screen.
210
