Connecting to the RS-232C Port at the Host Section 4-1
The following are the communications conditions that can be used in the
memory link method. For the host (a personal computer, an FA computer,
etc.), its setting should be compatible to one of the communications condi-
tions listed in the following table. Set the same communications conditions at
the NT31/NT31C by the memory switch. (page 166).

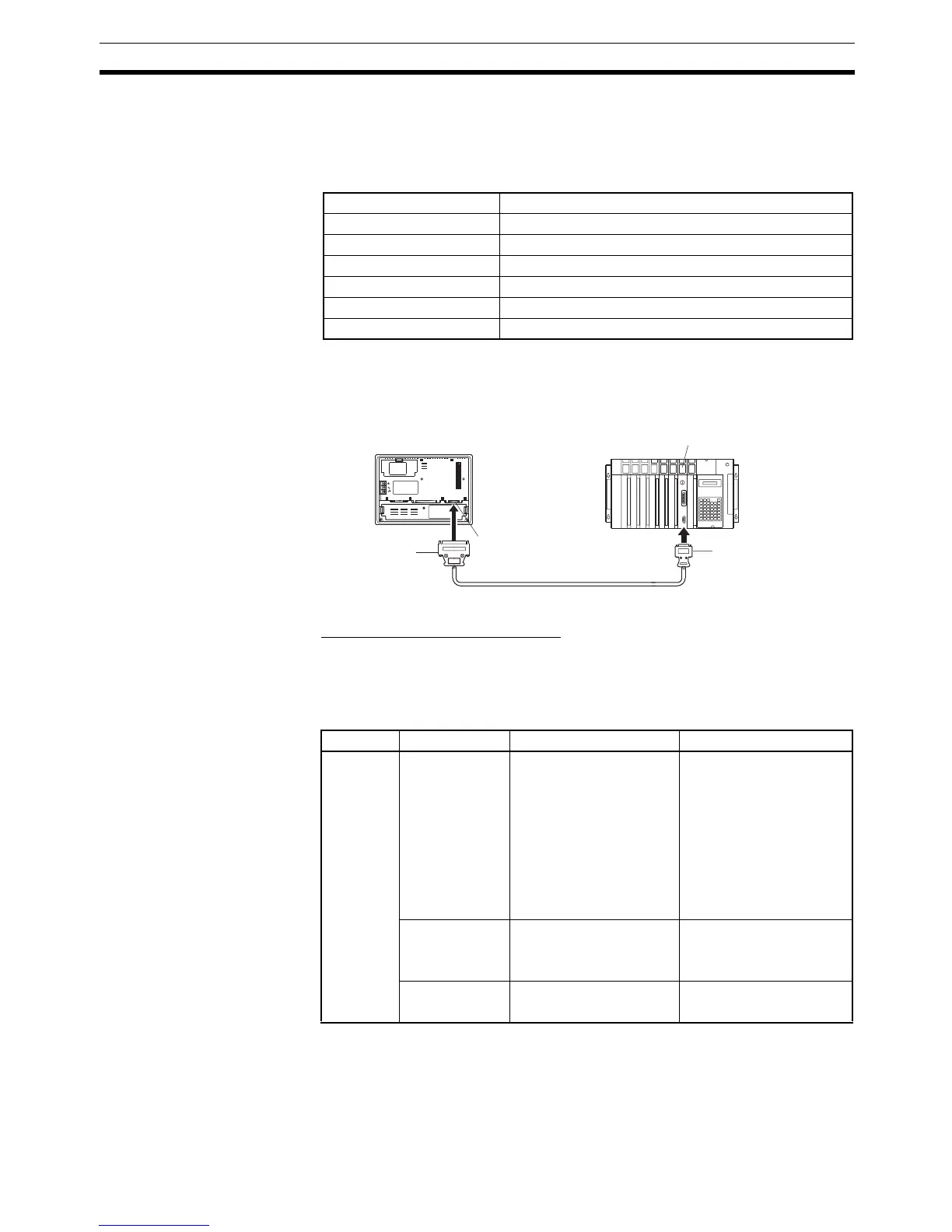

4-1-2 Connecting Directly between RS-232C Ports
The method for connection between the RS-232C ports of the NT31/NT31C
and the host is described here.
Recommended Connector Cable
When making the connector cable, as far as possible use the recommended
connectors, connector hoods, and cables indicated in the table below. Some
Units come supplied with one connector and one connector hood.
Check the required components and prepare them in advance.
Item Settings at the host
Input/Output port RS-232C
Communications speed 1200, 2400, 4800, 9600, 19200, 38400 bps.
Data bits length 7 bits, 8 bits
Stop bits length 1 bits, 2 bits
Parity None, even, odd
Flow control None, RS/CS, XON/XOFF
Name Model Remarks Delivered with
Connector XM2A-0901 9-pin
Made by OMRON
CS-series CS1G/CS1H/
CS1D
CJ-series CJ1G/CJ1H/
CJ1M
C-series CQM1, C200HS,
C200HX/HG/HE(-Z)E,
CVM1/CV-series CPU
Units
CV500-LK201
XM24-2501 25-pin
Made by OMRON
C500-LK203
CV500-LK201
C200H-LK201-EV1
DB-25P 25-pin
Made by JAE
3G2A5-LK201-EV1
3G2A6-LK201-EV1
Host link unit/CPU
NT31/NT31C
9-pin connector
Cable with RS-232C connectors
9-pin connector
or 25-pin
connector
Serial port A (RS-232C, 9-pin type)
Serial port B (RS-232C, 25-pin type)
SYSMAC
CS/CJ-series PLC
C-series PLC,
CVM1/CV-series
PLC, SRM1
