240
System Maintenance
Section
6-1
1
Select
“
I/F Check
”.
Select “
Comm. Port A
”
or
“
Comm. Port B
”.
The check
screen is displayed (
“Check
screen”
, page 237).
After
confirming the result of the check, press
“
Quit
”
. The NT31/NT31C returns
to the
“
I/F CHECK MENU
”
screen.

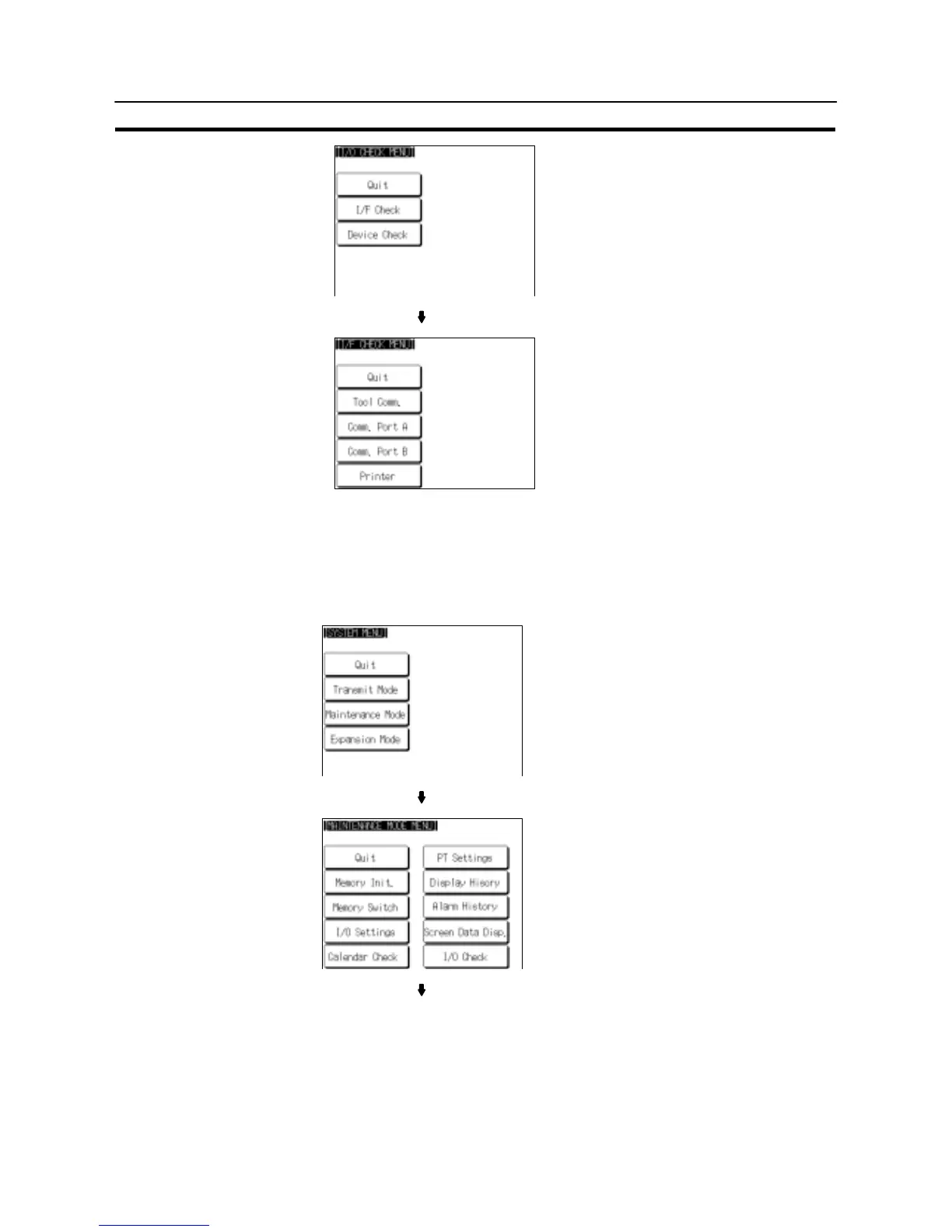

Checking Communication with a Printer
Check
communication with a printer by following the menu operation from the Sys-
tem Menu shown below
.
Select “
Maintenance Mode
”.
Select
“
I/O Check
”.
250
252
