7-6 Lamps
[Function Outline]

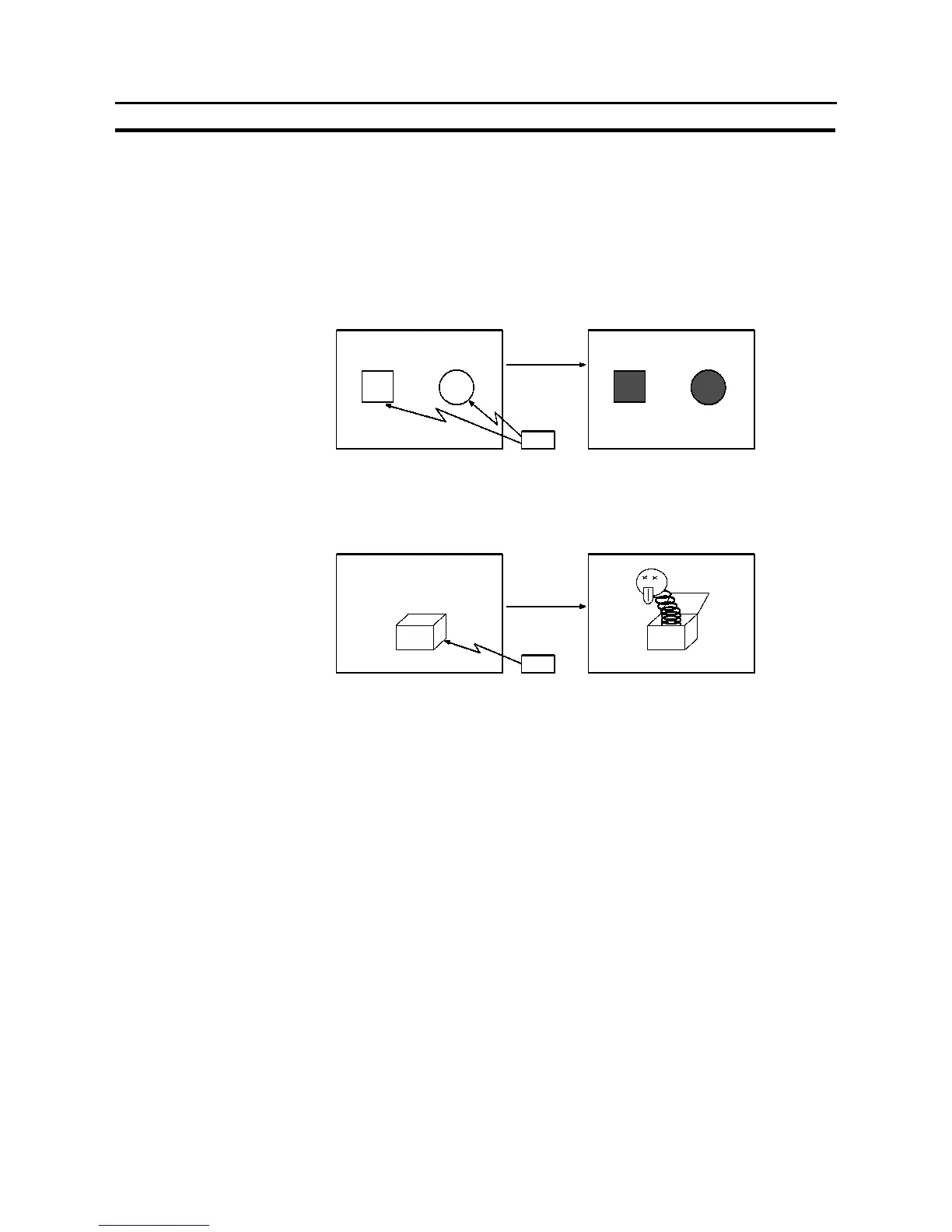

Lamps are graphics that change in accordance with the status of a set bit. Lamps
are classified into the two major categories indicated below.
S Normal (standard) lamps
Normal (standard) lamps change the display status (OFF/ON/flashing) of fixed
display graphics.
ON
ON
ON status
Host
OFF status
S Image/library lamps
Image/library lamps display different graphics (image/library data) inthe ON and
OFF statuses.
ON status
Host
OFF status
ON
Lamps are arranged and set on the screen when creating screen data with the
Support Tool.
