142
Connecting to the Host’s RS-422A/485 Port
Section 5-2

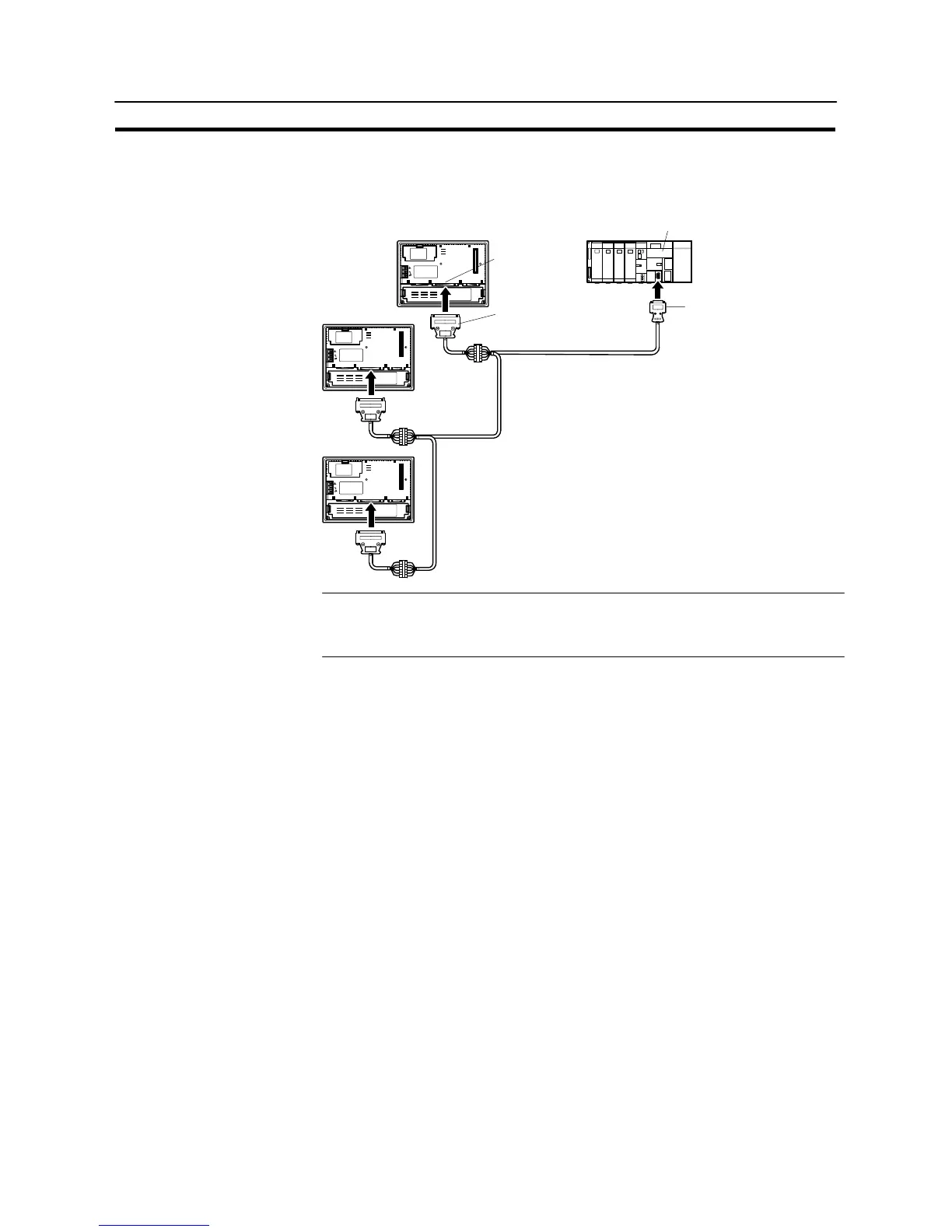

5-2-5 1:N Connection among RS-485 Ports
The connection method in which the RS-485 ports of multiple NT31/NT31Cs and
one host are connected in a 1:N connection is described here.
NT31/NT31C
25-pin connector
9-pin connector
Serial port B
(RS-485, 25-pin type)
CPU
RS-485 cables
(max. total length 500 m)
CS1G/H
C200HX/HG/HE-ZE
24V
DC
PRINTERPORT B
Max. 2 m
Relay terminal block
Reference: Communication using the RS-422A type NT link (1:N) method is possible when a
serial communication board is installed at CS1 series CS1G/H, and when a com-
munication board is installed at the C200HX/HG/HE (–ZE).
To Next Page
