Preparations at the NT31/NT31C
Section 2-2
2-2 Preparations at the NT31/NT31C
Before starting operation, the names and functions of the parts of the
NT31/NT31C are described here as a confirmation. A method of hardware set-
tings is also described.
2-2-1 Names and Functions of Parts

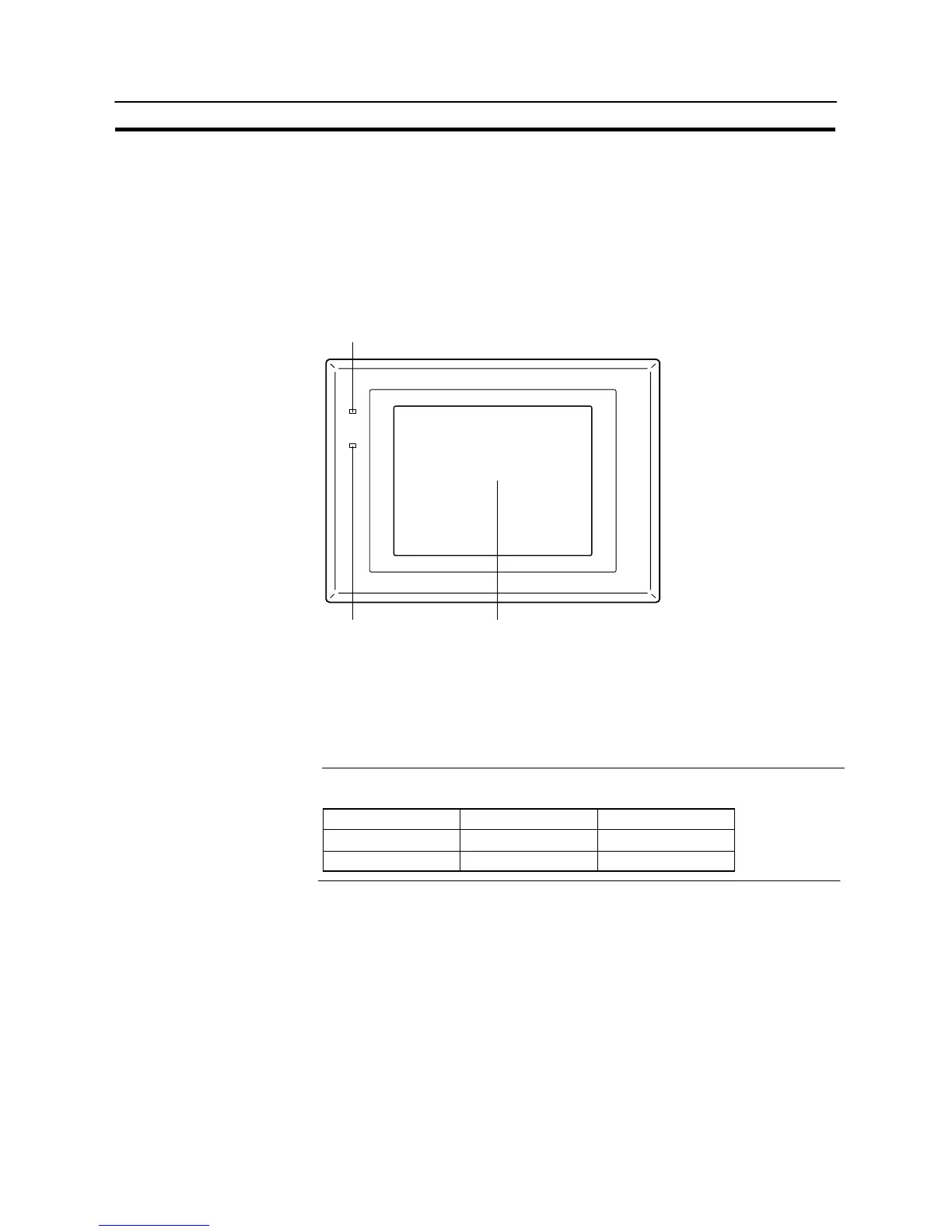

Front View
POWER
RUN
POWER LED
Lit in green when the power is supplied.
RUN LED
@ Lit in green while the
unit is in the RUN mode.
@ Lit in orange or red
when the battery is low
(orange in the RUN
mode, red in other
modes).
Display
The NT31 has a monochrome LCD
screen with a backlight, and the NT31C
has an STN color LCD screen with a
backlight.
The whole area of the screen is a touch
panel which works as an input device.
Reference: The NT31/NT31C comes in two body colors.
NT31 NT31C Body Color
NT31-ST121-EV1 NT31C-ST141-EV1 Beige
NT31-ST121B-EV1 NT31C-ST141B-EV1 Black
