Inputting Character Strings
Section 7-14

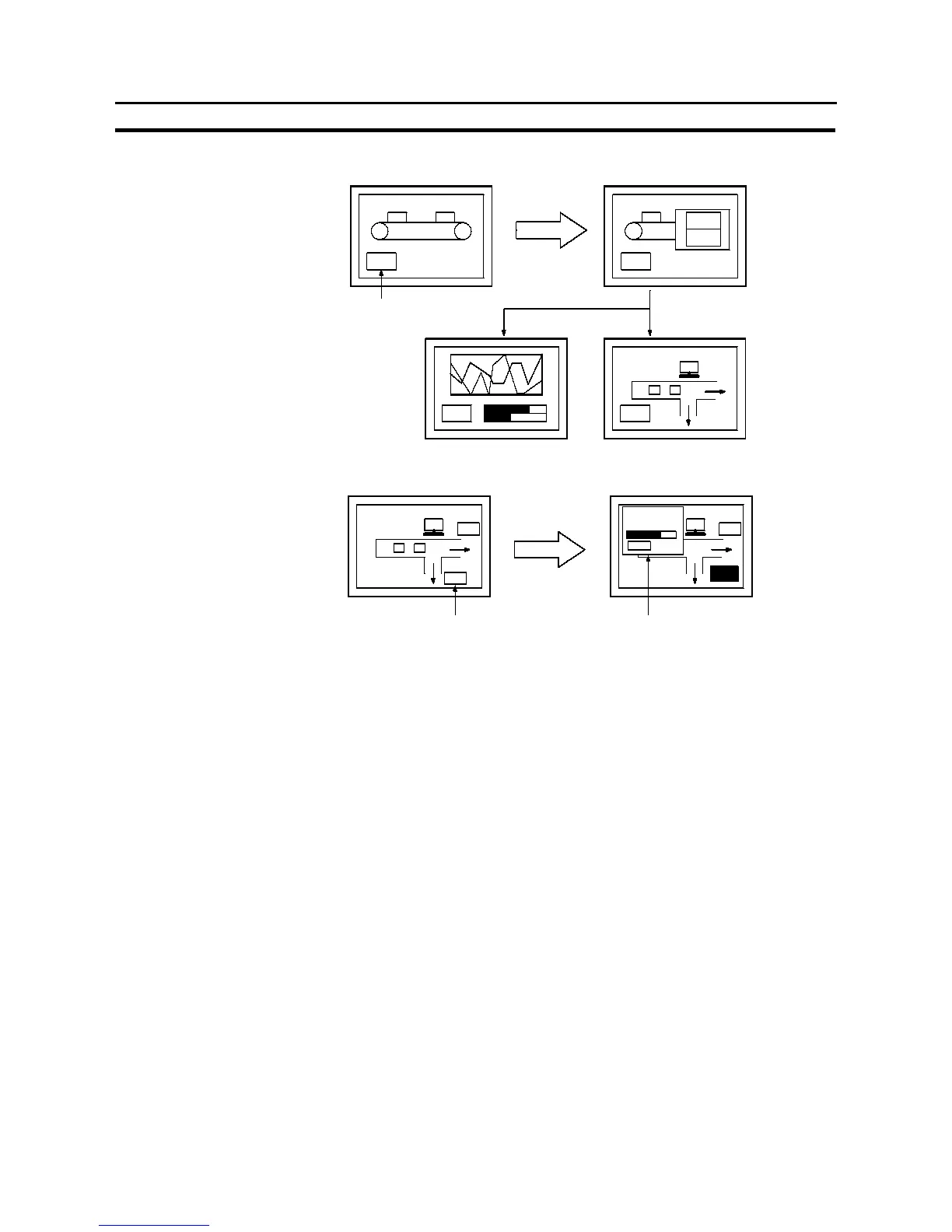

- By registering multiple screen switching keys (touch switches), menus for
screen switching can be created.
Press here
When “Graph” is pressed
When “Next” is pressed
MENU
MENU
MENU MENU
Next
Graph
- The window can also be used as a sub screen for displaying a detailed infor-
mation as required.
Graphls
Window for detailed information
Press here
Graph
Graph
Graph
TARGET
ACTUAL
CLOSE 69.6%
348
500
7-14-2 Window Type
The following two types of window are provided.
S Global window
This window can be displayed all the time while the NT631/NT631C is running
regardless of the screen currently displayed. However, the global window is not
displayed with the following screens.
- System menu
- System initializing screen (Screen No.9000)
- Error screen
- Programming console function screen (Screen No.9020)
- No-display screen (Screen No. 0)
Global window stays at the same position even when the screen is switched.
(It can be moved also.)
Only one global window can be displayed at the same time.
Global window can be opened, closed or moved only by the operation of win-
dow control area from the host. For details of window control area, refer to
“Window Control Area” (page 279 ).
