S Impossible applications of the color designation “transparent”
- Background of character strings displayed from character string memory
tables
- Background of numeric values displayed from numeral memory tables
- Background of numeric values and character strings in numeral setting input
fields and character string input fields
- Background of characters indicating percentages (%) on graphs
- Display color of lamps and touch switches when lit
- Background color of temporary input fields
- Display color of alarm list/history
Screen Background Color

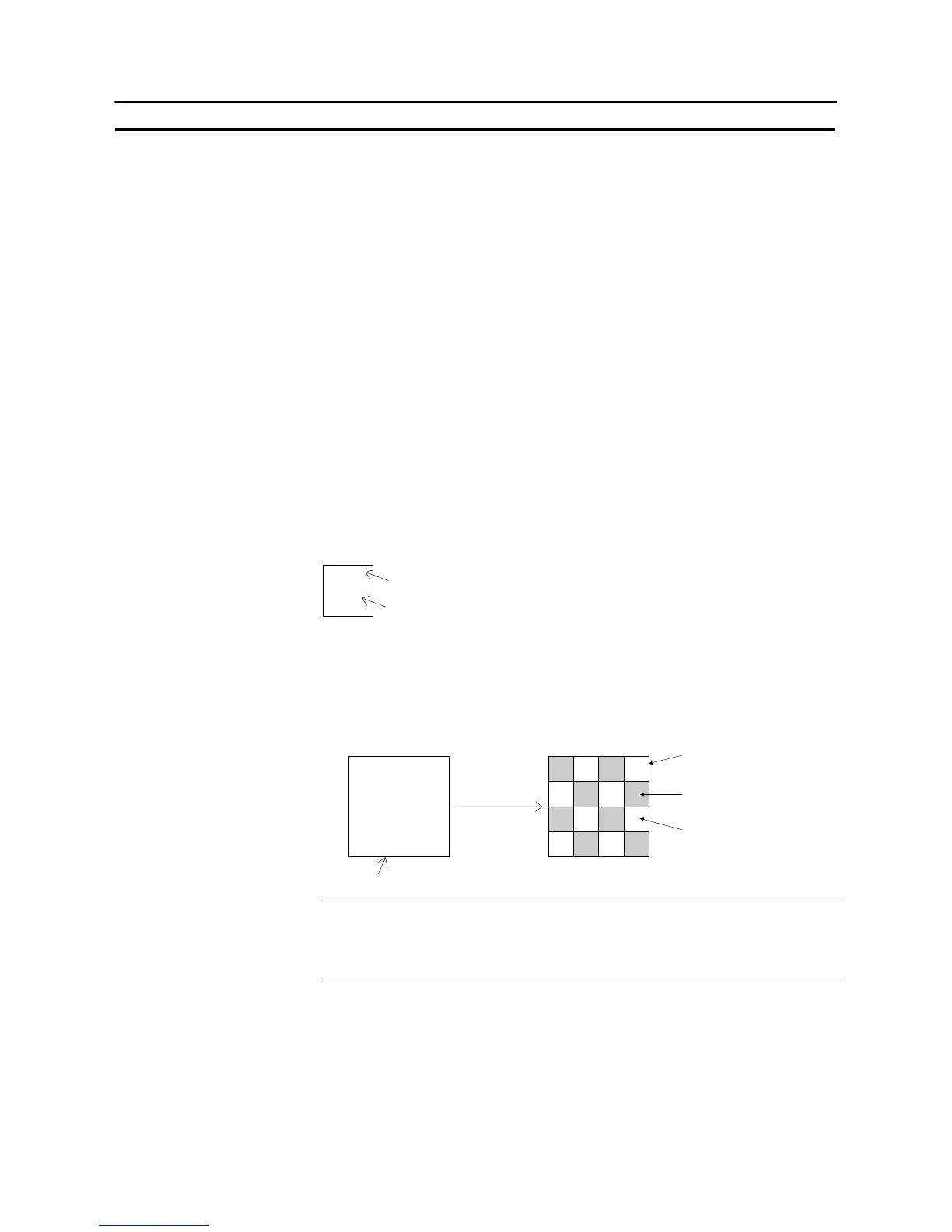

The background color of the entire screen can be designated with the “Back-
ground” screen attribute. Screen attributes are properties set for each screen with
the Support Tool.
Text Display Color
The color of characters (character color) and that of their rectangular frames
(background color) can be specified.
A
Background color
Character color
Graphics Display Color
The colors of lines and tiling patterns can be specified for graphics.
The colors that can be designated for tiling patterns are the color of the pattern
itself, the background color of the pattern, and the color of the outline of the tiled
area.
Outline color (Border)
Pattern display color
(Foreground)
Tiling
Pattern background color
(Background)
Line color
Reference: When a lamp, a touch switch, and a graphic are displayed in color, part of the
frames of the display elements may be invisible because of the combination of the
background, outline, and tiling colors. This is a phenomenon peculiar to a color
LCD, not a failure of the system. In such a case, change the color combination.
