Changing Numeral and Character String Display
Section 8-5
[Example of Use]
S Setting at the Support Tool
Set the word and the contents with the Support Tool as indicated below.
- Allocated word in the PT status control area:
00100 (word 100 in the CIO area)

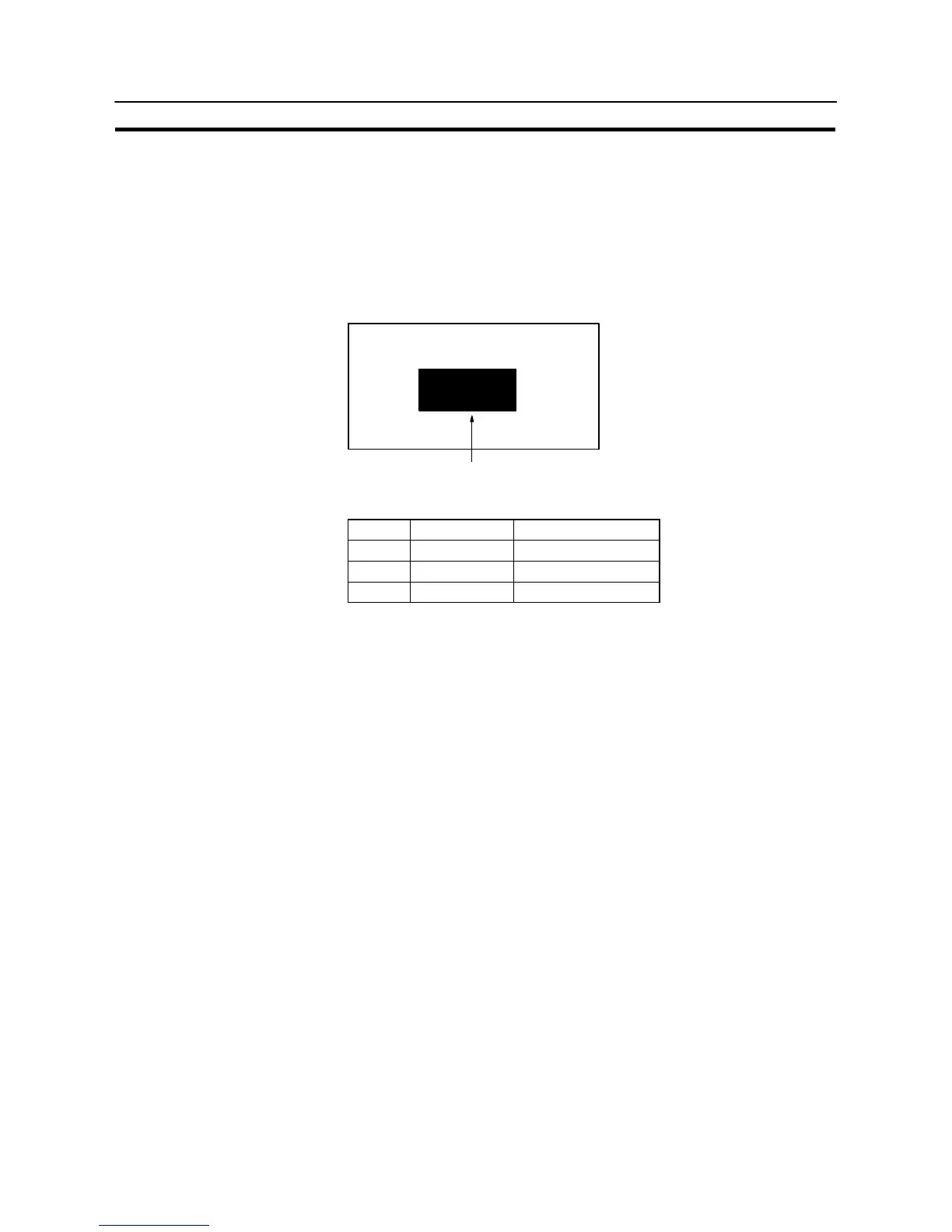

- Contents to be registered for the screen:
Character string memory table No. 4
Character string memory table No. 4
LINE 1
NORMAL
Contents of setting in character string memory tables
No. Contents Number of digits
4
NORMAL 4 digits
10
FAULT 4 digits
11
NORMAL 4 digits
