Display and Setting of Calendar Clock
Section 8-10
Numeral memory table No. 251 (2-digit display)
Numeral memory table
No. 252 (2-digit display)
Numeral memory table
No. 250 (2-digit display)
Numeral memory table
No. 249 (2-digit display)
Numeral memory table
No. 247 (2-digit display)
420
95018
Numeral memory table No. 248 (2-digit display)
//
//
19 98
S PC program

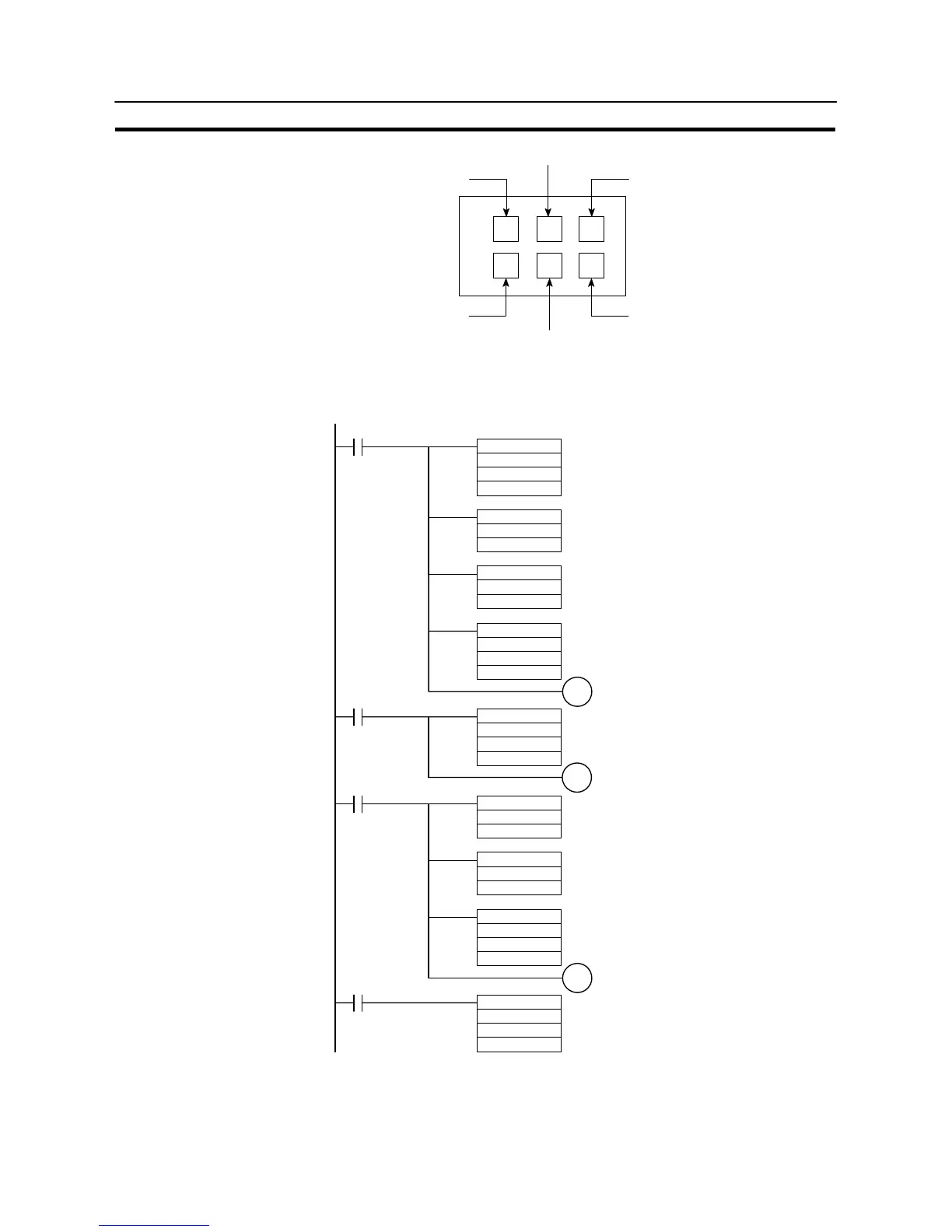

Create the PC ladder program as shown below.
00000
@XFER(70)
#0004
AR18
DM0000
@MOV(21)
#0254
102
@MOV(21)
#0264
101
TIM001
@ANDW(34)
#FFF7
103
TIM
001
#0010
(1.0S)
@ORW(35)
#000C
103
103
TIM
002
#0010
(1.0S)
103
TIM002
@MOV(21)
#0255
102
@MOV(21)
#0265
101
TIM003
@ANDW(34)
#FFF7
103
TIM
003
#0010
(1.0S)
@ORW(35)
#000C
103
103
103
(1)
(2)
(3)
(4)
