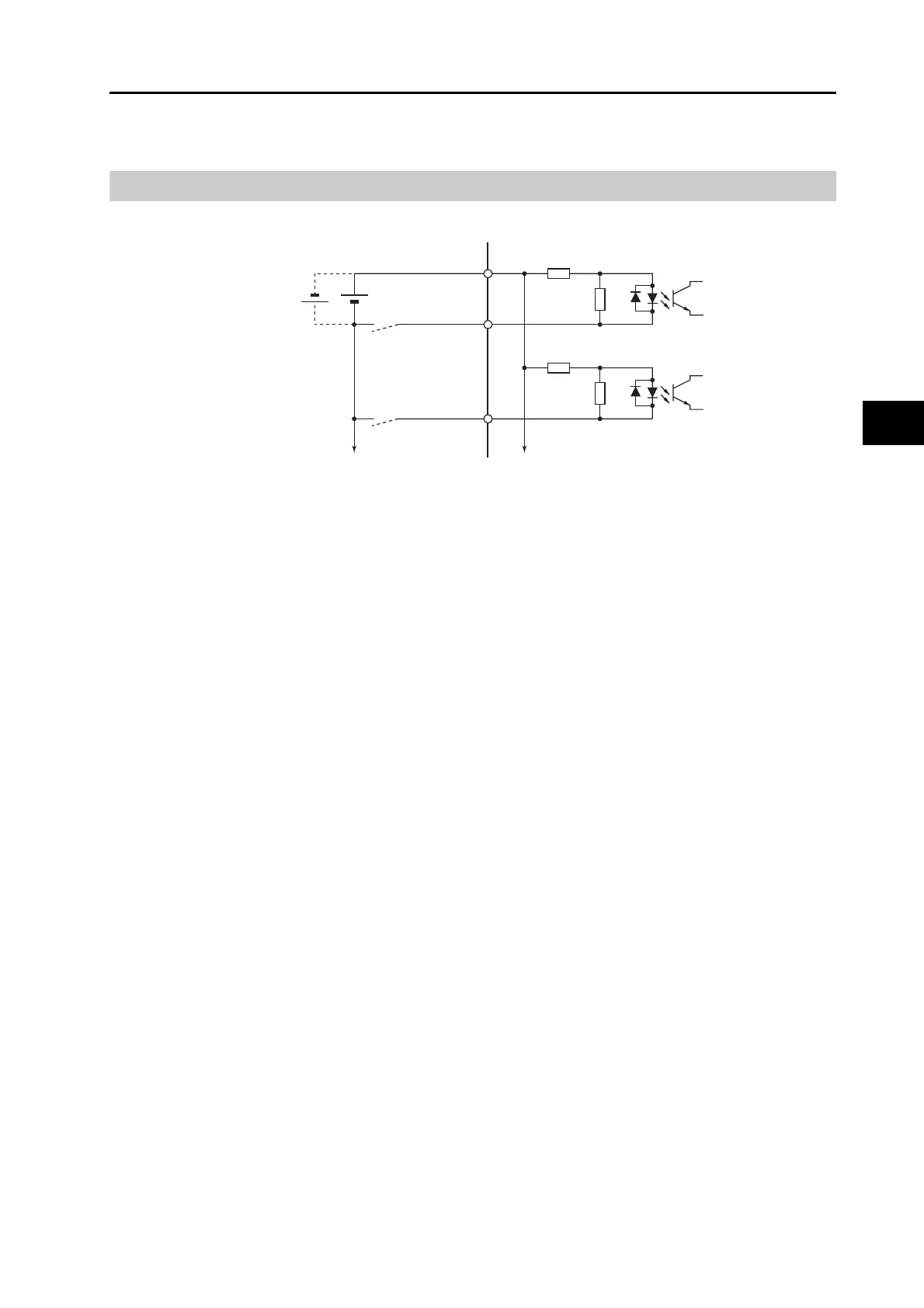

Omron OMNUC G5 Series User Manual

3-16
3-1 Servo Drive Specifications
OMNUC G5-series AC Servomotors and Servo Drives User’s Manual (with Built-in EtherCAT Communications)
3
Specifications
Control Input Circuits
4.7 kΩ
1.0 kΩ
5
7
IN1
IN2
6+24VIN
To other input circuit
External power supply
12 VDC ± 5% to
24 VDC ± 5%
Power supply capacity
50 mA or more
(per unit)
Signal level
ON level: 10 V or more
OFF level: 3 V or less
To another input circuit GND common
Photocoupler input
4.7 kΩ
1.0 kΩ
Photocoupler input

Omron OMNUC G5 Series Specifications

General

Brand	Omron
Model	OMNUC G5 Series
Category	Servo Drives
Language	English
