Omron OMNUC G5 Series User Manual

2-21
2-4 External and Mounting Dimensions
OMNUC G5-series AC Servomotors and Servo Drives User’s Manual (with Built-in EtherCAT Communications)
2
Models and External Dimensions
2-4 External and Mounting Dimensions
This section describes the external dimensions and the mounting dimensions of Servo Drives,
Servomotors, and peripheral devices.
Servo Drive Dimensions
The dimensional description starts with a Servo Drive of the smallest motor capacity, which is
followed by the next smallest, and so on.
Single-phase 100 VAC: R88D-KNA5L-ECT-R/-KN01L-ECT-R (50 to 100 W)
Single-phase/3-phase 200 VAC: R88D-KN01H-ECT-R/-KN02H-ECT-R
(100 to 200 W)

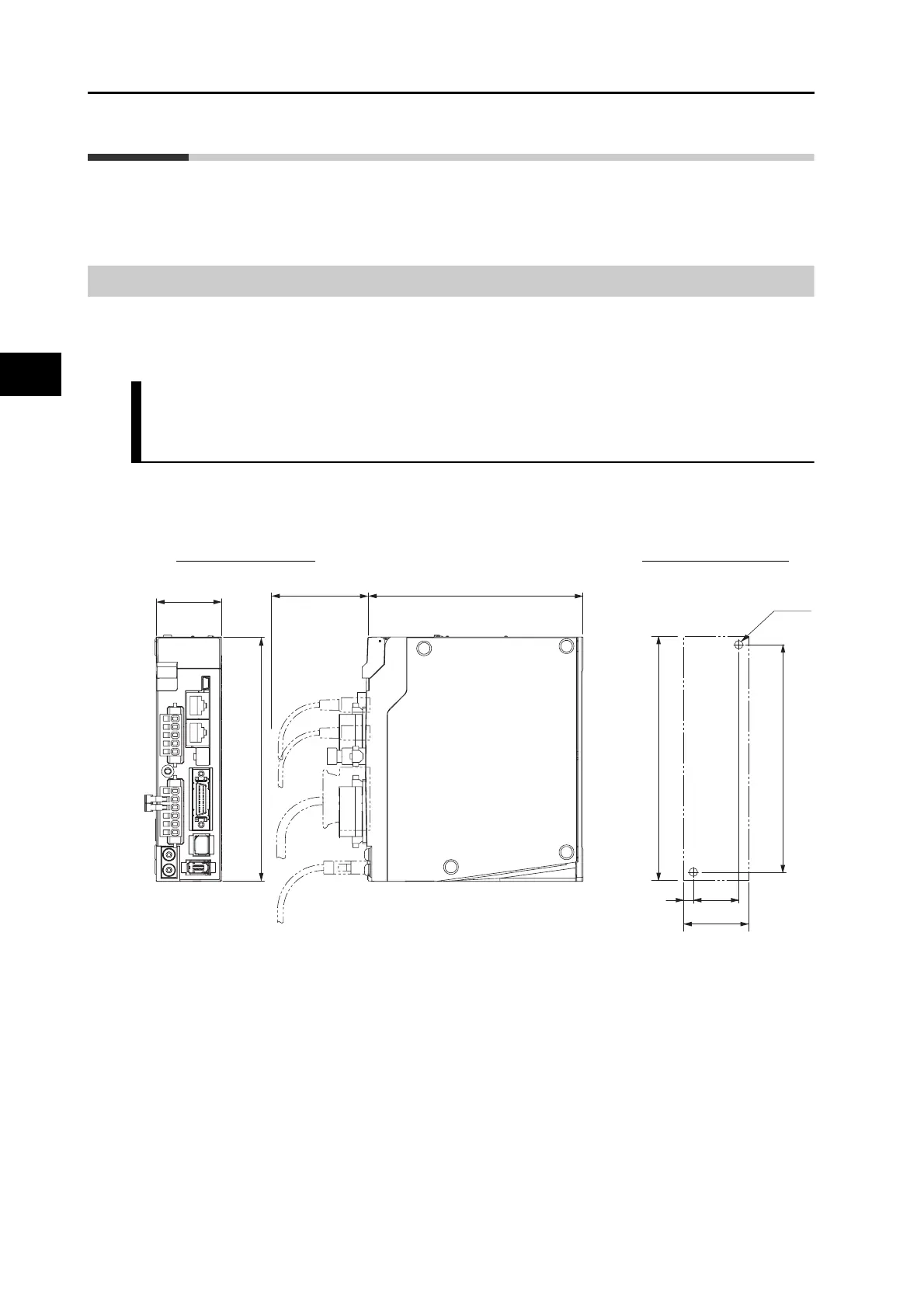

Wall Mounting
External dimensions Mounting dimensions
13270
40
150
40
28
6
150 140
φ5.2
