3-69
3-4 Cable and Connector Specifications
OMNUC G5-series AC Servomotors and Servo Drives User’s Manual (with Built-in EtherCAT Communications)
3
Specifications

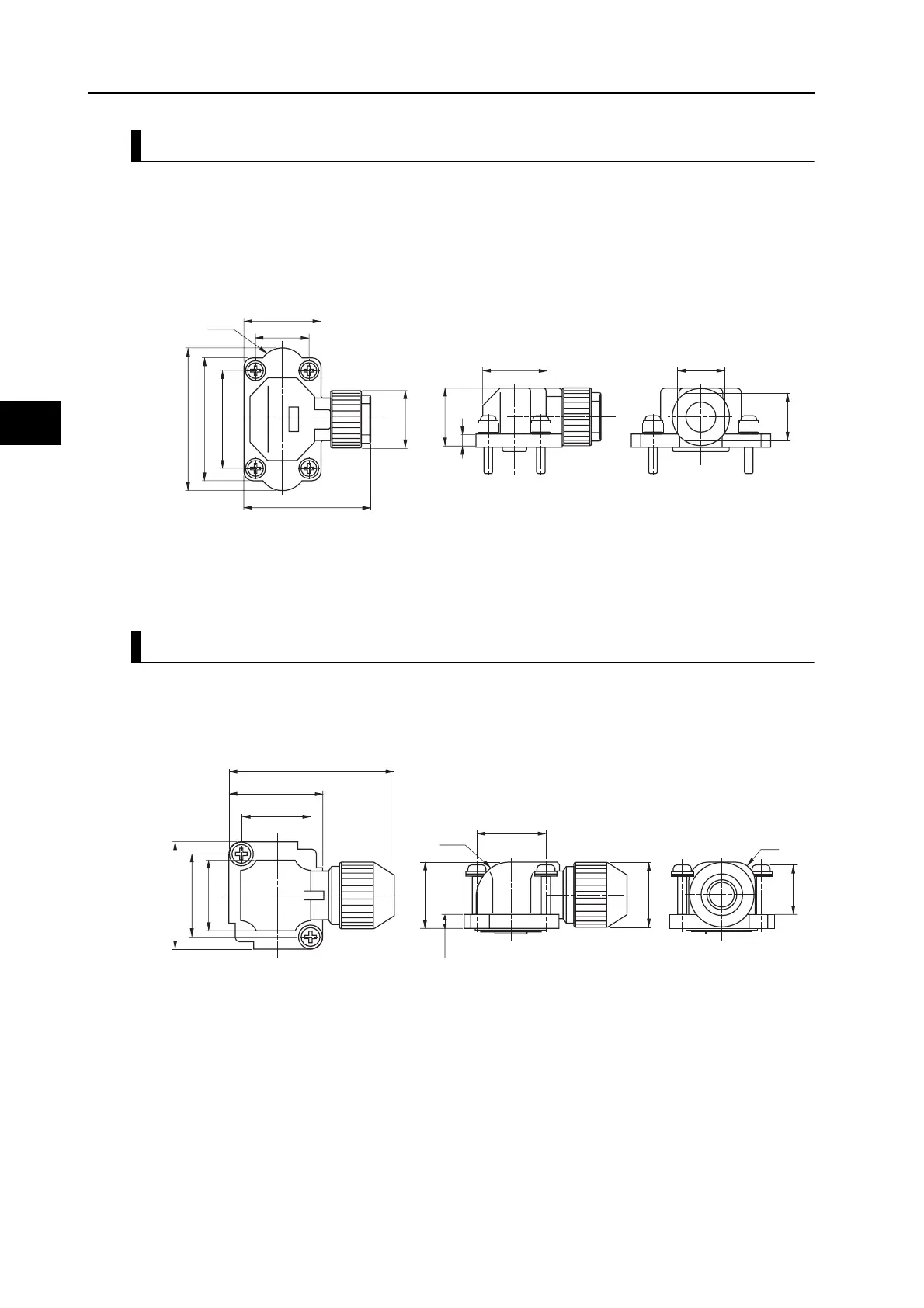

Power Cable Connector (R88A-CNK11A)
This connector is used for power cables.
Use it when preparing a power cable by yourself.
Angle plug model JN8FT04SJ1
(Japan Aviation Electronics)
Socket contact model ST-TMH-S-C1B-3500-(A534G)
(Japan Aviation Electronics)
Brake Cable Connector (R88A-CNK11B)
This connector is used for brake cables.
Use it when preparing a brake cable by yourself.
Angle plug model JN4FT02SM-R
(Japan Aviation Electronics)
Socket contact model ST-TMH-S-C1B-3500-(A534G)
(Japan Aviation Electronics)
17.6
28.8
φ13
32
27.6
22
12
R5.5
14.7
13.5
3
11
11
Angle plug direction can be reversed.
Note: You cannot install the angle plug to Servomotors of 50 W
and 100 W when its cable pull-out direction is reversed.
Applicable motors
100-V, 3,000-r/min Servomotors of 50 to 400 W
200-V, 3,000-r/min Servomotors of 50 to 750 W
29.6
12.3
17
12.5
14.3
19
2.5
11.8
R6
12.7
φ11.6
(8.8)
R4
Angle plug direction can be reversed.
Applicable motors
100-V, 3,000-r/min Servomotors of 50 to 400 W
200-V, 3,000-r/min Servomotors of 50 to 750 W
