Omron R88D-1SN10H-ECT User Manual

2 - 129
2 Models and External Dimensions
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
2-4 External and Mounting Dimensions
2

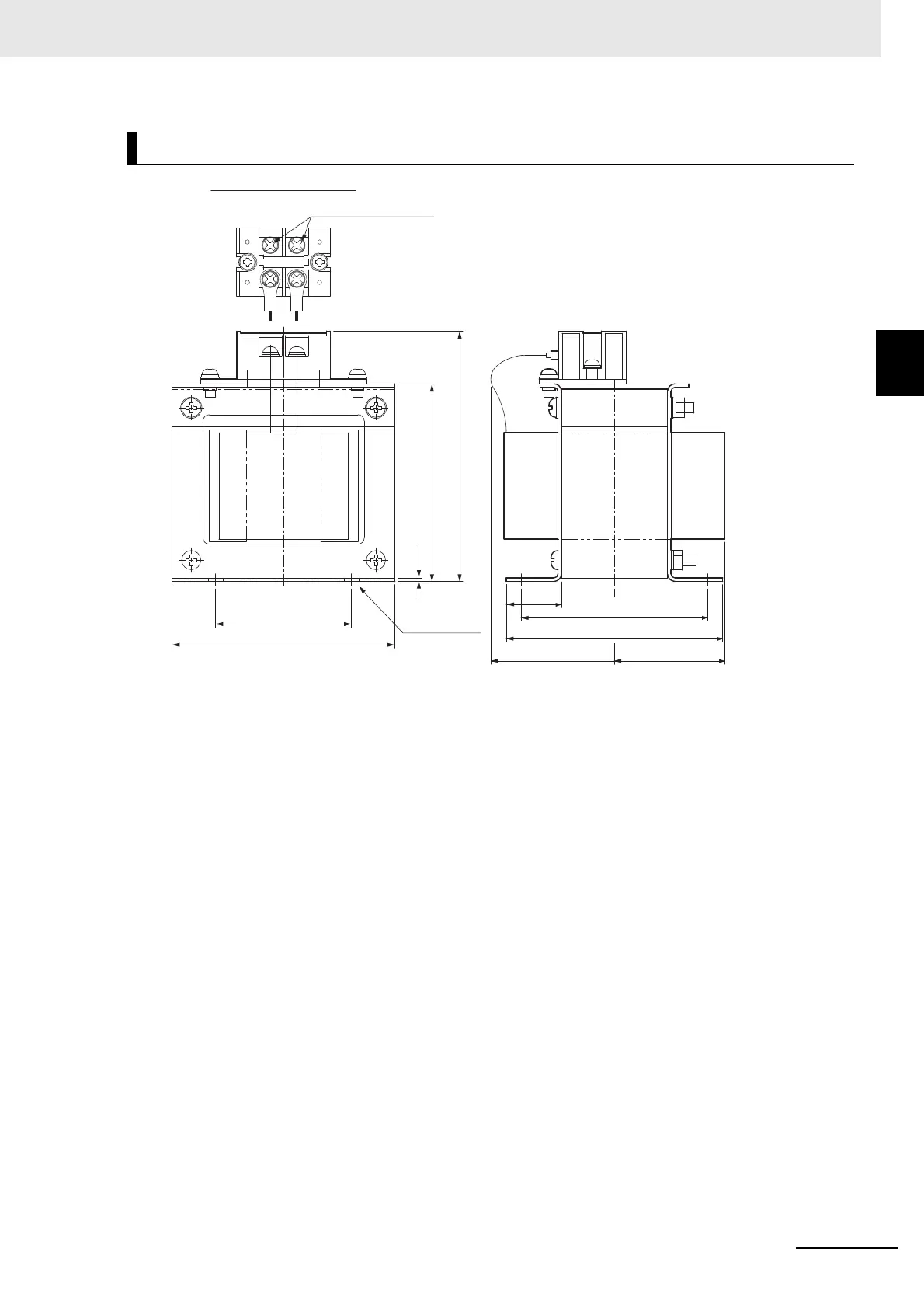

2-4-8 Reactor Dimensions
R88A-PD4037
105
64
93
102
88
(26)
(1.6)
2-terminal M4 screw
Terminal block top view
UX
4-mounting hole
for M6 bolt
120 max.
60 max. 55 max.

Omron R88D-1SN10H-ECT Specifications

General

Series	R88D
Model	R88D-1SN10H-ECT
Rated Output Power	1.0 kW
Input Voltage	Single-phase 200 to 240 VAC
Supply Voltage	200 to 240 VAC
Communication	EtherCAT
Ambient Operating Temperature	0 to 55°C
Ambient Storage Temperature	-20 to 85°C
Type	Servo Drive
Control Method	Torque control, speed control, position control
Protection Functions	Overcurrent, Overvoltage, Undervoltage
Vibration Resistance	4.9 m/s²
Shock Resistance	98 m/s2
