12-3-2 Deceleration Stop Operation at Errors
The deceleration stop function controls the motor and decelerates it to stop if an error that causes the
deceleration stop occurs.
12-3-2 Deceleration Stop Operation at Errors
Related Objects
Index
(hex)
Subindex
(hex)
Name Description
Refer-
ence
605E 00 Fault reaction option
code
Sets the state during deceleration and after
stopping for when an error occurs.
P. A- 4 6
3B21 --- Deceleration Stop Sets the torque for deceleration stop. P. 9-67
01 Torque Sets the torque limit value during deceleration
stop.
P. 9-67

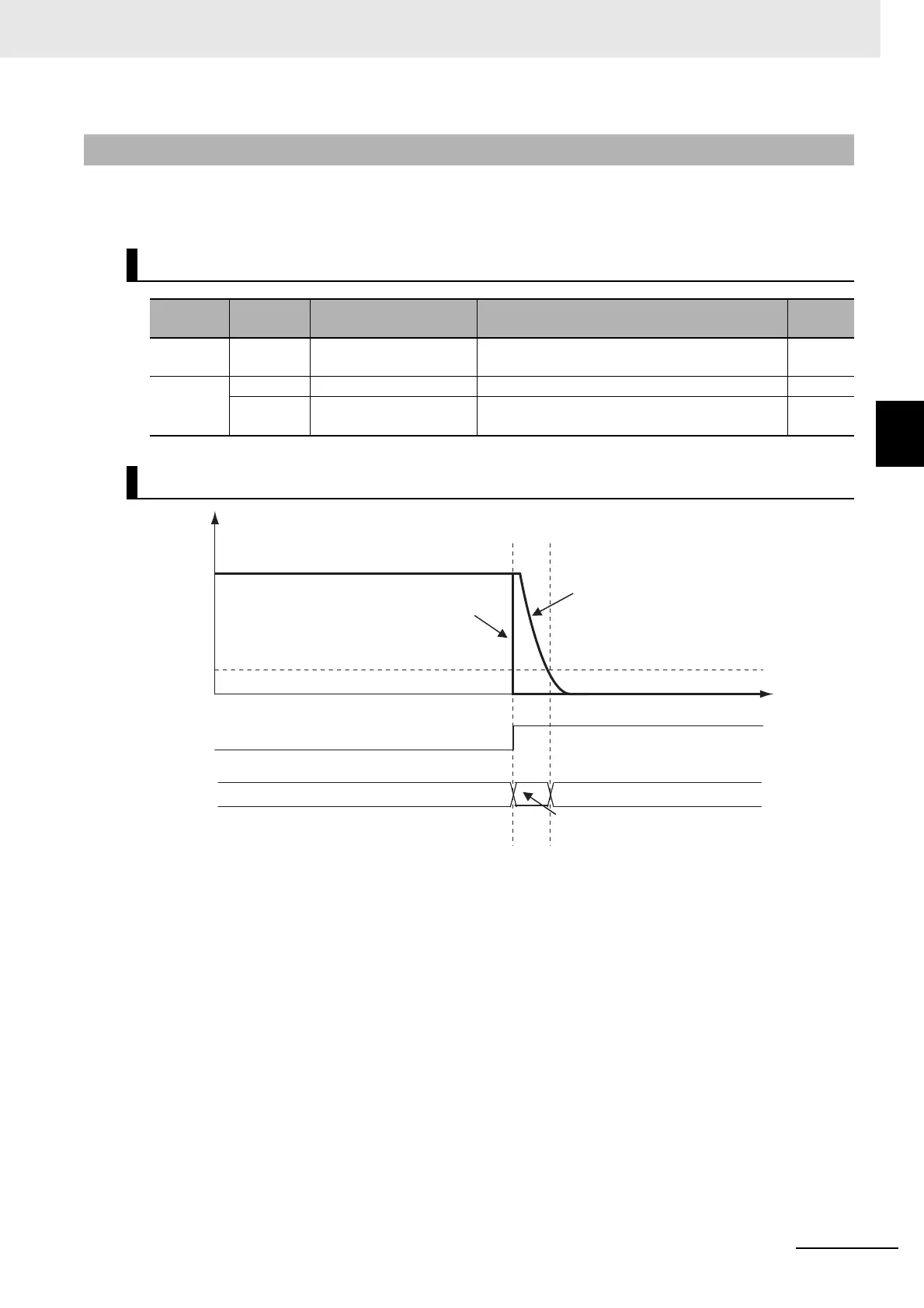

Deceleration Stop Operation
Control
Speed
[r/mn]
Time
Velocity command
Motor speed
Control through host commandsControl through host commands
Error that causes the deceleration stop occurs No error
Error
Speed
determined
as stop
[30 r/min]
Torque control is performed to stop the motor
with Deceleration Stop - Torque (3B21-01 hex
(measure to reduce shock at the time of stop)
