Omron R88D-1SN10H-ECT - Connector Specifications

3 Specifications
3 - 120
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
 Brake Cable
These connectors are used for encoder cables.
Use them when you prepare an encoder cable by yourself.
 Servo Drive Connector
Model
Bend test conditions
Estimated life
Minimum bending
radius [R]
Stroke
R88A-CA1ABF
*1
*1.  represents a number between 003 and 050.
30 mm 500 to 1,000 mm 20 million times
R88A-CA1ABFR
*2
*2.  represents a number between 003 and 020.
30 mm 500 to 1,000 mm 20 million times

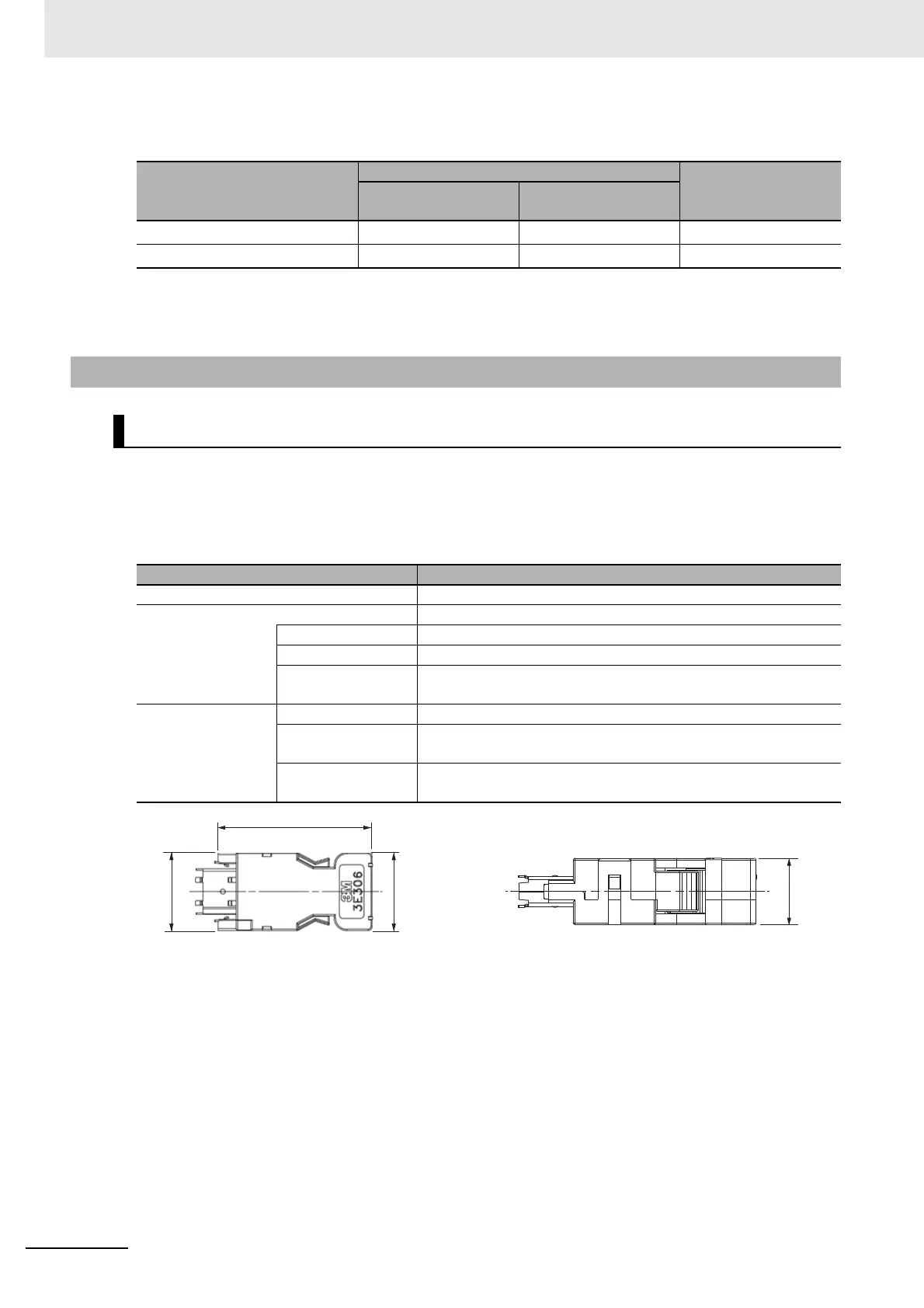

3-4-5 Connector Specifications
Encoder Cable Connectors
Item Specifications
Applicable Servomotor 1S-series Servomotors of all capacities
Connector This is a soldering-type connector.
Receptacle 3E206-0100KV (3M)
Shell kit 3E306-3200-008 (3M)
Receptacle and
shell kit
R88A-CN101R (OMRON)
Applicable cable Applicable wire AWG 18 max.
Insulating cover
outer diameter
2.1 mm dia. max.
Outer diameter of
sheath
5.4 to 7.5 mm dia.
12.0
18.8 18.8
37.4
