4-13
4 System Design
G5 Series AC Servo Drives With Built-in EtherCAT Communications, Linear Motor Type
4-2 Wiring
4

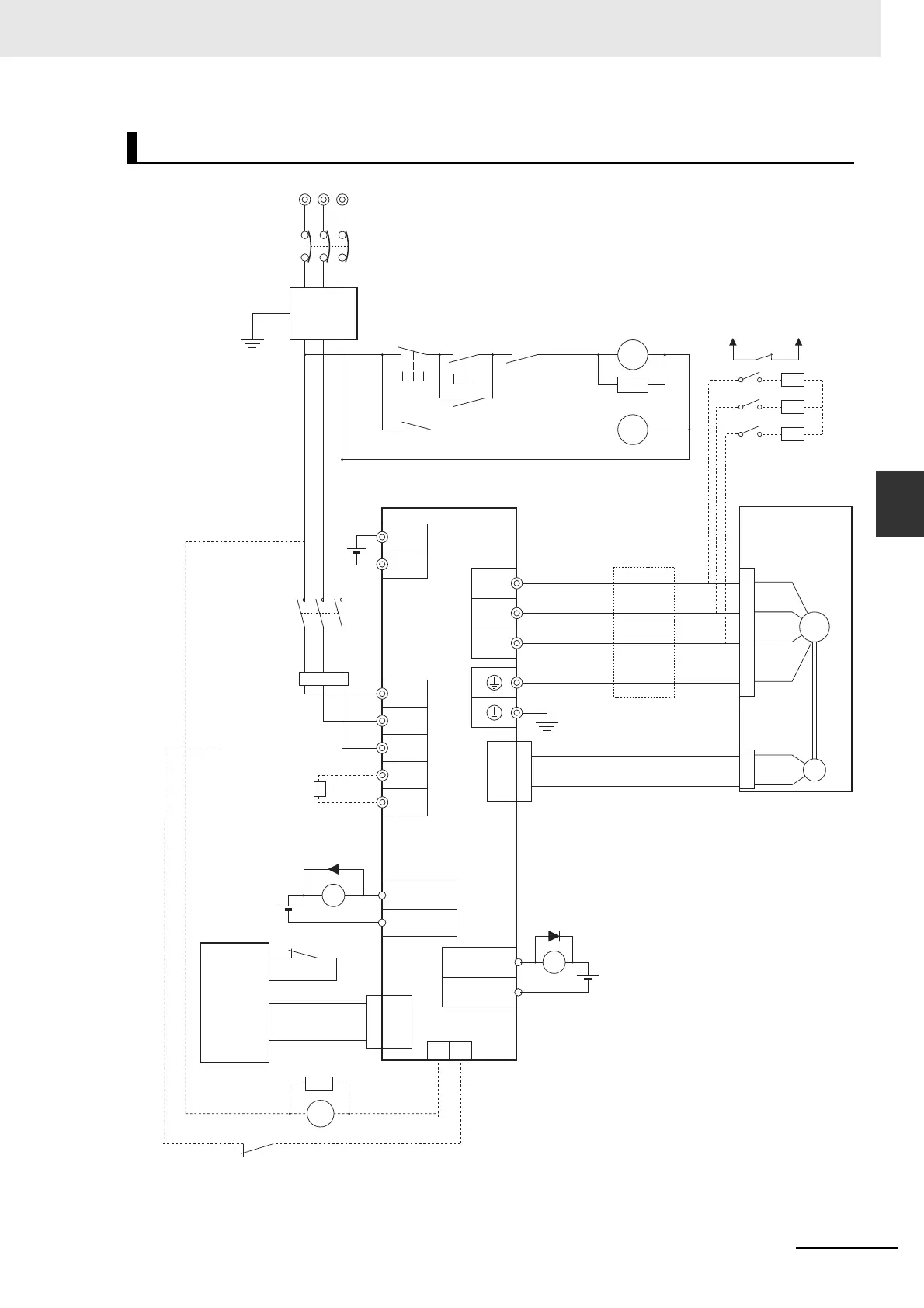

4-2-1 Peripheral Equipment Connection Examples
R88D-KN150F-ECT-L
B1
B2
(*4)
2MC
(*5)
DB1 DB2
(*3)
TB1
TB2
TB1
X
OFF ON X
1MC
2MC
1MC
24 VDC
M
CN4
(*2)
CN1
CN1
X
1MC
X
24 VDC
1
2
BKIR
BKIRCOM
XB
24 VDC
W
V
U
S
24V
0V
L1
L2
L3
ALMCOM
/ALM3
4
CN1
RT
NFB
S
123
456
E
NF
PL
3-phase 380 to 480 VAC, 50/60 Hz
Regeneration
Resistor
Surge suppressor
Power supply
(neutral point)
Reactor
Ground to
10 Ω or less
Main circuit
contactor (*1)
Surge suppressor (*1)
Main circuit
power supply
External Encoder cables
Power cables
*1. A recommended product is listed in 4-3,
Wiring Confirming to EMC Directives.
*2. Recommended relay: MY relay by
OMRON (24-V)
MY2 relay by OMRON can be used for
a rated inductive load of 2 A (24 VDC).
*3. Provide auxiliary contacts to protect the
system with an external sequence so
that a Servo ON state will not occur due
to deposition in the Dynamic Brake
Resistor.
*4. Use an external Dynamic Brake
Resistor of 4.8 Ω, 400 W.
*5. Wire the circuit so that the voltage
between DB1 and DB2 is 400 VAC or
less.
Install an external protective device,
such as a temperature fuse. Monitor the
temperature of the external Dynamic
Brake Resistor.
Control cables
Motor
Servo error display
G5-Series
AC Servo Drive
User-side
control
device
Noise filter (*1)
Ground to
10 Ω or less
